ANTENNA EH 160 mt

The Second Prototype (2)

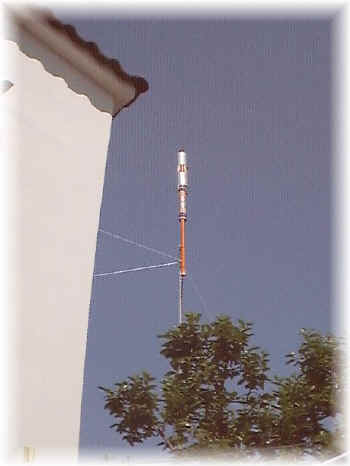

As you can see on the photos, I've mounted the EH in my garden (note that the bottom of the network is 1,5 mt far from the metallic pole).

The EH is about 8 mt from the ground, free for about 300 degrees around;
for 40-50 meters all around it's free, then there are same houses; at 180 degrees there's an higher house, but it's 40 mt far and only 7 mt wide, so it's' a very small obstacle.

The coax goes down parallel to the supporting pole for 8 mt, then arrive in my shack;
totally I've 25 mt of coax cable.

Continue >>>>>

73 de iz7ath, Talino Tribuzio
