ANTENNA EH 160 mt

The First Prototype (1)

As I said, follows a short technical description of the first EH antenna I've built (as I'll explain later, I've built a second one).

At first we make the cylinder, using 10/10 aluminium foil with following measure: 82x37,5 cm;

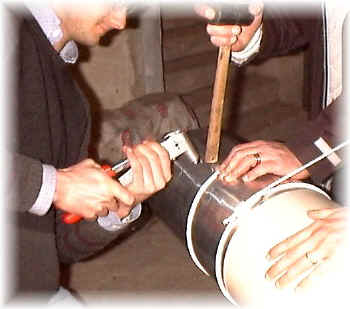

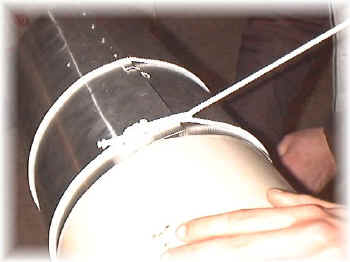

turn it around a 250 mm PVC pipe, make same 3 mm holes every 5 cm and then lock with a rivet;

Now the first cylinder is ready;

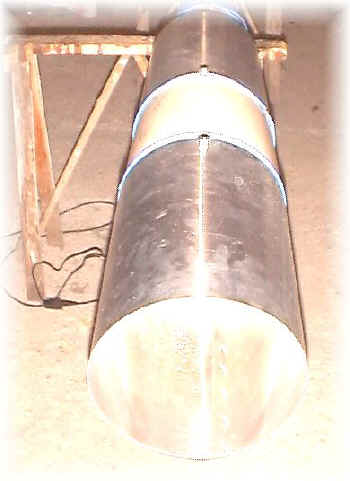

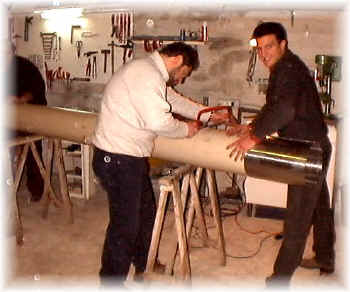

Insert the first cylinder in the 250mm PVC pipe (10 cm) and lock with rivet; now make the second cylinder and cut the 250 mm PVC pipe at 45 cm: you will have a 37,5 cm cylinder + 25 cm space (PVC) and a second 37,5 cylinder

Lock the second cylinder with rivet;

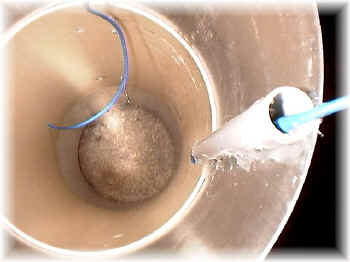

Make 1 turn of wire on each cylinder as in picture;

Cut the wire longer (you will connect there the network,later); the upper "coil" wire will pass in the center while the botton one on the side, near the cylinder.

Continue >>>>>

73 de iz7ath, Talino Tribuzio
