EPROM ERASER
SCHEMATIC

Intro    Schematics  The Timer

That's all needed:

1. an UV-c neon light (type G8T, UV-C ray)(8 watt,30 cm lenght);

2. choke coil (reattore) for the neon;

3. starter for the neon;

4. mammut and cable various (and a switch, if needed);

5. a box;

I don't like very much working with wood so I used an other (easy?) solution:
I've used a inox pipe (diam 80 mm) - 35 cm lenght as box;
Inside, in the upper side take place the UV light, in the lower side the starter and the choke coil (reattore);

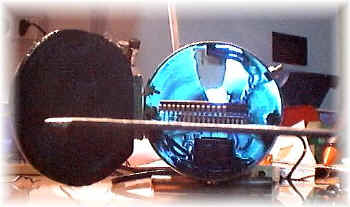

in the middle there's a sliding plain on wich take place the eprom to be erase;

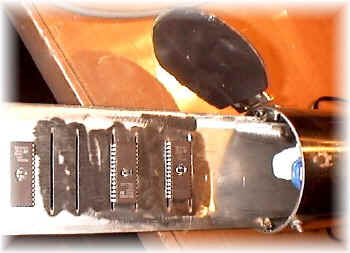

the box is closed by 2 plug (one mounted on hinges);
through a hole the 220V cable enter in the box; externally there's a switch.
That's all: photos are much clear than words.

Continue with Timer

73 de iz7ath, Talino
