Bat detector #2

Design

• Simple design using readily available components.

• Easy to build and set up.

• Light weight suitable for portable operation.

• Low power consumption suitable for battery operation.

• A small and compact design.

Circuit description:

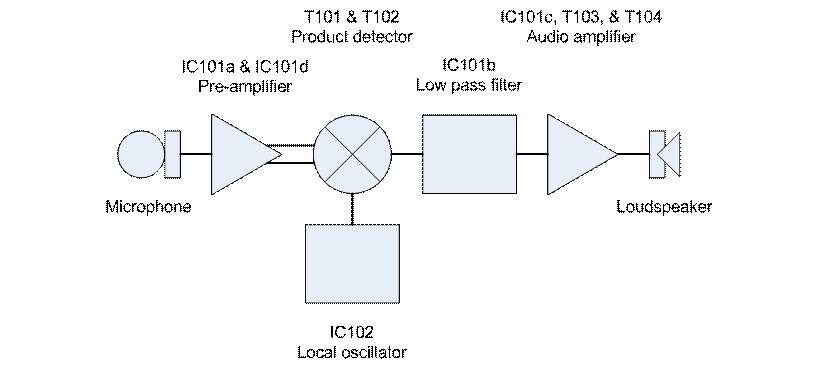

    This design converts the ultrasonic signals received by the microphone, to a lower frequency discernable to the human ear. This is achieved by mixing the amplified  received ultrasonic signal with locally generated signal, the product of which is then further amplified we are able to hear.

    IC1a amplifies the received ultrasonic signal whilst IC1d inverts the amplified received signal, these signals are mixed with the output of the local oscillator IC2 in the product detector T101 & T102, then the output of the product detector passes through a low pass filter IC101b before being further amplified by IC101c whilst T103 & T104 form the audio output stage.

Happy hunting...

        Bat detector #2 main unit schematic:

        Bat detector #2 main unit component placement / layout:

          Bat detector #2 main unit PCB bottom trace:

        Bat detector #2 remote microphone pre-amplifier schematic:

        Bat detector #2 remote microphone pre-amplifier component placement / layout:

        Bat detector #2 remote microphone pre-amplifier PCB bottom trace:

        Bat detector #2 parts listing:

Original Files:

    Further to the details of the pages above - the original CAD files created using EAGLE PCB Design software are included below, along with associated PDF files of both schematics and PCB layouts suitable for printing directly.

    To use the original CAD files, they must be opened with EAGLE. Visit the CADsoft web site for more details, the software (including a freeware version), part libraries, tutorials, for EAGLE are available.

    Bat detector #2 main unit schematic PDF

    Bat detector #2 main unit PCB component layout PDF

    Bat detector #2 main unit PCB bottom track PDF

    Bat detector #2 main unit EAGLE schematic

    Bat detector #2 main unit EAGLE board

    Bat detector #2 remote microphone pre-amplifier schematic PDF

    Bat detector #2 remote microphone pre-amplifier PCB component layout PDF

    Bat detector #2 remote microphone pre-amplifier PCB bottom track PDF

    Bat detector #2 remote microphone pre=amplifier EAGLE schematic

    Bat detector #2 remote microphone pre-amplifier EAGLE board
