FT8 / FT4 Settings for the Yaesu FT-991A



Settings for the Yaesu FTdx101MP   Click Hear for Menu Settings



Downloads



FT8 Program   https://physics.princeton.edu/pulsar/K1JT/wsjtx.html



PSK Reporter

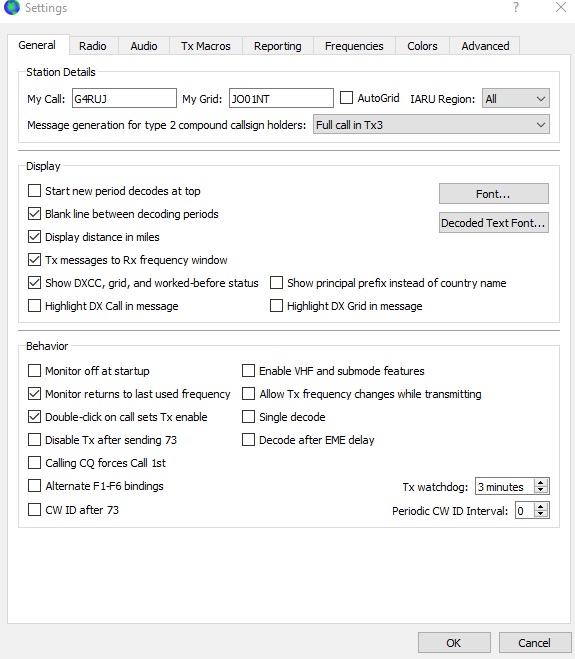

     General Settings for WSJT-X v2.1.2   by K1JT


My Call: Your Call Sign
My Grid Your Locator
Display: Tick boxes 2/3/4/5
 Behaviour
Tick boxes 2/3
 Tx Watchdog 3 minutes


    Radio Settings

Rig: Your Radio
Serial Port: Your COM Port
Set others as required

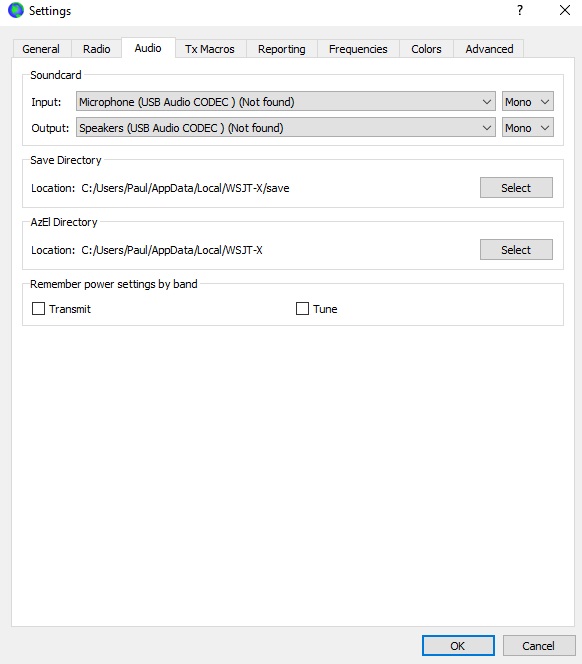

    Audio Settings

Input:: Microphone (USB Audio CODEC)
Output: Speaker (USB Audio CODEC)






    Reporting Settings

Tick Prompt me to log QSO





    Colour Settings
 I find it best and easy just to have these ticket


    Advanced Settings

Tick Two-pass decoding
Change receiver bandwidth to 2500Hz



Yaesu 991A Settings



MENU
31 9600
32 100msec
33 Enable
62 Others
64 1500
65 1500
66 Off
68 Off
70 Rear
71 RTS
72 USB

Filters
Notch Off
Cont Off
DNR Off
DNF Off
Drift 0
Width 3000
DT Gain 18

Mode FM

























FT 8 Screen Shot








FT 4 works the same way but the time between each over
is just 6 seconds so it 2.5 faster than fT8

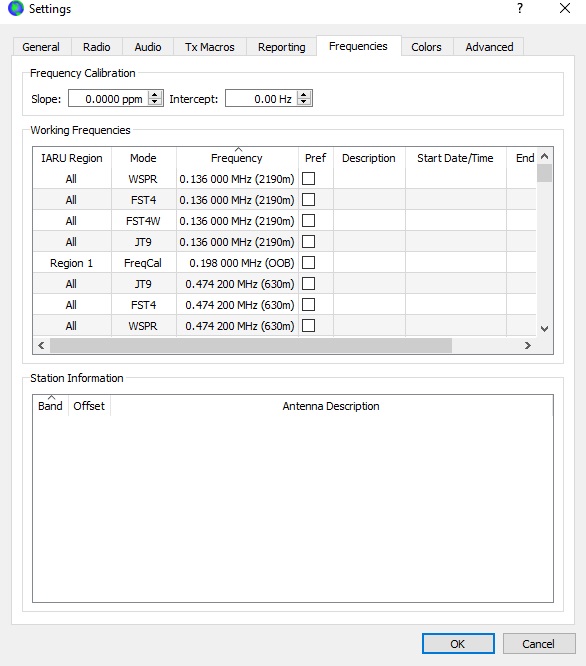

                               The Frequencies FT 8    FT 4 Frequencies
80M    3.5680MHz
80M    3.5750MHz
40M    7.0470MHz
30M    10.1400MHz
20M    14.0740MHz
20M    14.0800MHz
17M    18.1040MHz
15M    21.1400MHz
12M    24.9190MHz
10M    28.1800MHz
