G4RUJ
Yaesu FTdx101MP
Also settings are the same as FTdx101D
| Text in RED set for best Audio using Yaesu M-70 Desk microphone | ||
| Text in Green set for use with MMSSTV / EasyPal / EZ-Pix / FT8 | ||
| Text in Black Bold are the default Settings | ||
| Text in Blue are the settings for use with FT-8 |

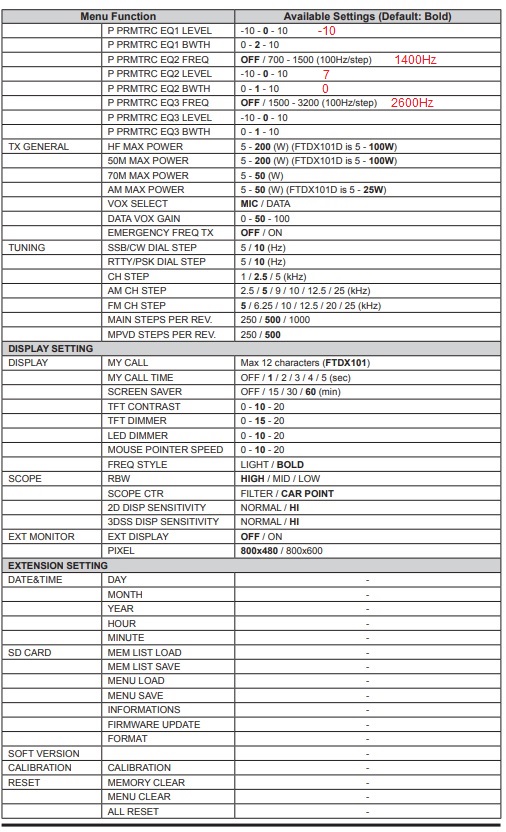

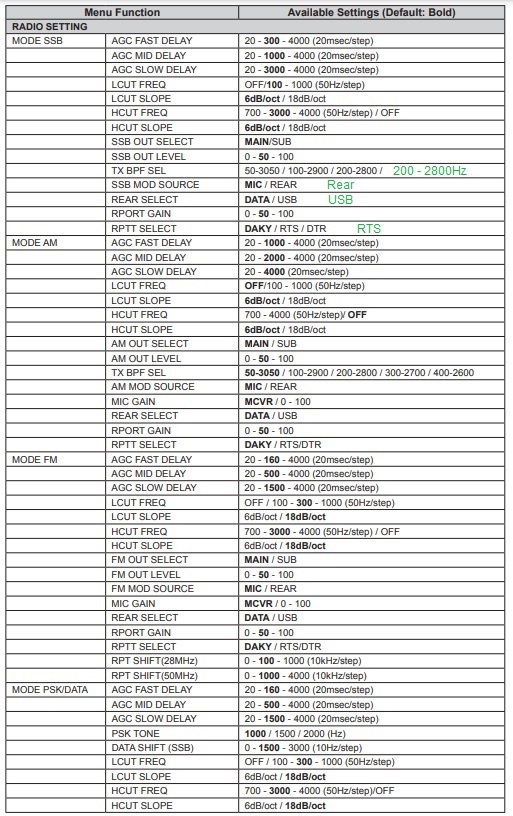

| Above are copy's from Yaesu FTdx101MP Operation Manual pages 84 / 85 / 86 / 87 | ||
|
Setting up the Yaesu FTdx101MP for use with FT-8
FT-8 Settings Download USB Driver (Virtual Com Port Drive (3.51Mb ) from Yaesu.Com
IN THE FT-8 PROGRAM

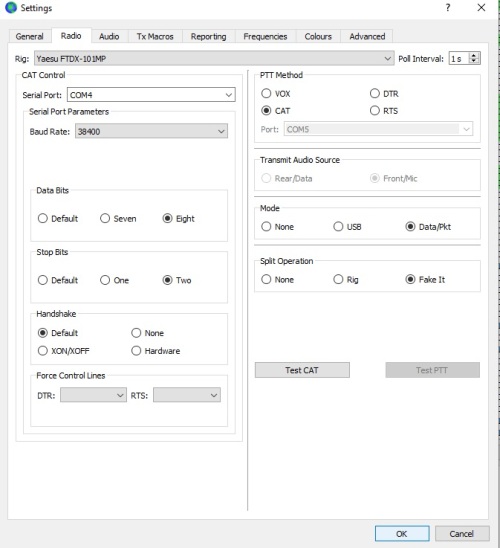

RADIO Rig: Yaesu FTdx101MP COM Port: 4 Baud Rate: 38400 Data Bits: Eight Stop Bits: Two Handshake: Default PTT MethodL CAT Mode: Data/Pkt Split Operation: Fake It

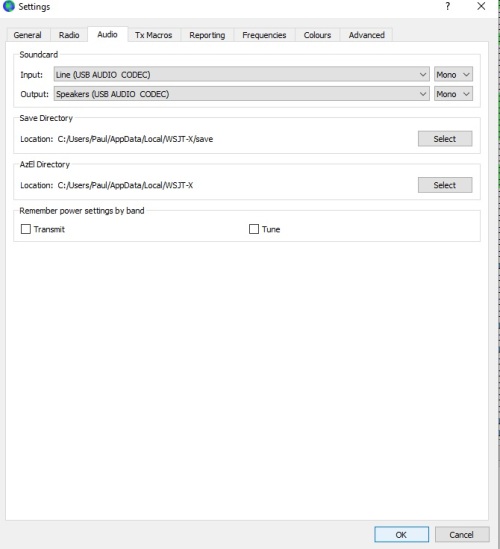

AUDIO Input: Line (USB AUDIO CODEC) Speaker (USB AUDIO CODEC)
YAESU FTDX101MP SETTING
Operation Sett GENERAL CAT Rate: 38400bps
RADIO SETTING
Mode PSK/DATA DATA MOD SOURCE: REAR REAR SELECT: USB You will also need to change the filter to 3kHz The radio will Automatically go to DATA-U Mode |
||
 |
 |
 |

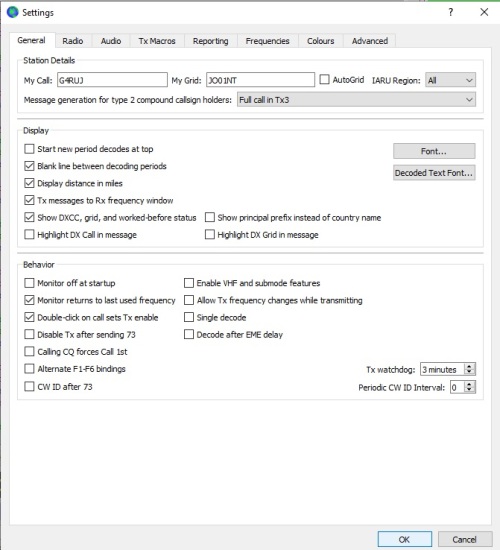

| FT-8 program Settings | ||
| Loading USB drivers | ||
| Switch off the radio and unplug the USB cable | ||
| In the Yaesu website click on FTdx101 D or FTdx101MP | ||
| Click on the Files tab and come down to you see the link below | ||
| FTDX101MP/D USB Driver Virtual COM Port Driver (Windows 11/10) ( 216.45 KB ) | ||
| Once loaded switch the radio on and then plug in the USB lead | ||
| If you look in the Device Manager you should see the two Silicon Lab CP2105 COM Ports | ||
| see image below | ||
.jpg) |
||
 |
||

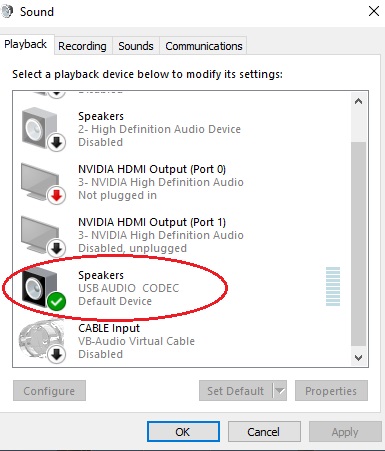

| Speaker USB AUDIO CODE Enable all others should be Disable | ||
 |
||

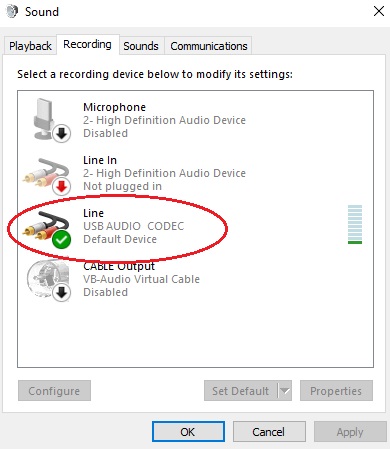

| Line In USB AUDIO CODE Enable all others should be Disable | ||
