GJ0RUZ  2002

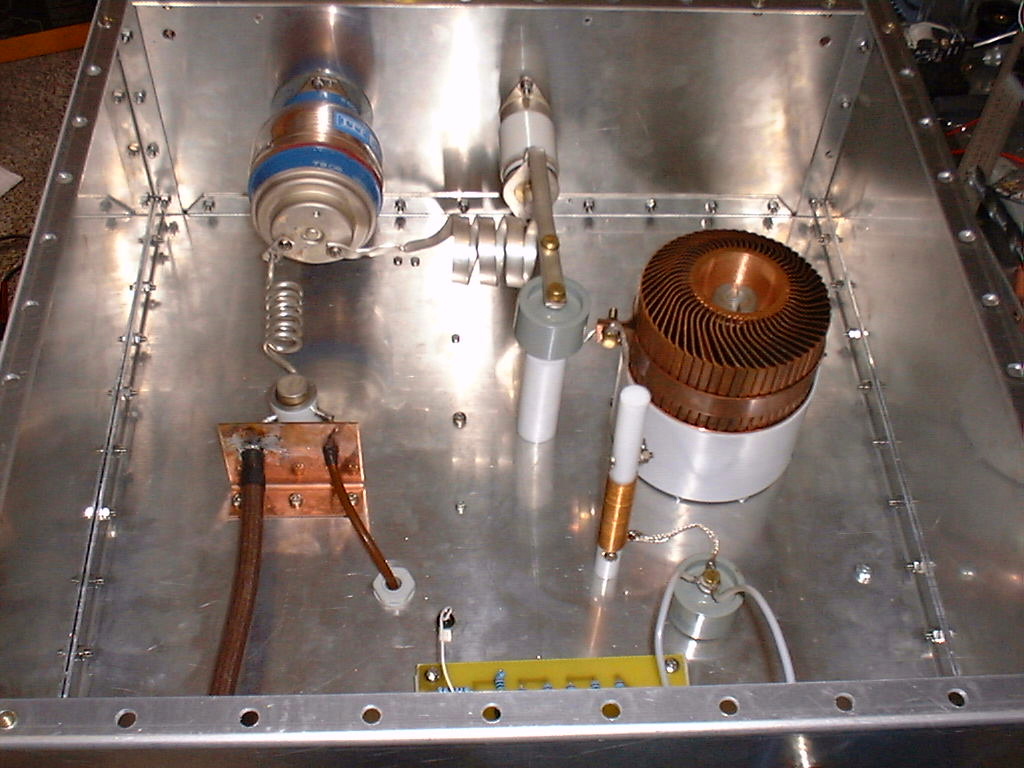

Here is another view of the anode compartment showing the PTFE chimney, this was made from 3mm PTFE sheet rolled to shape and fastened top and bottom with a small nut, bolt and washer.
