Thanks for visiting the GB3DN repeater web
site. The repeater is sited at Stibb Cross, Langtree,
North Devon and comprises of a commercially manufactured
dipole mounted at 34mtrs agl, the highest point of the
mast at a height of 195mtrs asl. The feeder is approx

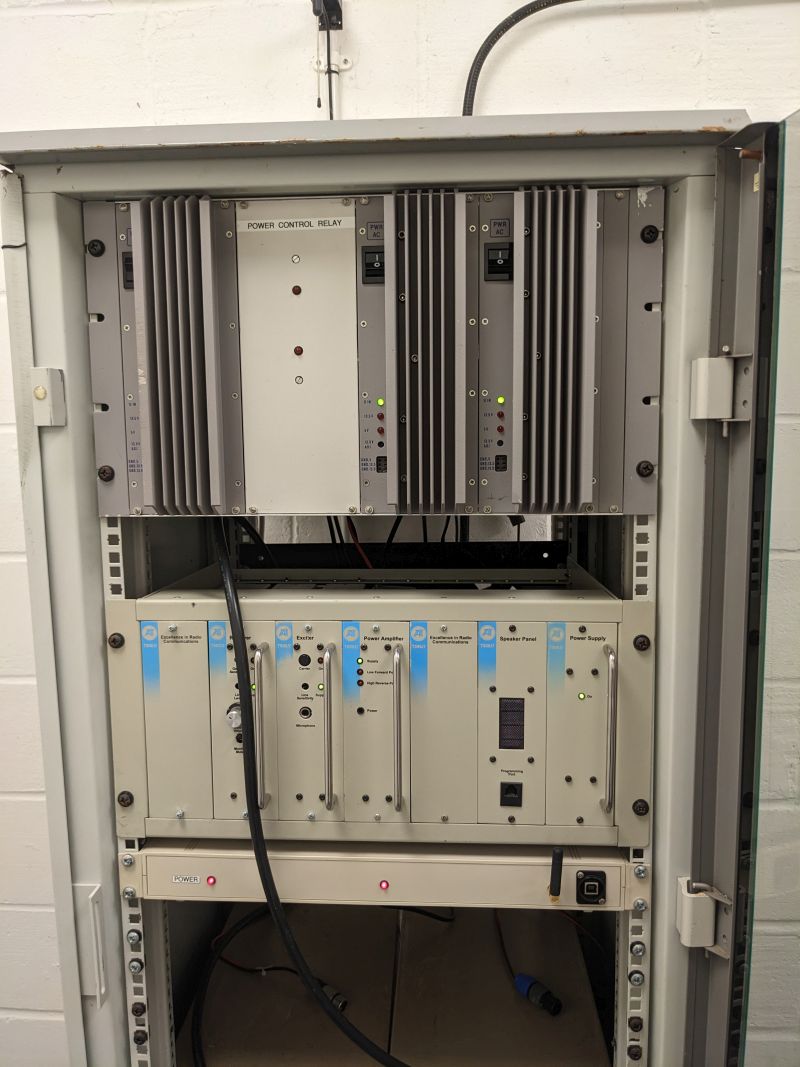

45mtrs of Andrew's LDF450 and the repeater a Tait T300

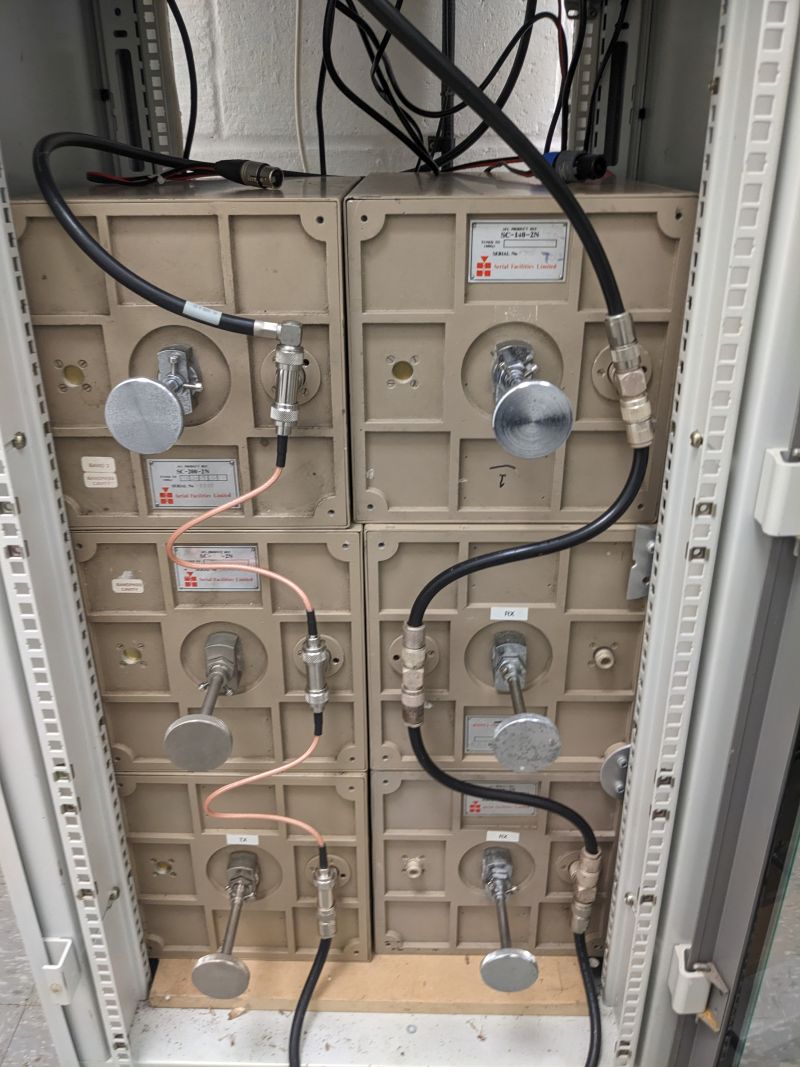

series with custom built logic and home built 6 cavity
duplexer giving over 100db of isolation,
Filters updated in 2023.
The
repeater is on channel RV51 with an Input frequency of
145.0375 Mhz and an output frequency of 145.6375Mhz.
Access is by 77Hz CTCSS followed by 2 seconds of audio.
Time out is currently set at 4.5 minutes.
| | | |
