A.4.1
Sockeltypen
Basing Types

 NamePinsPhJEDEC | IEC
(andere - others)
benutzt
used by
B2A Subminiatur 2 - - ZZ1000
S2A Spezialsockel für Senderöhren
Special Transmitting Tube Base
2 - - TB2/200
S2G Spezialsockel für Senderöhren
Special Transmitting Tube Base
2 - - TB2/500
S2H Spezialsockel für Senderöhren
Special Transmitting Tube Base
2 - - 833A
S2I Spezialsockel für Senderöhren
Special Transmitting Tube Base
2 - - TB3/2000
B3A US PeeWee 3 - - 5583
B3C Subminiatur - linear 3 - - 5783
B3G Subminiatur - linear 3 - - EC53
H3A Europa Stiftsockel
European 3-Contact
3 H - 1832
S3B Spezialsockel
Special Base
3 - - STV150/40Z
S3C Spezialsockel für Senderöhren
Special Transmitting Tube Base
3 - - RS329
S3D Spezialsockel für Senderöhren
Special Transmitting Tube Base
3 - - RS612
S3E Spezialsockel für Senderöhren
Special Transmitting Tube Base
3 - - RS207A
S3F Spezialsockel für Senderöhren
Special Transmitting Tube Base
3 - - SRS358K
S3G Spezialsockel für Senderöhren
Special Transmitting Tube Base
3 - - RS55
S3H Spezialsockel für Senderöhren
Special Transmitting Tube Base
3 - - 592
U3A USA Stiftsockel
US 3-Contact
3 - - 831
A4A Europa Stiftsockel
European 4-Contact
4 A (B4) RE144
B4A USA Stiftsockel
Jumbo 4-Contact
4 - = U4J ceramic base QEP20/18
B4B British 4-Pin Subminiature 4 - - DF51
B4D USA Stiftsockel
Super Jumbo 4-Contact
4 - A4-18 A4-81 5685
B4F USA Stiftsockel
Jumbo 4-Contact
4 - = U4J metal shell 211
B4G Subminiatur - linear 4 - - 5676
B4J Subminiatur - circular 4 - - AC701
S4A Spezialsockel für Senderöhren
Special Transmitting Tube Base
4 - - 7092
S4I Seitenkontakt (Wehrmacht) 4 - - STV100/25ZII
S4J Spezialsockel für Senderöhren
Special Transmitting Tube Base
4 - 4BD (5003B) 750TL
S4P Spezialsockel für Senderöhren
Special Transmitting Tube Base
4 - - QBL4/800
S4R Spezialsockel für Senderöhren
Special Transmitting Tube Base
4 - 4BC (5000B) 152TH
S4T Früher Telefunkensockel
Telefunken 4-Pin
4 - - RE154t
S4U Früher Telefunkensockel mit Bajonett
Telefunken 4-Pin Bayonet
4 - (T1683) RL12T15
S4V Spezialsockel für Senderöhren
Special Transmitting Tube Base
4 - - RV239
U4A USA Stiftsockel
US 4-Contact
4 G A4-10 6A3
U4J USA Stiftsockel
Jumbo 4-Contact
4 - B4F - A4-29 A4-31 211
U4N Alter USA Sockel mit Bajonett
Old US 4-Nub Bayonet
4 - - RE205
U4P US 4-Pin PeeWee 4 - A4-76 6BM6A
W4A Philips Stiftsockel
Philips Big 4-Contact
4 W - 367
B5A Subminiatur - linear 5 - B5A/F DF60
B5B Subminiatur - circular 5 - B5B/F DF65
B5C British 5-Pin Subminiature 5 - - XY1.5
B5D USA Stiftsockel
Giant 5-Contact
5 - = U5G ceramic base with bayonett 803
B5E USA Stiftsockel
Giant 5-Contact
5 - = U5G metal shell 4-125A
B5F USA Stiftsockel
Giant 5-Contact
5 - = U5G glass base 6155
B5J Subminiatur 5 - - 4068
B5L Subminiatur - irregular 5 - - 6K4 5637
O5A Europa Stiftsockel
European 5-Contact
5 O (B5) REN904
P5A Postsockel - Telecom 5 - - Bas
S5B USA Eichelröhre
Acorn Tube
5 - - 9004
S5D Spezial (Wehrmacht) 5 - (T1730) LD2
S5G Telefunken 5-Pin Bayonet 5 - (T1678) RL12P35
U5A USA Stiftsockel
US 5-Contact
5 N A5-11 807
U5G USA Stiftsockel
Giant 5-Contact
5 - - TB3/750
U5H USA Stiftsockel
Super Giant 5-Contact
5 - - TB4/1250
V5A Aussenkontakt 5 V - AB2
B6A Subminiatur - linear 6 - - 5703
B6E Subminiatur 6 - (Russian) 1J17B
B6F Subminiatur 6 - (Russian) 1J37B
B6H Europa Hexodensockel
European 6-Contact
6 B - RENS1374
S6A Seitenkontakt (Wehrmacht) 6 - (T1680) RL12T2
S6B Eichelröhre
Acorn Tube
6 - - 950F
S6F Seitenkontakt (Wehrmacht) 6 - (T1672) RV2P800
S6G Spezialsockel für Senderöhren
Special Transmitting Tube Base
6 - - RS684
S6H Spezialsockel für Senderöhren
Special Transmitting Tube Base
6 - - RS384
U6A USA Stiftsockel
US 5-Contact
6 J - 2A5
B7A Septar 7 - E7-21 832
B7D USA Stiftsockel
Giant 7-Contact
7 - = U7G 813
B7E Subminiatur - linear 7 - - 5702
B7F Subminiatur - linear 7 - - 2G21
B7G Miniatur
7-Pin Miniature
7 - E7-1 EL90
B7J Subminiatur - circular 7 - - ZM1081
B7K Subminiatur 7 - (Russian) 1J29B
B7S Spezialsockel für Senderöhren
Special Transmitting Tube Base
7 - - PB2/200
C7H Europa Hexodensockel
European 7-Contact
7 C - ACH1
M7A Britischer 7-Stiftsockel
British 7-Contact
7 M (B7) AL60
P7A Postsockel - Telecom 7 - - E2c
S7A Spezialsockel für Senderöhren
Special Transmitting Tube Base
7 - - 4CX800A
S7B USA Eichelröhre
Acorn Tube
7 - - 6F4
S7F Spezial (Wehrmacht) 7 - (T1727) LD1
S7G Spezialsockel für Senderöhren
Russian Giant 7-Contact
7 - - GK-71
S7H Spezial (Wehrmacht) 7 - (T1740) LD5
U7A USA Stiftsockel
Small US 7-Contact
7 L - 6A7
U7B USA Stiftsockel
Medium US 7-Contact
7 E - 6A6
U7G USA Stiftsockel
Giant 7-Contact
7 - A7-17 813
B8A Rimlock
8-Pin Miniature
8 - - EL41
B8B Britisch Loctal 8 - - 3B/240M
B8D Subminiatur - circular 8 - B8D/F - E8-9 - E8-10 EC71
B8G Loctal 8 - - ECH71
B8H Neo Eightar Bildröhrensockel
Neo Eightar Base
8 - B7-208
IEC 67-1-31
M38/312W
B8J Subminiatur - circular 8 - (Russian) 6P30B
B8L Spezialsockel für Senderöhren
Special Transmitting Tube Base
8 - - PE05/25
B8P France Telecom
8-Pin Miniature
8 - (Culot P, PTT49 à 8 broches)
F8A [Bab58]
PTT213P
B8S Spezialsockel für Senderöhren
Special Transmitting Tube Base
8 - (T1725) LS50
B8T Spezial (Wehrmacht) 8 - (T1731) LV1
B8U Spezialsockel für Senderöhren
Special Transmitting Tube Base
8 - (B2302) LS4
B8V Spezialsockel für Senderöhren
Special Transmitting Tube Base
8 - (D3219) LV3
F8A France Telecom
8-Pin Miniature
8 - = B8P PTT213P
G8G Gnom 8 - - EAA171
K8A International Octal 8 K - 6L6
K8B British (Mazda) Octal 8 - (B8-MO) SP41
P8A Aussenkontakt
Continental 8-Contact
8 P - AL4
S8B Seitenkontakt (Wehrmacht) 8 - (T1688) RL12P10
Y8A Stahlröhren
German Metal Tubes
8 Y - EL12
B9A Noval
9-Pin Miniature
9 - E9-1 EL84
B9D MagNoval 9 - E9-23 EL500
B9E Novar 9 - E9-65 - E9-89 6JB6
B9G Loctal 9 - - EF50
B9H Britischer 9-Stiftsockel
British 9-Contact
9 - (B9) AC/TP
B9K Subminiatur 9 - (Russian) 1P24B
B9S Spezialsockel für Senderöhren
Special Transmitting Tube Base
9 - - RS1003
B9T Spezial (SupraNoval) 9 - - 6L50
F9J Stiftsockel - CRT 9 FJ - DG10-5
P9A Postsockel - Telecom 9 - - F2a
B10A Spezialsockel für Fotovervielfacher
Special Photomultiplier Tube Base
10 - - GDB-221
B10B Dekal
10-Pin Miniature
10 - - ECL200
B10D Subminiatur - circular 10 - (Russian) 6N21B
B10G Noval+1
10-Pin Miniature with Center Pin
10 - E10-73 6C9
B10V Spezialsockel für Senderöhren
Special Transmitting Tube Base
10 - - EL152
S10A Spezialsockel für Senderöhren
Special Transmitting Tube Base
10 - (C1303) LV4
Y10A Stahlröhren
German Metal Tubes
10 - - EL156
B11G Gnom 11 - - EAA171X
S11A Unidecar - Elevenar 11 - E11-22 - E11-81 8072
B12A Duodekal 12 - B12-43 DG7-31
B12C Compactron - Duodecar 12 - E12-70 (T9) - E12-74 (T12) 6JN6
B12K Nuvistor 12 - E12-64 (5/12) - E12-65 (12/12) 7586
B13B Spezialsockel für Anzeigeröhren
Special Indicator Tube Base
13 - - ZM1020
B13D Subminiatur - circular 13 - - ZM1080
S13A Spezial (Wehrmacht) 13 - - RD12Tf
B14A Diheptal 14 - B12-37 (12/14) DG7-52A
B14C Spezialsockel für Bildröhren - Special CRT Base 14 - - D13-40

Seitenanfang - Top of Page  Absatzanfang - Top of Paragraph  Nächster Absatz - Next Paragraph  Seitenende - End of Page  Inhalt - Table of ContentsStart - Top of Document Nächste Seite - Next Page

A.4.2 Elektroden- und Anschlussbezeichnungen
Electrode and Terminal Designations

a Anode, auch Leuchtschirm bei Abstimmanzeige - Beschleuniger bei Wanderfeldröhre
Anode - plate, target of electron-ray tuning indicator - accelerator of travelling-wave tube
Anode
a1 Anode 1
Plate No.1
Anode n° 1

a2 Anode 2 - Hilfselektrode - Nachbeschleunigungselektrode
Plate No.2 - auxiliary anode - post-acceleration electrode
Anode n° 2

a3 Anode 3
Plate No.3
Anode n° 3

bp Strahlbündelplatten
Beam plates
c Kollektor (Wanderfeldröhre)
Collector (travelling-wave tube)
Cn1 Neutralisationskondensator von der Anode von System I zum Steuergitter von System II
Neutralization capacitor from anode (plate) of unit No.1 to control grid of unit No.2
Cn2 Neutralisationskondensator von der Anode von System II zum Steuergitter von System I
Neutralization capacitor from anode (plate) of unit No.2 to control grid of unit No.1
d Anode des Diodenteils an gemeinsamer Katode
Anode - plate of diode section on common cathode
d1 Anode des ersten Diodenteils an gemeinsamer Katode
Anode - plate of diode section No.1 on common cathode
d2 Anode des zweiten Diodenteils an gemeinsamer Katode
Anode - plate of diode section No.2 on common cathode
f Heizfaden
Filament or heater
f1 Erster Heizfaden im System
First filament or heater section
f2 Zweiter Heizfaden im System
Second filament or heater section
fa Anfang des Heizfadens (bei mehreren Anschlüssen)
Filament or heater start terminal
fe Ende des Heizfadens (bei mehreren Anschlüssen)
Filament or heater end terminal
fm Mittelanzapfung des Heizfadens
Center tap of filament or heater
fx Anzapfung des Heizfadens
Tap of filament or heater
f+ Positiver Heizfadenanschluss
Positive filament terminal
f– Negativer Heizfadenanschluss
Negative filament terminal
g Gitter
Grid
Grille
g1
g1'
Gitter 1 (Steuergitter)
Grid No.1 (control grid)
Grille n° 1

g2 Gitter 2 (Schirmgitter), Ablenksteg bei Abstimmanzeige
Grid No.2 (screen grid), ray-control electrode of electron-ray tuning indicator
Grille n° 2

g2h Horizontaler Ablenksteg bei Doppelbereich-Abstimmanzeige
Horizontal ray-control electrode of dual-range electron-ray tuning indicator
g2v Vertikaler Ablenksteg bei Doppelbereich-Abstimmanzeige
Vertical ray-control electrode of dual-range electron-ray tuning indicator
g3 Gitter 3 (Bremsgitter)
Grid No.3 (suppressor grid)
Grille n° 3

g3.bp
g3.bp'
Gitter 3 als Strahlbündelplatten ausgebildet
Grid No.3 constructed as beam plates
g4 Gitter 4
Grid No.4
g5 Gitter 5
Grid No.5
g6 Gitter 6
Grid No.6
g7 Gitter 7
Grid No.7
h Wendel (Wanderfeldröhre)
Helix (travelling-wave tube)
ic Interne Verbindung
Internal connection
j Brücke
jumper
k Katode
Cathode
m Metallring - äussere Abschirmung - Metallkolben
Base sleeve - external shield - metal shell
n Neutrode
Neutrode - internal screen
nc Keine Verbindung
No connection
p Elektrode zur Aufrechterhaltung der Ionisation in Kaltkatodenröhren
Priming electrode in cold-cathode tubes
pk1 Katodenseitige Ablenkplatte 1
Cathode-side deflecting plate No.1
pk2 Katodenseitige Ablenkplatte 2
Cathode-side deflecting plate No.2
ps1 Schirmseitige Ablenkplatte 1
Screen-side deflecting plate No.1
ps2 Schirmseitige Ablenkplatte 2
Screen-side deflecting plate No.2
res Resonator (Reflexklystron)
Resonator
rfl Reflektor (Reflexklystron)
Reflector
s
s'
Schirmung - Unterer interner Schirm - Isolationswicklung zwischen Heizfaden und Katode
Internal shield - lower internal shield - heater insulation coil
s2 Zweite Schirmung - Oberer interner Schirm
Second internal shield - upper internal shield
- Stift weggelassen
Pin omitted
D Diodenteil
Diode section
E Tetrodenteil
Tetrode section
F Kleinsignalpentodenteil
Small-signal pentode section
H Hexoden- oder Heptodenteil
Hexode or heptode section
I System I
Unit No.1
II System II
Unit No.2
III System III
Unit No.3
IV System IV
Unit No.4
L Leistungspentodenteil
Power pentode section
M Anzeigeteil
Display section of electron-ray tube
P Pentodenteil
Pentode section
Q Leistungstetrodenteil
Power tetrode section
R Interner Widerstand
Internal resistor
T Triodenteil
Triode section

Seitenanfang - Top of Page  Absatzanfang - Top of Paragraph  Nächster Absatz - Next Paragraph  Seitenende - End of Page  Inhalt - Table of ContentsStart - Top of Document Nächste Seite - Next Page

A.4.3 Zählweise der Sockelanschlüsse
Base Pin Numbering

In den Tabellen der Sockelanschlüsse werden die Elektrodenkontakte der Einfachheit halber durchnumeriert. Dabei entspricht die Zählweise derjenigen, die der Hersteller der Röhre benutzt hat, oder einer anerkannten Norm. Für die amerikanischen Sockel sind dies die Darstellungen nach RETMA/EIA. Bei europäischen Röhren wurde die Zählweise von Philips bevorzugt, da für die meisten Sockel Angaben zur Verfügung standen.
Leider konnten sich die europäischen Röhrenhersteller nicht frühzeitig auf eine gemeinsame Normung einigen, so dass bei älteren Sockeltypen gelegentlich unterschiedliche Numerierungen der Stifte anzutreffen sind. Ein Beispiel hierfür sind die Stahlröhrensockel Y8A und Y10A, bei denen die Hersteller Siemens, Telefunken und VALVO/Philips jeweils unterschiedliche Zählweisen verwenden.
    The base connection charts are utilizing a sequential electrode numbering scheme for convenience. Usually the sequence has been given by the manufacturer, or by a recognized standard, like the RETMA/EIA registered bases for American tubes. The European tube base contacts are preferably numbered according to the Philips documents, which have been available to identify most bases with numbers. Unfortunately the European tube manufacturers could not agree on a common standard early, that is why on older base types different numbering schemes can be found occasionally. The German Metal Tube bases Y8A and Y10A are an example for that, where manufacturers like Siemens, Telefunken, and VALVO/Philips are utilizing respectively different pin numbers.

Y8A  Numerierung - Pin Numbering

Philips/Valvo  Siemens  Telefunken
471
582
613
724
835
146
257
368
Rat64 Sie63 Tfk61
Y10A  Numerierung - Pin Numbering

Philips/Valvo  Siemens  Telefunken
691
7102
813
924
1035
146
257
368
479
5810
Rat64   Tfk65

  Anschlussnummern, Bezeichnungen  Terminal Numbers and Designators
1: Sockelanschluss Nr.1 Base terminal no.1
2: Sockelanschluss Nr.2 Base terminal no.2
3: Sockelanschluss Nr.3 Base terminal no.3
4: Sockelanschluss Nr.4 Base terminal no.4
5: Sockelanschluss Nr.5 Base terminal no.5
6: Sockelanschluss Nr.6 Base terminal no.6
7: Sockelanschluss Nr.7 Base terminal no.7
8: Sockelanschluss Nr.8 Base terminal no.8
9: Sockelanschluss Nr.9 Base terminal no.9
10: Sockelanschluss Nr.10 Base terminal no.10
11: Sockelanschluss Nr.11 Base terminal no.11
12: Sockelanschluss Nr.12 Base terminal no.12
13: Sockelanschluss Nr.13 Base terminal no.13
14: Sockelanschluss Nr.14 Base terminal no.14
bottom: Anschluss am kürzeren Teil des Kolbens (Eichelröhre) Terminal on short part of bulb (Acorn Tube)
Zusätzlicher Anschluss am unteren Ende des Kolbens, Sockelstift ausserhalb des normalen Kreises oder als Elekrodenanschluss benutzter Führungsstift aus Metall (Loctal) Additional terminal located near the bottom of the bulb, or terminal outside of the normal pin circle, or metal guiding pin (spigot) used as electrode terminal (Loctal)
shell: Anschluss am Metallgeäuse oder an der metallenen Abschirmung des Sockels Terminal formed by the metall shell or the base sleeve
side: Anschluss an der Kolbenseite oder seitlicher Sockelanschluss Bulb side terminal, side cap
top: Anschluss am längeren Teil des Kolbens (Eichelröhre) Terminal on long part of bulb (Acorn Tube)
Anschluss an der Kolbenspitze, meistens Anoden- oder Gitterkappe Bulb top terminal, top cap
top1: Erster Anschluss an der Kolbenspitze First bulb-top terminal, top cap no.1
top2: Zweiter Anschluss an der Kolbenspitze Second bulb-top terminal, top cap no.2

Seitenanfang - Top of Page  Absatzanfang - Top of Paragraph  Nächster Absatz - Next Paragraph  Seitenende - End of Page  Inhalt - Table of ContentsStart - Top of Document Nächste Seite - Next Page

A.4.4
Trioden
Triodes

A.4.5
Mehrfachtrioden
Multiple Triodes

A.4.6
Tetroden und Pentoden
Tetrodes and Pentodes

A.4.7
Verschiedene Typen
Miscellaneous Types

A.4.8
Sockelbilder
Base Diagrams

A.4.9
RETMA Sockelbezeichner
RETMA Basing Designators

Vorige Seite - Previous Page Seitenanfang - Top of Page Inhalt - Table of Contents Start - Top of Document Nächste Seite - Next Page
previous page next page previous/next

Copyright © 2016Franz Hamberger, Berlin, Germany

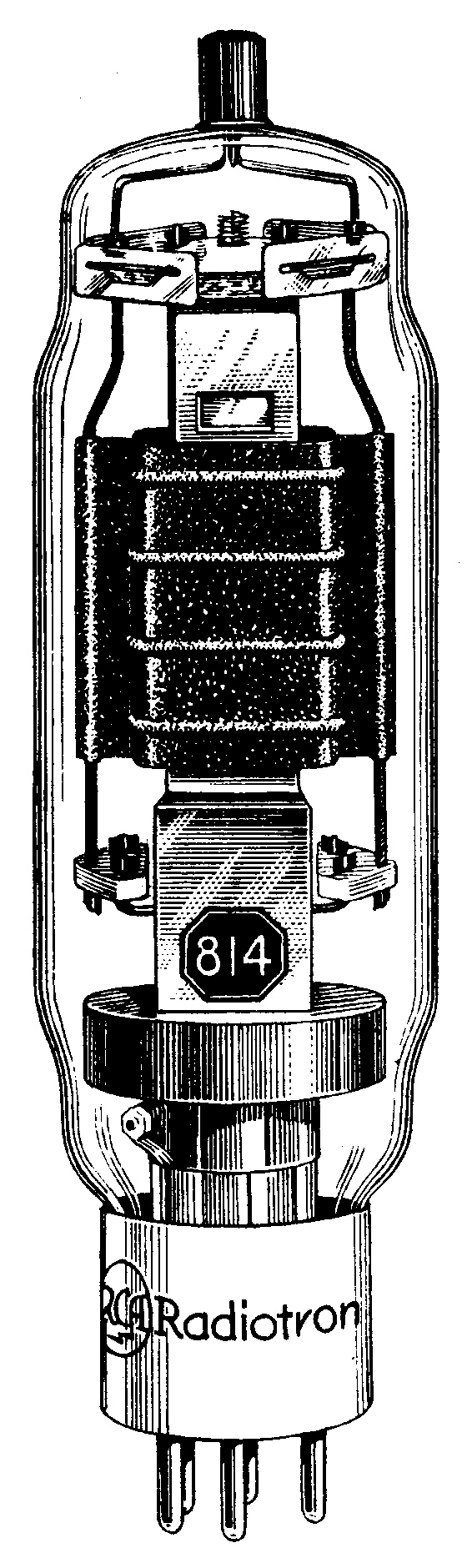

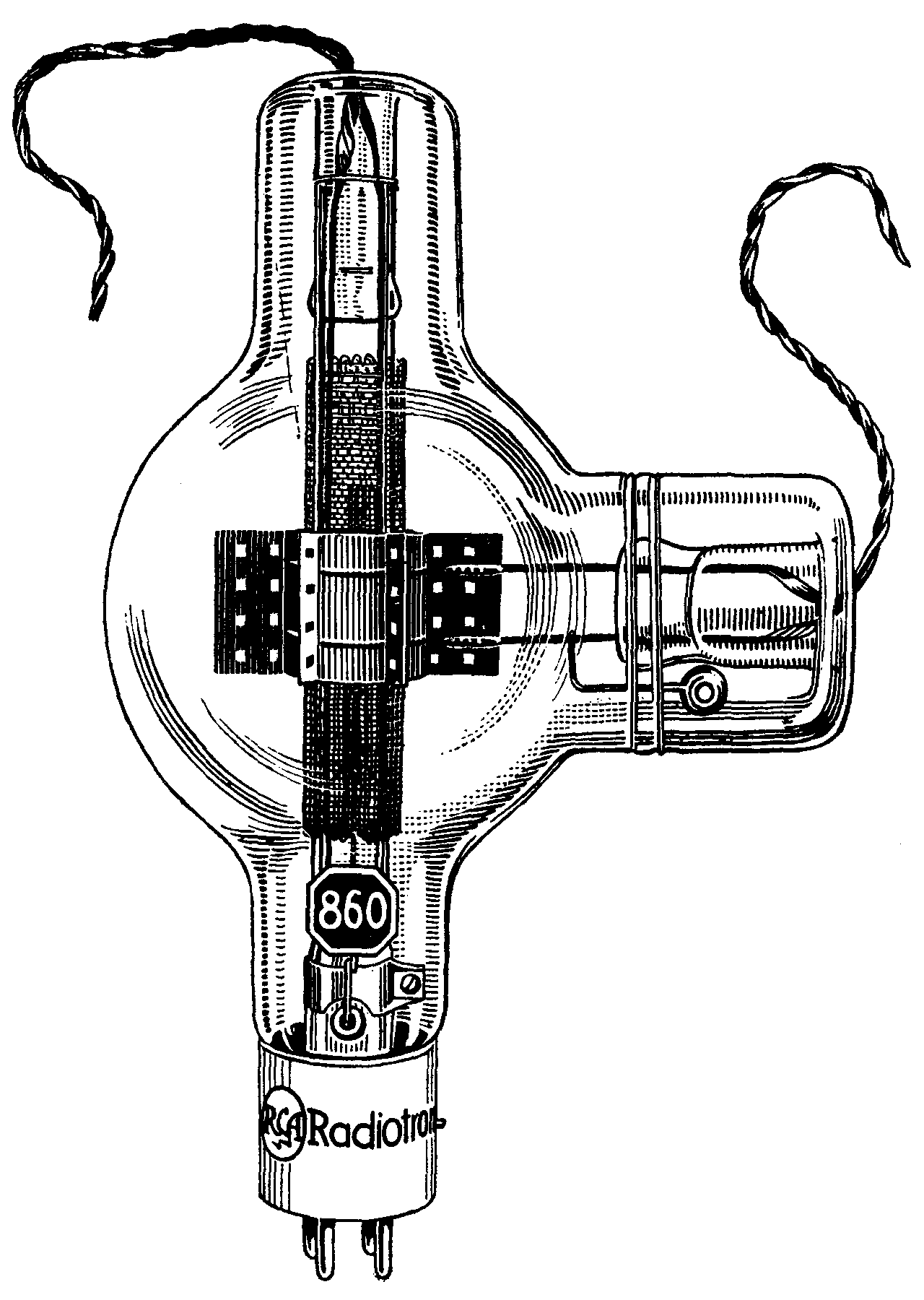

814 860

RCA   814RCA   860
