The Dualband-Moxon-Beam for 17 m and 20 m

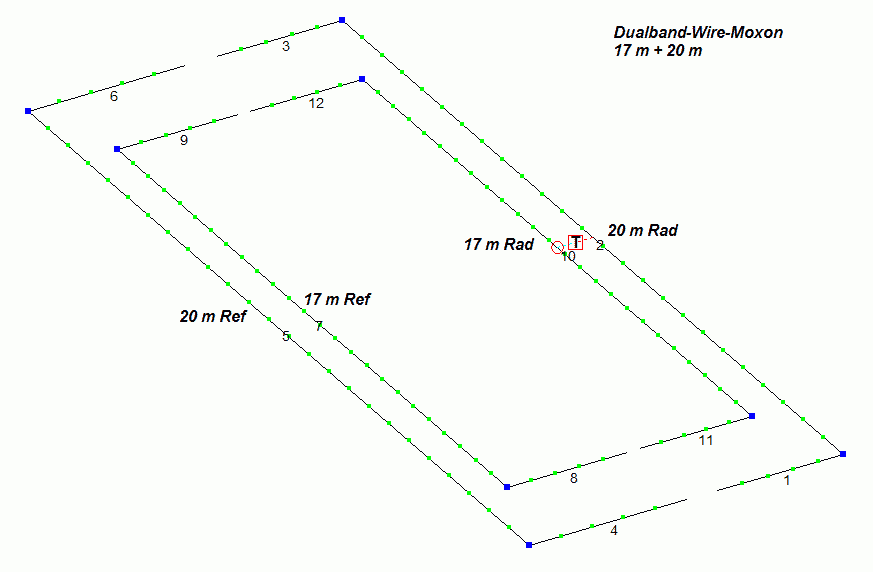

Nested Moxon with wires and one feedpoint.

 17 m 3 dBd, 20 m 3,6 dBd

The antenna is fed with 50-Ohm-coax in the middle part of the 17-m-radiator (wire 10).  The 20-m-radiator (wire 2) is connected with a transmission line. This transmission line is made of 75-Ohm-foam coax (V=0,82).

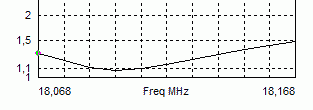

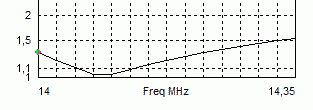

Lengths of the wires (1 mm diameter, not insulated)



Wires 2, 5 1, 3 4, 6 7, 10 11, 12 8, 9
Lengths 7,80 m 1,13 m 1,41 m 6,06 m 1,015 m 1,085 m

Element-Distances

Ref 20 m - Ref 17 m 5-7 0,30 m
Ref 17 m-Rad 17 m 7-10 2,20 m
Rad 17 m-Rad 20 m 10-2 0,32 m
Ref 20 m - Rad 20 m 5-2 2,82 m
