Übersicht Overview |
 |
 |
 |
 |
 |
| 1.8 | Spannungsstabilisatoren Voltage Stabilizers - Neon Valves |
0A3 ... ZZ1050
| Equiv. | Ua | Ik | Base | w | Art - Type = Anwendung - Application | Ref *? | |
|---|---|---|---|---|---|---|---|
| 0A3 | VR75 | 75 | 22.5 | 4AJ ST12 | Gas Diode = Voltage Stabilizer | Tse44 | |
| 0B3 | VR90 | 90 | 17.5 | 4AJ ST12 | Gas Diode = Voltage Stabilizer | Syl54 | |
| 0C3 | VR105 | 105 | 22.5 | 4AJ ST12 | Gas Diode = Voltage Stabilizer | Syl54 | |
| 0D3 | VR150 | 150 | 22.5 | 4AJ ST12 | Gas Diode = Voltage Stabilizer | Syl54 | |
| 70B1 | - | 70 | 10 | 4CN | Gas Diode = Voltage Stabilizer | 4 Mik60 | |
| 75C1 | - | 75 | 30 | 7DU | Gas Diode = Voltage Stabilizer | Val62 | |
| 83A1 | 7980 | 83 | 4.5 | 7DU | Gas Diode = Voltage Reference | Val62 | |
| 85A1 | OE3 | 85 | 4.0 | Lo-3U1 | Gas Diode = Voltage Reference | Val62 | |
| 85A2 | OG3 | 85 | 5.5 | 5BO | Gas Diode = Voltage Reference | Val62 | |
| 90C1 | - | 90 | 20 | 5BO | Gas Diode = >Voltage Stabilizer | Val62 | |
| 90C2 | - | 95 | 15 | Sm-8U1 | Gas Diode = Voltage Stabilizer | 4 Mik60 | |
| 100E1 | - | 100 | 125 | Eu-4U3 | Gas Diode = Voltage Stabilizer | Val62 | |
| 108C1 | OB2 | 108 | 17.5 | 5BO | Gas Diode = Voltage Stabilizer | Val62 | |
| 150A1 | - | 154 | 4.0 | Au-8U1 | Gas Diode = Voltage Stabilizer | Val62 | |
| 150B2 | 6354 | 150 | 10 | 7DU | Gas Diode = Voltage Stabilizer | Val62 | |
| 150C1 | - | 154 | 20 | Au-8U1 | Gas Diode = Voltage Stabilizer | Val62 | |
| 150C2 | OA2 | 150 | 17.5 | 5BO | Gas Diode = Voltage Stabilizer | Val62 | |
| 150C3 | - | 150 | 20 | 4AJ | Gas Diode = Voltage Stabilizer | Mik60 | |
| 874 | - | 90 | 30 | 4S S17 | Glow-Discharge Diode = Voltage Regulator | Rca37 | |
| 4687 | - | 100 | 20 | Au-8U1 | Neon-Filled Diode = Voltage Stabilizer | 71 Mul47 | |
| 5644 | - | 95 | 15 | 4CN U43 | Gas Diode = Voltage Stabilizer | 4 Syl57 | |
| 5651 | - | 87 | 2.5 | 5BO | Gas Diode = Voltage Reference | Val62 | |
| 5783WA | - | 85 | 2.5 | Sm-3U1 U32 | Gas Diode = Voltage Reference | 4 Ray57 | |
| 5787WA | - | 98 | 15 | Sm-3U1 U43 | Gas Diode = Voltage Stabilizer | 4 Ray57 | |
| 5962 | - | 700 | 0.025 | 7EX M47 | Corona-Discharge Diode = High Voltage Regulator | Ray56 | |
| 6073 | OA2WA | 151 | 17.5 | 5BO | Glow-Discharge Diode = Voltage Regulator | 106 Rca51 | |
| 6074 | OB2WA | 108 | 17.5 | 5BO | Glow-Discharge Diode = Voltage Regulator | 106 Rca52 | |
| 6213 | - | 130 | 1.75 | Sm-3U1 U27 | Gas Diode = Voltage Reference | 4 Ray61 | |
| 6308 | - | 87 | 2.5 | 8EX U27 | Gas Diode = Voltage Reference | 4 Syl54 | |
| 6437 | - | 700 | 0.025 | Sm-3U1 U34 | Corona-Discharge Diode = High Voltage Regulator | 4 Ray55 | |
| 6438 | - | 1200 | 0.025 | Sm-3U1 U34 | Corona-Discharge Diode = High Voltage Regulator | 4 Ray55 | |
| 6542 | - | 149 | 15 | Sm-3U1 U45 | Gas Diode = Voltage Regulator | 4 Ray56 | |
| 7475 | - | 100 | 4.0 | Eu-4U3 | Neon-Filled Diode = Voltage Stabilizer | 71 Mul47 Phi48 | |
| 13201 | - | 100 | 100 | Eu-4U3 | Neon-Filled Diode = Voltage Stabilizer | Mul39 | |
| 13201A | - | 96 | 100 | Eu-4U3 | Neon-Filled Diode = Voltage Stabilizer | Mul47 | |
| CK1038 | - | 900 | 0.025 | Sm-3U1 U37 | Corona-Discharge Diode = High Voltage Regulator | 4 Ray55 | |
| CK1055 | - | 150 | 0.15 | Sm-2U1 U27 | Gas Diode = Voltage Regulator | 4 Ray61 | |
| CK1022 | - | 1000 | 0.025 | 7EX M57 | Corona-Discharge Diode = High Voltage Regulator | Ray56 | |
| QS75/20 | CV284 | 75 | 10 | Mi-7U4 | Gas Diode = Single-Gap Voltage Stabiliser | Mar54 | |
| QS83/3 | - | 83 | 3.0 | 5BO M38 | Gas Diode = Single-Gap Voltage Stabiliser | Mar55 | |
| StR75 /60 | (75C1) | 78 | 30 | Mi-7U1C | 7.0 | Gas Diode = Voltage Stabilizer |  Wfb67 |
| StR85 /10 | (85A2) | 85 | 6.0 | Mi-7U1C | 7.0 | Gas Diode = Voltage Reference | Wfb67 |
| StR85 /10-C | - | 85 | 6.0 | Mi-7U2 | Gas Diode = Voltage Reference | Wfb67 | |
| StR90 /40 | 90C1 | 90 | 20 | Mi-7U1C | 7.0 | Gas Diode = Voltage Stabilizer | Wfb67 |
| StR100 /60 | - | 102 | 35 | 5BO | 8.0 | Gas Diode = Voltage Stabilizer | Wfb67 |
| StR100 /80 | - | 101 | 45 | No-9U1 | 17.5 | Gas Diode = >Voltage Stabilizer | Wfb67 |
| StR108 /30 | 108C1 | 108 | 17.5 | 5BO | 10 | Gas Diode = Voltage Stabilizer | Wfb67 |
| StR125 /60 | - | 125 | 35 | 5BO | 10 | Gas Diode = Voltage Stabilizer | Wfb67 |
| StR150 /15 | (150B2) | 150 | 10 | Mi-7U3 | 7.0 | Gas Diode = Voltage Reference | Wfb67 |
| StR150 /30 | 150C2 | 150 | 17.5 | 5BO | 10 | Gas Diode = Voltage Stabilizer | Wfb67 |
| StR150 /60 | - | 150 | 35 | 5BO | 10 | Gas Diode = Voltage Stabilizer | Wfb67 |
| STV85 /10 | OG3 | 85 | 5.5 | 5BO | 10 | Gas Diode = Voltage Reference | Tfk64 |
| STV100 /25ZII | - | 101 | 15 | Sk-4V1 | 20 | Gas Diode with Auxiliary Electrode = Voltage Stabilizer | Tfk64 |
| Stv100 /40z | OSW 3811 | 103 | 25 | Sk-4V1 | Gas Diode with Auxiliary Electrode = Voltage Stabilizer | Mik60 | |
| STV108 /30 | OB2 | 108 | 17.5 | 5BO | 13 | Gas Diode = Voltage Stabilizer | Tfk64 |
| STV150 /30 | OA2 | 150 | 17.5 | 5BO | 13 | Gas Diode = Voltage Stabilizer | Tfk64 |
| STV150 /40Z | OSW 3804 | 150 | 25 | Sp-3V3 | Gas Diode with Auxiliary Electrode = Voltage Stabilizer | Mik60 | |
| STV150 /60 | - | 150 | 35 | Sp-3U2 | 40 | Gas Diode = Voltage Stabilizer | Tfk64 |
| ZZ1000 | 8228 | 82 | 2.0 | Sm-2U1 | Gas Diode = Voltage Reference | 3 4 Val62 | |
| ZZ1010 | - | 81.8 | 5.0 | Mi-7V1 | 10 | Gas Diode with Auxiliary Electrode = Voltage Stabilizer | Tfk67 |
| ZZ1020 | STV85/8 | 82.2 | 3.0 | Sm-3V1 | <2.0 | Gas Diode with Auxiliary Electrode = Voltage Stabilizer - Reference | 4 147 Tfk67 |
| ZZ1030 | STV500 /0,1 | 125 | 0.1 | No-9 UUUU1 | <11 | Quad Gas Diode = Voltage Stabilizer | Tfk67 |
| ZZ1040 | STV100 /60Z | 100 | 35 | Mn-9V1 | <22 | Gas Diode with Auxiliary Electrode = Voltage Stabilizer | Tfk67 |
| ZZ1050 | SR4 | 85 | 2.5 | Sm-2U1 | Gas Diode = Voltage Reference | 4 Rtt94 | |
| V | mA | g | |||||
|
|
|
|
|
 |
 |
|---|---|

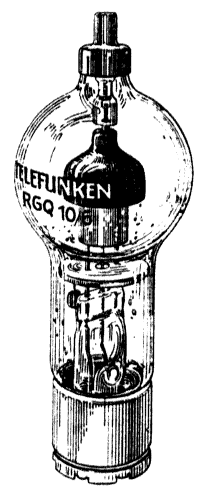

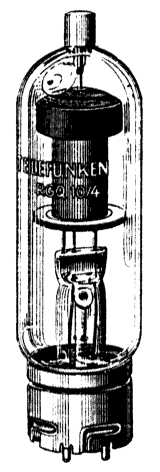

| Telefunken RGQ10/4 | Telefunken RGQ10/6 |
