Antenna Page
|
     I must admit.. one of my early fascinations about ham radio was with antennas. I remember making a 6 meter loop and running my IC-706 in my Brookfield, Illinois home on a 60 foot wide lot. Can you say "Hello neighbor"? Try six meters on a homemade loop antenna on the porch at about gutter height. I worked some NJ some Texas and Florida as I recall. I also learned my first lesson about RFI. My solution was to move to a 5 acre lot in the next state. Sort of.... Here you'll see the antennas, permanent and temporary that I've used both at home and on trips.


           |

 |

            | |
|

  |

     Antennas @ AE9B  |
  ||||
| Beam Antennas |

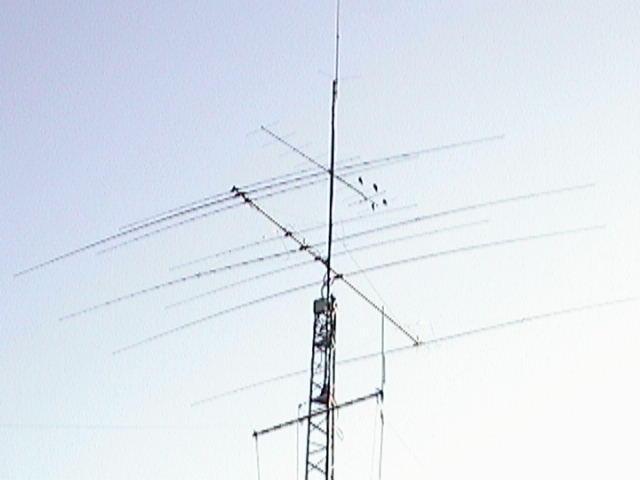

     Force 12 C4SXL  |

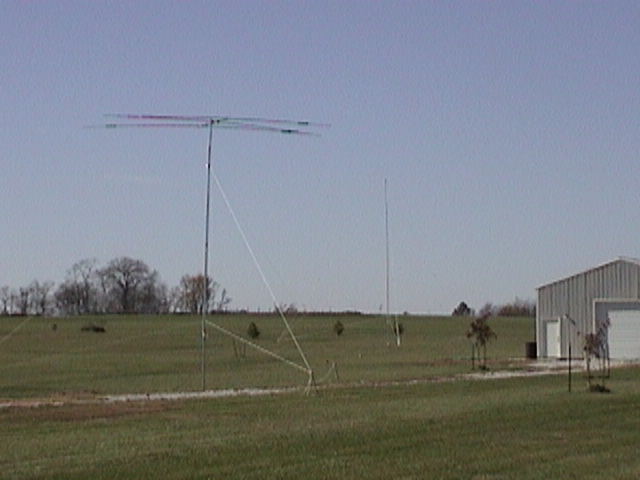

    ![]() Wilson Tribander  |


    ![]() 4 El 20M  |


    ![]() 10 EL 2 M  |

 Cushcraft 10S  |

| Fixed Antennas |

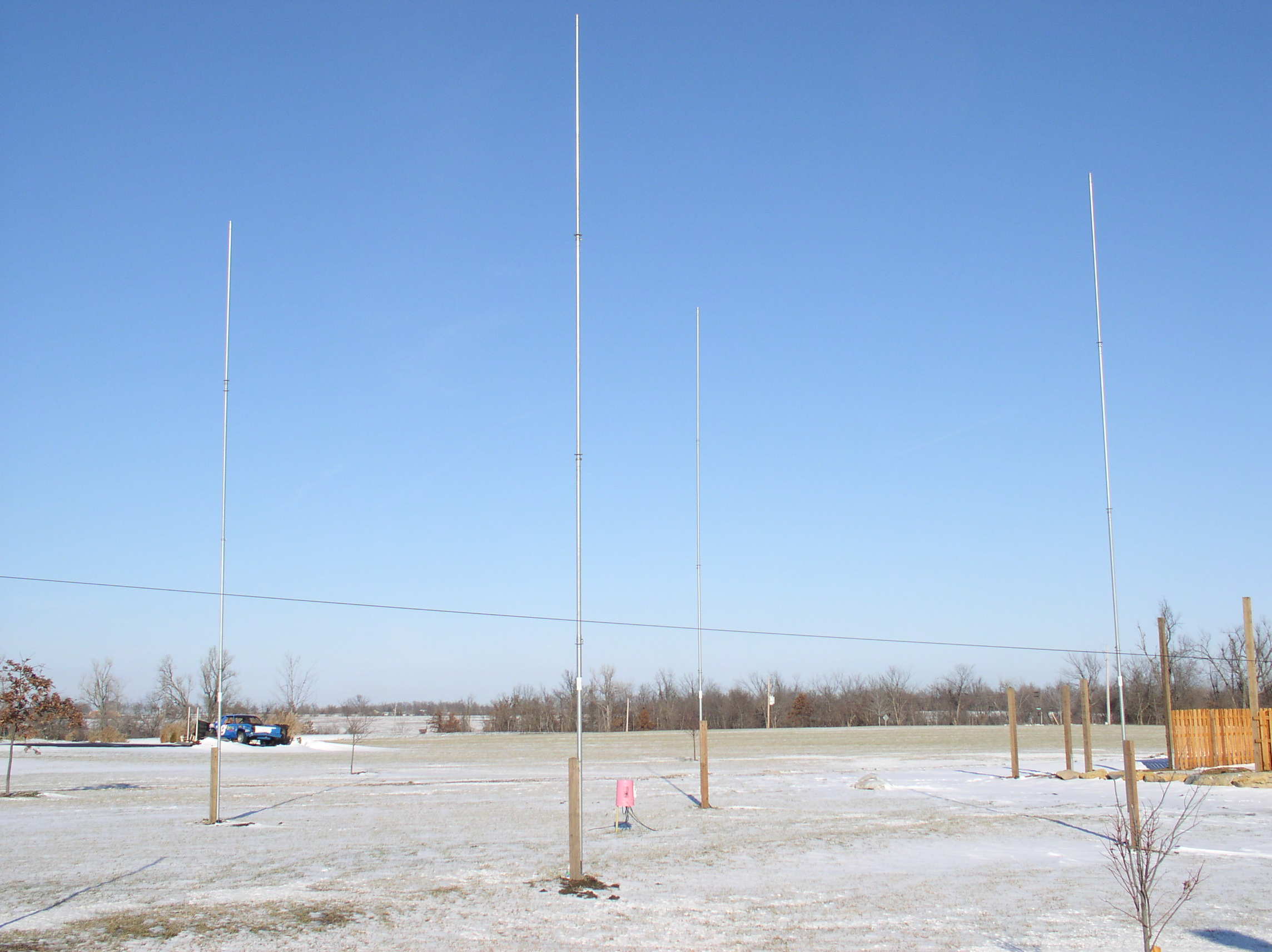

     40M 4 Square  |


    ![]() 160M 1/4 Wave Vertical  |

    ![]() Top loaded 80M/160M Vertical  |


    ![]() 80M Phased Pair  |


    ![]() GP-9  |

| Listening Antennas |

    ![]() Single wire Beverage
  |

     Two Wire Beverage  |
    K9AY Loop | Flag | |
