Hallicrafters SX-16, ca. 1937-1938

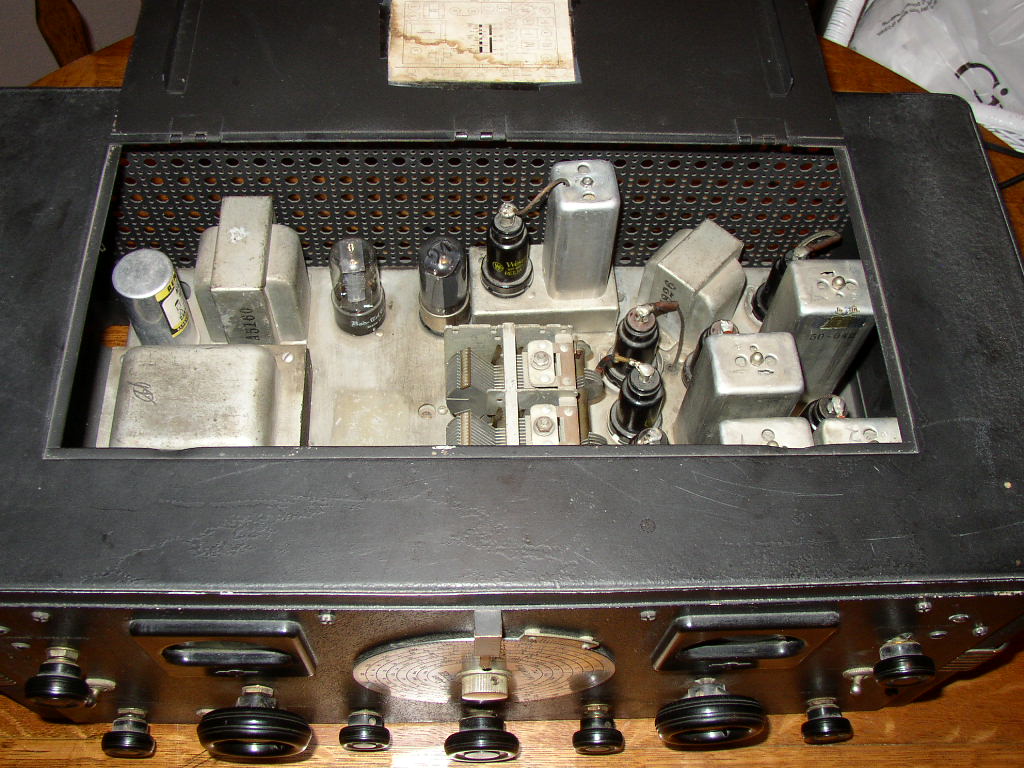

The SX-16 is an 11 tube communications receiver covering 6 bands from 0.55 Mhz to 60 Mhz. It has an IF of 465 khz and has a crystal filter. It is perhaps my favorite radio in the collection. Its push-pull 6V6s in the audio sound GREAT!

Tube lineup: 6K7 RF, 6L7 mixer, 6J5 HFO, 2 6K7 IF, 6R7 det/avc/af1, 6J7 BFO, 6J7 meter amp, 2 6V6 p/p audio out, 5Z3 recifier.
