Iain VK5ZD's microwave displays at the WIA AGM in Handorf, South Australia, 2017

Iain VK5ZD microwave equipment for demonstration at the WIA AGM in Hahndorf on 20th May 2017 and
at the Open Day at Hahndorf Oval on 21st May 2017, working David VK5KK on all microwave bands,
1296MHz through 47GHz



1. Iain giving presentation at the WIA AGM, David VK5KK was remote video link at Mt.Lofty

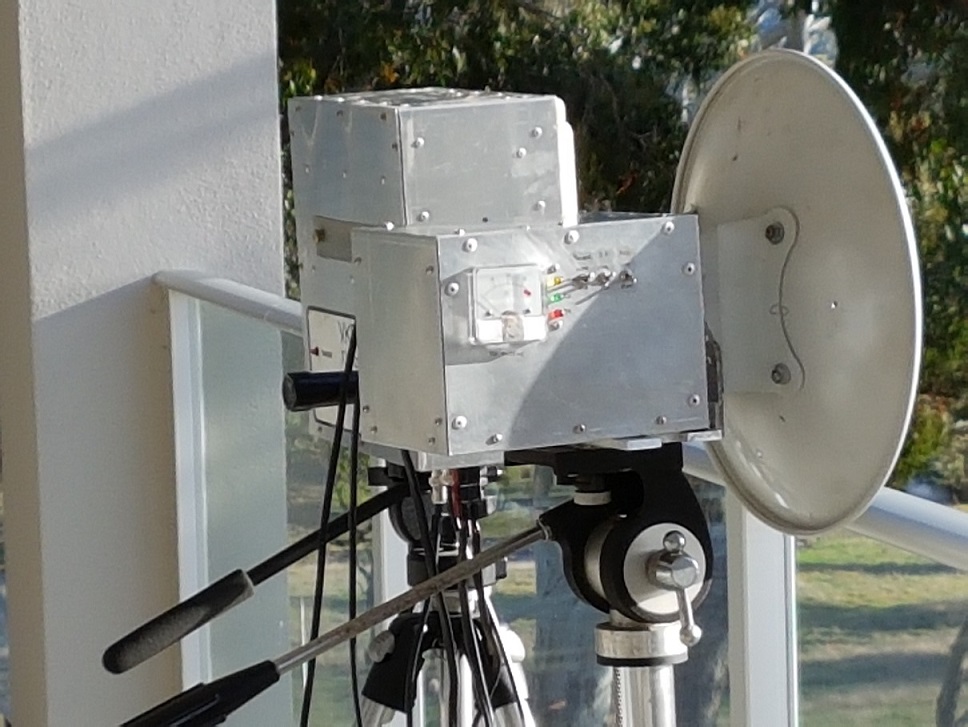

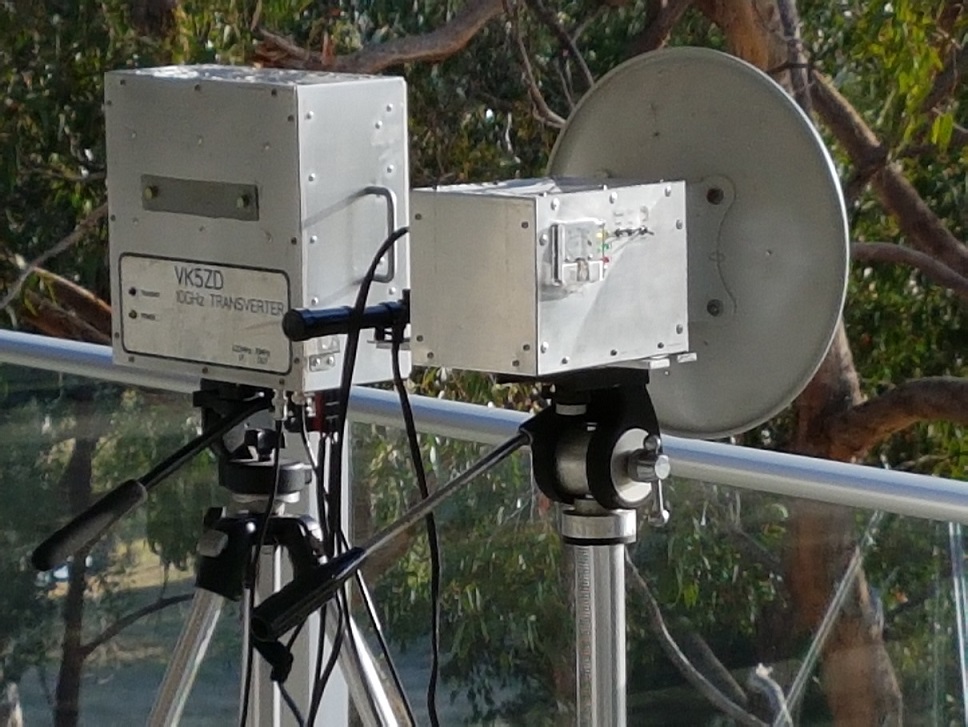

2. 10GHz (3cm) transverter and 24Ghz (1.25cm) transverter



3. 10GHz (3cm) transverter and 24Ghz (1.25cm) transverter



4. 10GHz (3cm) transverter and 24Ghz (1.25cm) transverter



5. 10GHz (3cm) transverter and 24Ghz (1.25cm) transverter



6. 10GHz (3cm) transverter and 24Ghz (1.25cm) transverter

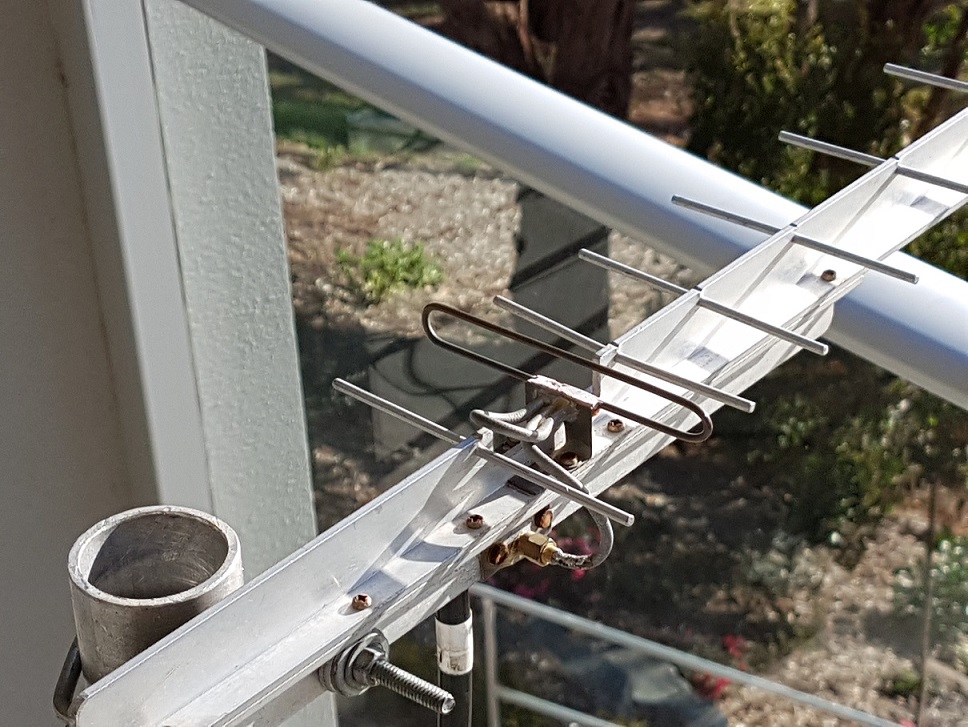

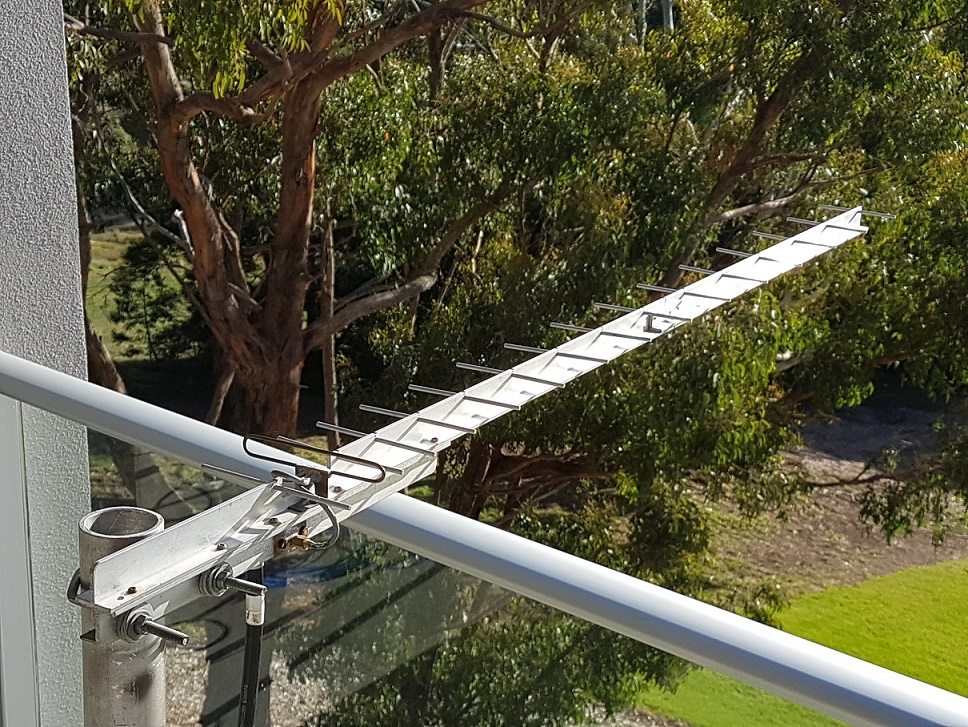

7. 1.296GHz (23cm) yagi



8. 1296 MHz (23cm) yagi



9. 1.296GHz (23cm) yagi

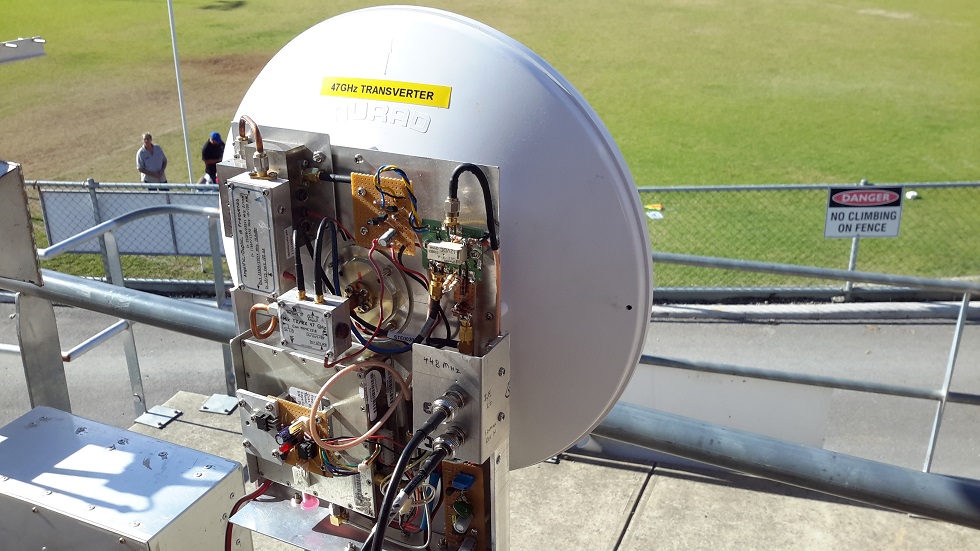

10. 47GHz (630mm) transverter



11. 10GHz (3cm) transverter



12. 24Ghz (1.25cm) transverter

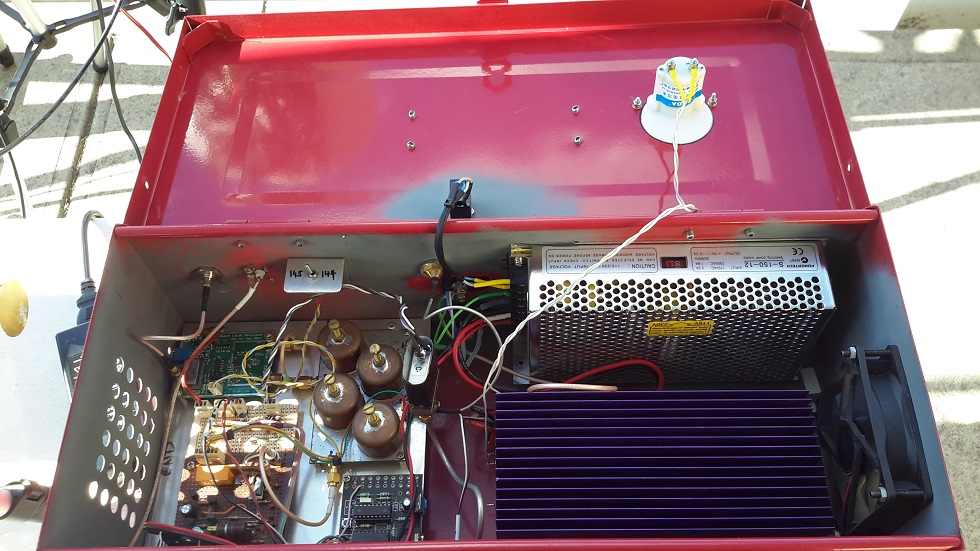

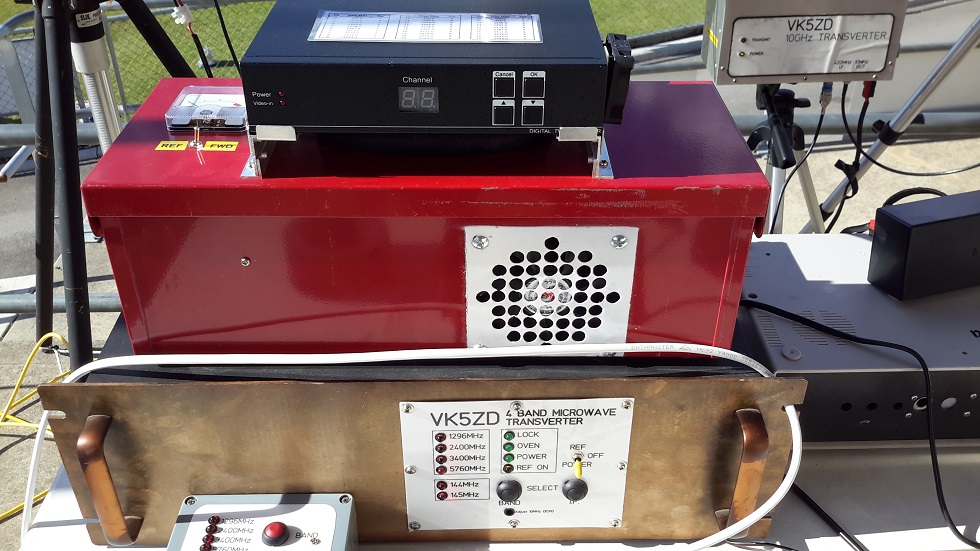

13. four band Transverter



14. four band Transverter



15. overview of setup

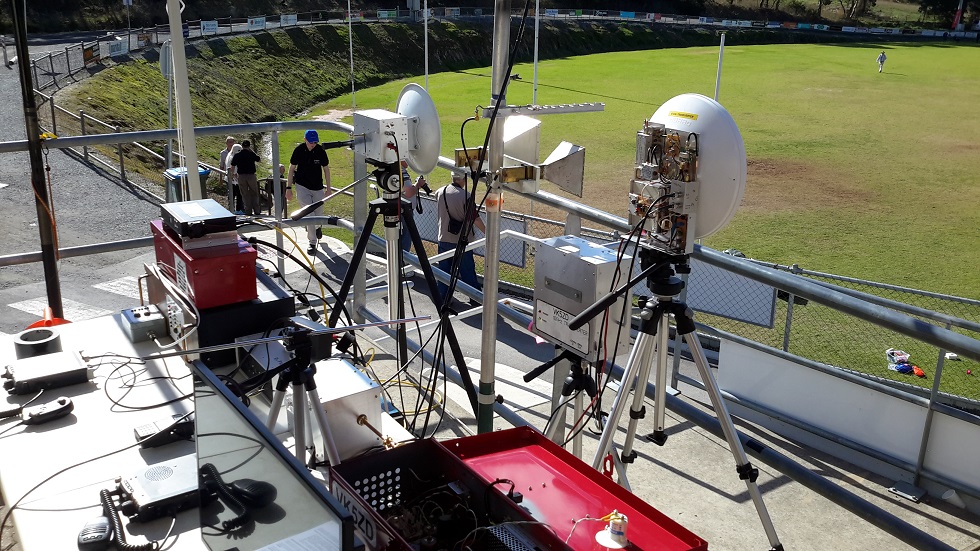

16. overview of setup, 47GHz dish, 24GHz dish, 10GHz panel, 3.4GHz and 5.76GHz horns, 2.4GHz yagi and top is 1296MHz yagi



17. 47GHz (630mm) transverter



18. four band Transverter



19. 3.4GHz horn and 5.76GHz horn
