Receive LNA

Some various low cost LNA's available on ebay for VHF, UHF and SHF usage.

2GHz Receive LNA


Specification: Gain: 32dB supply voltage: 12V DC (Current 35mA) with shielded enclosure Input Output Impedance: 50 Ohm Maximum output power: 10dBm(2V PP\50Ohm load) Input signal: =-22dBM(>-22 dBM creates distortion) Bandwidth: 1MHz to 2GHz (gain is different under different frequency, please refer to the curve of S21 indicators) Noise factor: 2dB (0.5 GHz case measurement) Other: reduce the supply voltage to vary the gain. Size: approx. 50 x 70 x 12mm (L*W*H) 3GHz Receive LNA

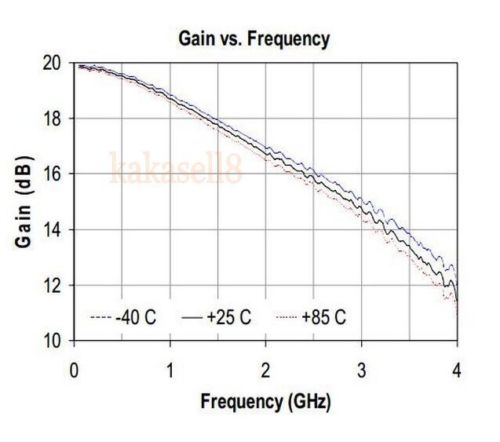

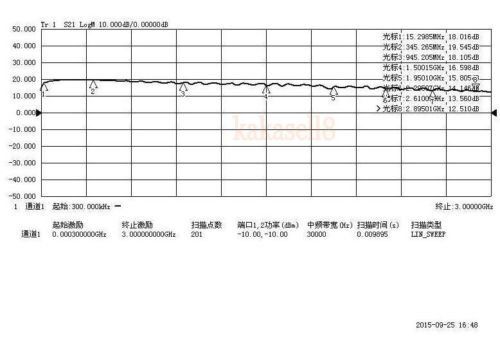

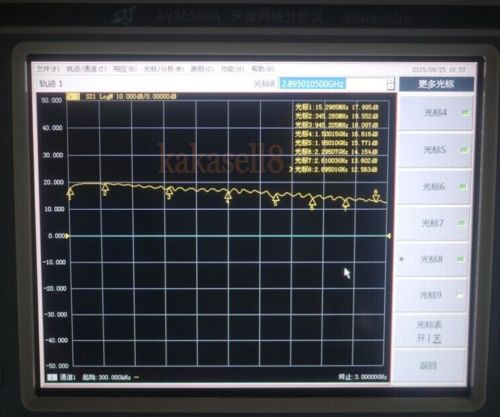

Specifications: supply voltage: 12V DC (current 35MA) Gain: 19.5DB Input Output Impedance: 50 Ohm maximum output power: 19.5dBm((6VPP \ 50 ohm load) input signal: <=0dBM Bandwidth: 1MHz to 3GHz noise figure: F=15.2MHZ GAIN=17.99DB F=345.2MHZ GAIN=19.55DB F=945.2MHZ GAIN=18.09DB F=1.500GHZ GAIN=16.16DB F=1.955GHZ GAIN=15.77DB F=2.295GHZ GAIN=14.11DB F=2.610GHZ GAIN=13.60DB F=2.895MHZ GAIN=12.56DB 4GHZ RF LNA Specifications: supply voltage: 5V DC (typical current 85MA) Gain: 20DB Input Output Impedance: 50 Ohm the maximum output power: 10dBm (2VPP \ 50 ohm load) input signal: <= 0dBm (greater than 0dBm creates distortion) Bandwidth: 50MHz to 4GHz (gain at different frequencies vary, please refer to the S21 curve indicators) the noise figure: 1.3dB @ 2GHz
