SSTV


"A picture is worth a thousand words"

Sight is our best used sense and the primary source of information about our soundings. What would our daily life be like with out it? Sending SSTV images is a great way to enhance Amateur Radio communications. In the past only a few Amateurs enjoyed SSTV. There was very little commercial equipment and it was quite expensive. Home brewing was too complicated for most people. This situation has changed drastically in the past years. Rather than using expensive special purpose hardware, newer systems are using personal computers to do the work. There is a wide assortment of software that uses very simple interfaces, ready-to-use commercial systems and home brew projects to fit every budget. Most systems now use a simple interface that connects the radio to your computer's sound card. New people are showing up on SSTV everyday.

Modes
Frequencies
Interface
Edict
Links
Pictures



Popular SSTV Modes

Family

Name

Type

Time (sec)

Lines

Notes

Robot 8 B&W 8 120 A
  12 B&W 12 120
  24 B&W 24 240
  36 B&W 36 240
  72 Y&C 72 240
Wraase SC-1 24 RGB 24 128 C
  48 RGB 48 256 B
  96 RGB 96 256 B
Martin M1 RGB 114 256 B
  M2 RGB 58 256 B
  M3 RGB 57 128 C
  M4 RGB 29 128 C
Scottie S1 RGB 110 256 B
  S2 RGB 71 256 B
  S3 RGB 55 128 C
  S4 RGB 36 128 C
  DX RGB 269 256 C
AVT 25 RGB 24 120 D
  90 RGB 90 240 D
  94 RGB 94 200 D
  188 RGB 188 400 D
  125 B&W 125 400 D

Types: B&W = Black and White. Y&C = Colour as luminance and chrominance. RGB = Colour as red, green and blue components.
Notes: A - Very similar to the original 8-second SSTV standard. B - The top 16 lines are always sent as grey scale, so 240 lines are usable. C - The top 8 lines are always sent as grey scale, so 120 lines are usable. D - AVT modes have a 5-second digital header and don't use horizontal sync.



What frequencies are used?

Some countries are more restrictive, but in Canada and the U.S. SSTV can be used anywhere voice is allowed. Traditionally, these frequencies are used:
· 3.845
· 3.857
· 7.171
· 14.230
· 14.233
· 21.340
· 28.680
· 145.5 MHz
20 meters is generally your best bet for finding activity. 80 meters is also popular. Recently, most of the growth has been on 2 meters.



The Interface

These are only some of the interfaces available. They can operate SSTV but they can also work other modes.
- RIGblaster
- BayPac MultiMode
- MFJ 1278
- Far Circuits - A Flexible Digital Mode Interface by Mitrenga, QST Nov 00 (A build it your-self project.)
There are many schematics and circuit designs on the Internet.



Slow Scan Edict

Remember - A picture is worth a thousand words. Many people maybe receiving the pictures you send.
1. Before starting to TX a picture on a frequency, ask in PHONE "Is this frequency in use?" Never transmit if you hear any other signals.
2. Never interrupt a SSTV QSO by sending a picture. See #1
3. The suggested spacing for SSTV frequencies 3kHz.
4. Don't hesitate to help station operator who does not have the right operating procedure. They may not even know about it.
5. Try to be original in your pictures! Station related pictures (shack, antennas, QTH, area, family etc) make SSTV really attractive! Please don't transmit pictures containing Porno, politics, commercials etc.
6. SSTV is a lot more than a picture. Take time to talk about your pictures between sending. Give out comments about the pictures that you receive.
7. Before you transmit your picture, ask the receiving station if they are ready.
8. When you would like to answer to a CQ, first ask the CQ'ing station in PHONE if they are ready for your picture.
9. 20 meters is really overcrowded (and not only with SSTV!). Try the higher bands.





SSTV Links

What is SSTV

VE3RDN SSTV page

ChromaPIX and W95SSTV Software

Kenwood VC-H1

VA3SF SSTV Links

KA2HZO Live HF SSTV Web Cam

Some photos from 1999/2000- VE3ZYD

CQ SSTV de KB4YZ

Subscribe to the PARC SSTV e-mail group - Stay up to date with all the info





Weekly Pictures

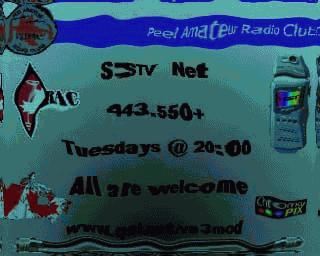

I have posted a pictures from a weekly net I had with the PARC on the 70cm repeater.

Welcome 480k

November 14 2000 340k

November 21 2000 640k

January 9 2001 150k

HAMEX 2001 310k
