Part for DN-600 Solid State amplifier

For more details see the link => http://www.qsl.net/ut2fw/dn600.htm

DN-600 amplifier assembled from following parts:

  1. Enclosure
  2. SE-1000-48 Power Supply
  3. Heat sink
  4. PA amplifier Main Unit
  5. PA Unit 600-1000W PEP Linear Amplifier DN-600 4x SD2933 (MRF150)
  6. LPF unit
  7. KIT LPF600 Unit for 1000W HF power amplifier DN-600.
  8. LPF600 - LPF Unit using low-pass filter 5th order, 1kW PEP, SWR meter
  9. RF shield sheet between PA and LPF
  10. Input ATT unit (PCB IN)
  11. Front indication PCB unit
  12. Step-Start Unit for SE-1000-48
  13. Fans 2pcs
  14. Connecting wires

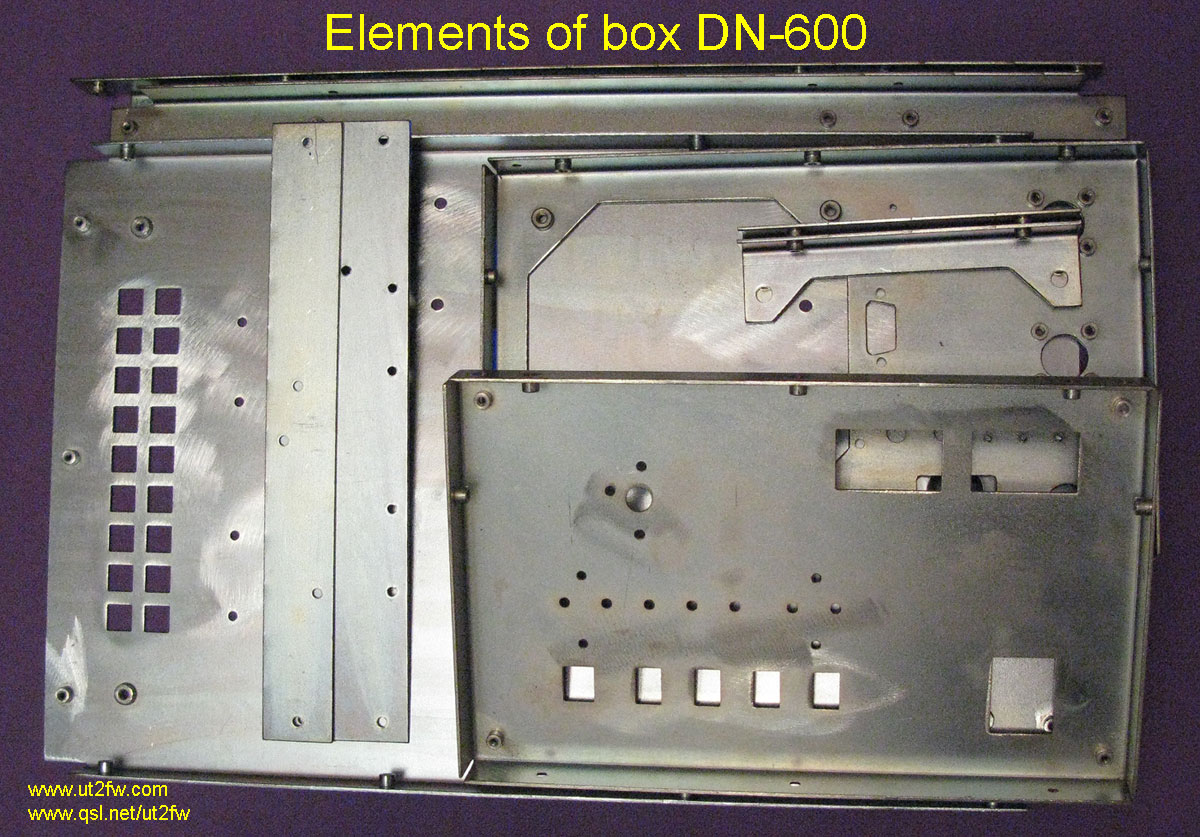

  1. Enclosure. Size 236x146x390mm. Weight 4.3kg. Overall size on the upper lid 239x150x400mm. Enclosure includes 9 elements - cover, bottom, front and back panels, lintels (4pcs), front panel. Additionally, two mounting bracket for fan and for SE-1000. Made from 1.5 mm steel. Coated with zinc. Cover separately, on the photo is not shown. Price: $200 USD

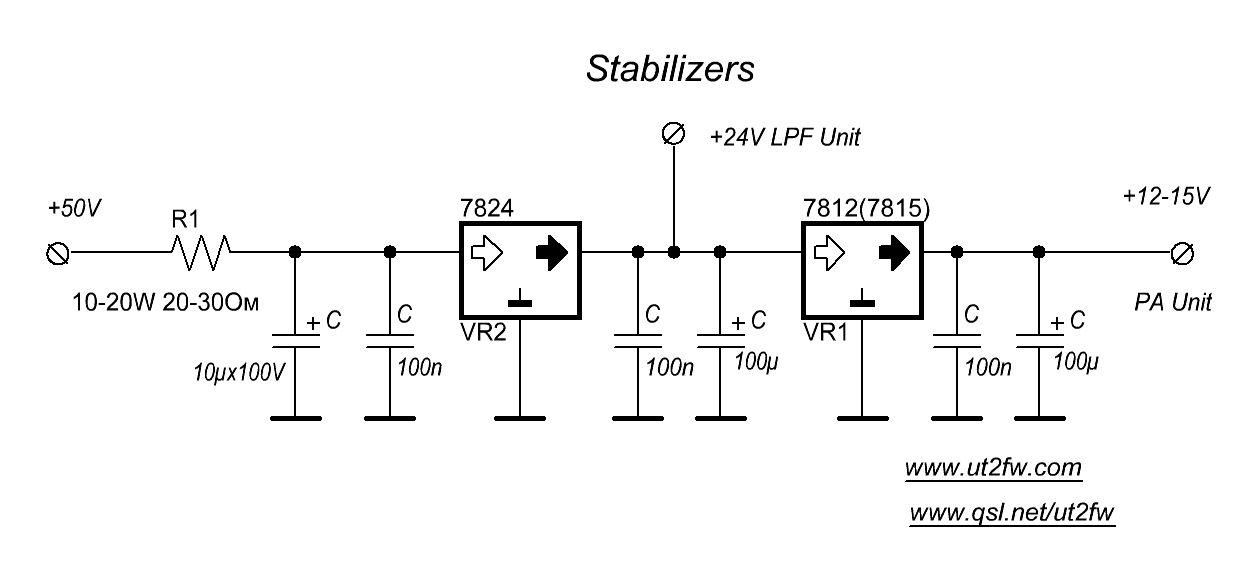

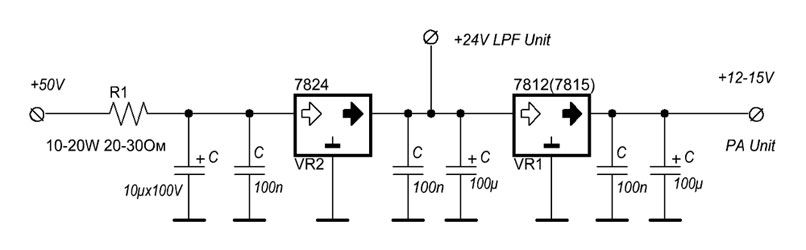

    Voltage 24V and 12V may be supplyed from two methods. The first method, which is used in the DN-600 - from 48V. Voltage can be reduced with a resistor 10W. Resistor + stabilizers (24V, 12V) $7 USD



    The second way - separate transformer ~ 220V - ~ 16V. In this case, all the relays must be voltage 12V. Transformer - $12 USD



  2. SE-1000-48. See description page DN-600. Not available.

  3. Heat sink. Size 140x200x58mm. Rib height 45mm. Not available. Copper plate. Size 145x1103mm, weight 0,41kg. Drilled holes - $30 USD.


    4.

  4. PA Unit. Size PCB 192x135mm. PCB PA - $20 USD.

    5.

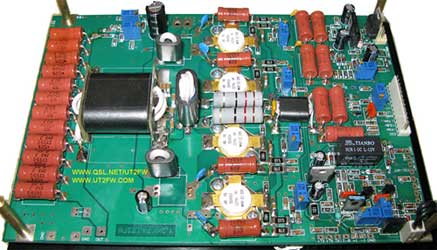

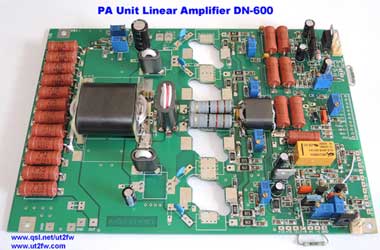

  5. PA Unit 600-1000W PEP Linear Amplifier DN-600 4x SD2933 (MRF150). Size PCB 192x135mm. PA Unit - $185 USD (without transistors).

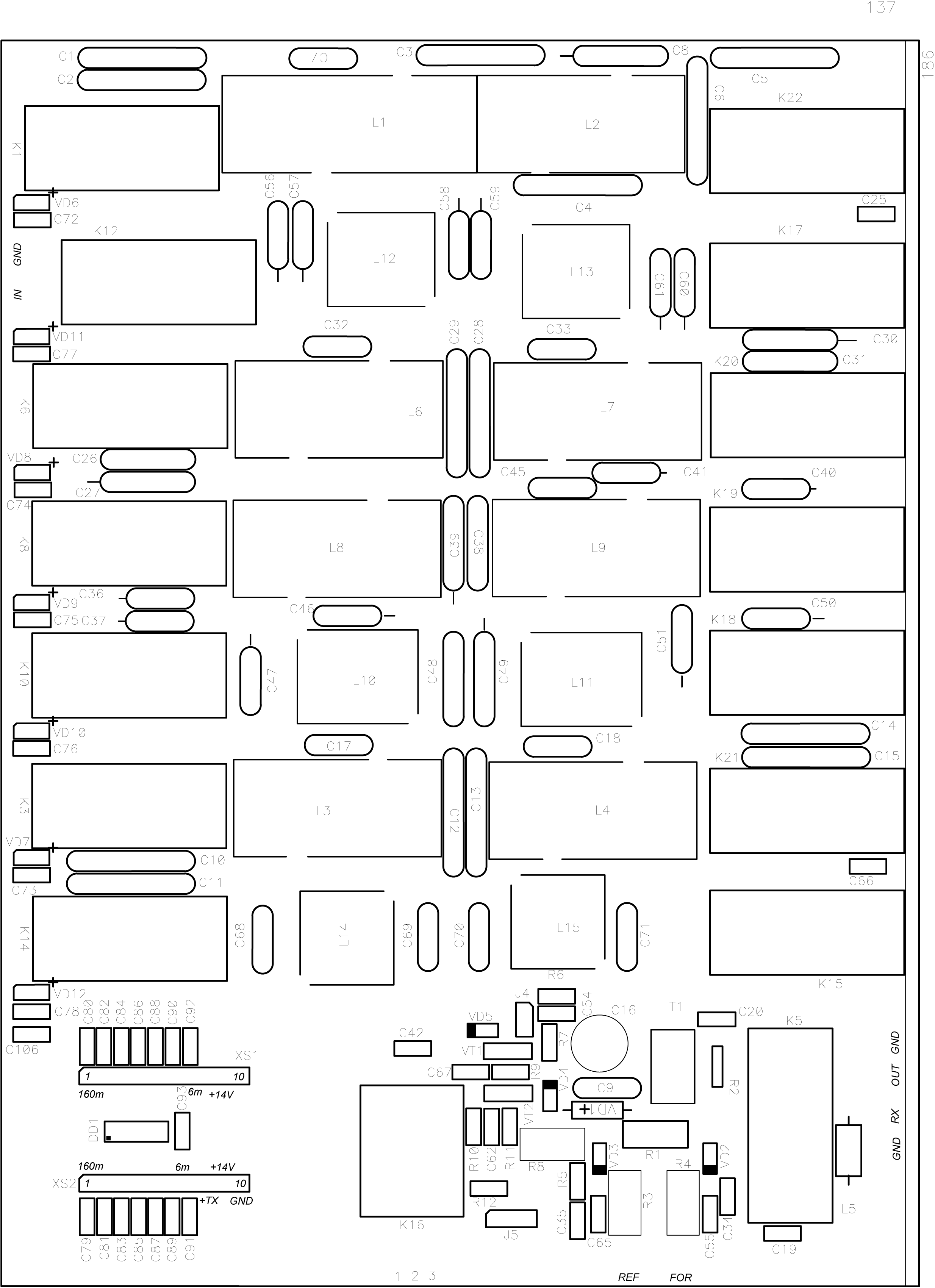

  6. LPF Unit. Size PCB 186x137mm. PCB LPF unit - $30 USD.

    7.

  7. KIT LPF600 Unit for 1000W HF power amplifier DN-600. Size PCB 186x137mm. PCB LPF unit - $145 USD.
    KIT LPF600 consists from:
    1.PCB. All SMD components are soldered. You watch a photo.
    2.All relays (16pcs). The option from the relay LPF on 24V is possible (make an additional request).
    3.All high-voltage capacitors (26pcs).
    4.All coils (14pcs). See photos.
    5.Transformer T1.
    6.Ceramic trimmer capacitors C16 - 4-20pf, 250V.
    7.3296 trimmer resistor R3, R4, R8.

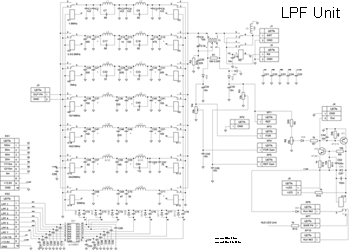

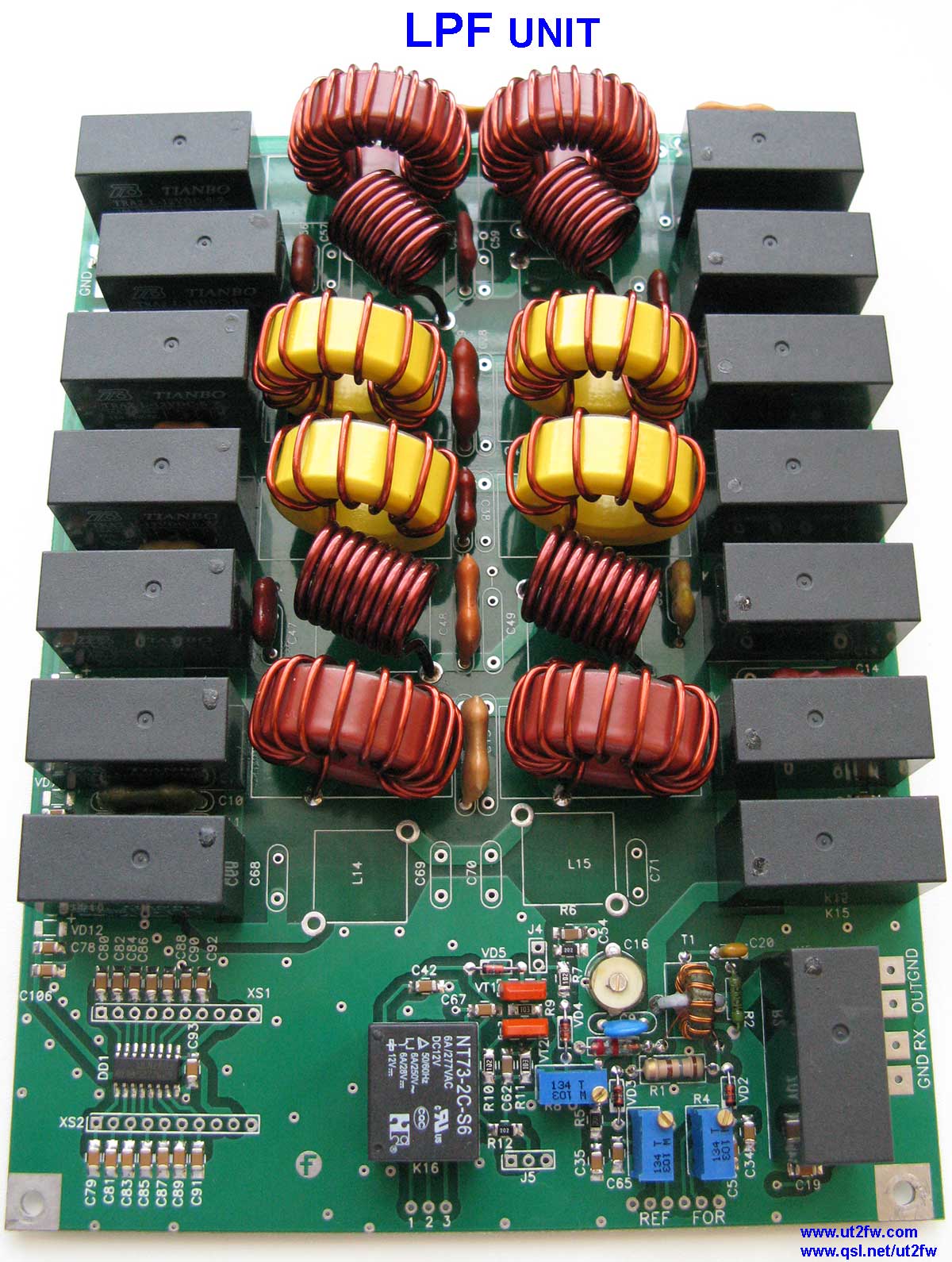

  8. LPF600 - LPF Unit using low-pass filter 5th order, 1kW PEP, SWR meter. LPF600 Unit - $195 USD

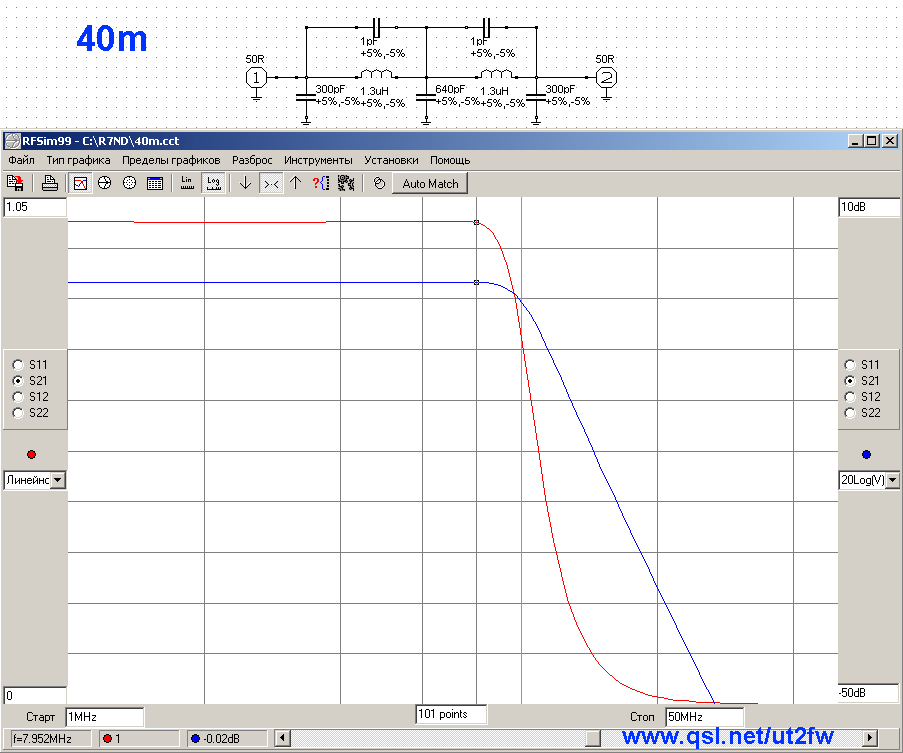

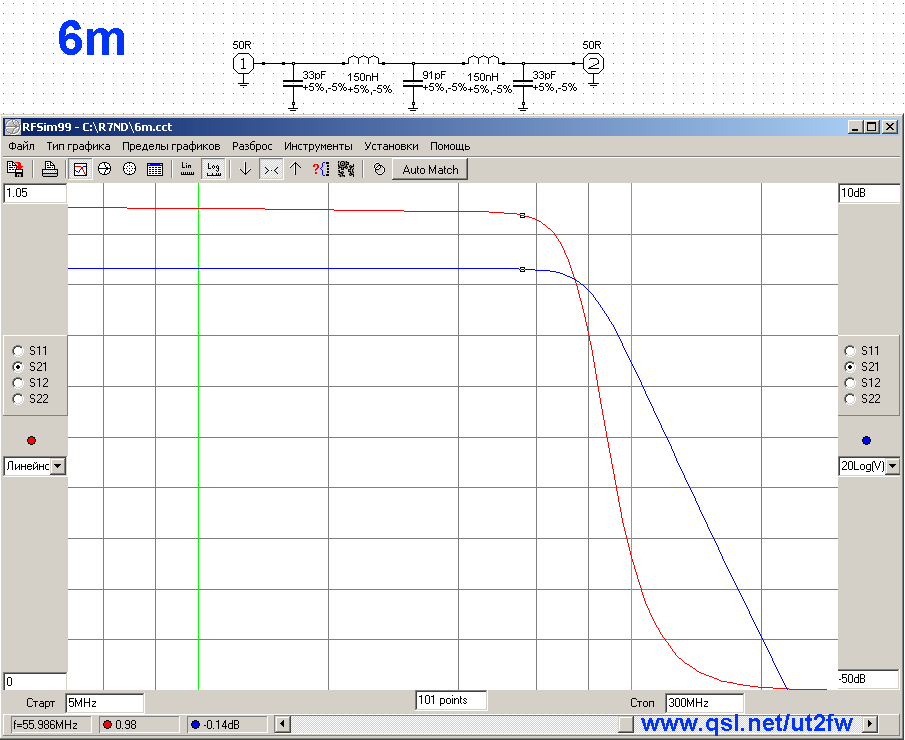

    LPF600 using low-pass filter 5th order. It is applied in the Solid State HF amplifier DN-600.
    LPF600 allows you to filter the power to 1kW PEP. All of filters are for 50 ohm. Similar LPF used in amplifiers - ALS-600 - Ameritron, HL1.5Kfx - Tokyo Hy-Power.
    For switching filters applied powerful relays with a current capacity 16A.
    Have a built-in SWR meter circuit. Forward-Reflected display can be shown simultaneously on the dial indicators and LEDs.

  9. RF shield. Size 186x137mm. - $5 USD.

    10.

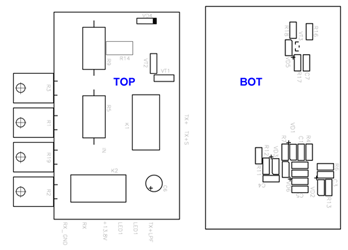

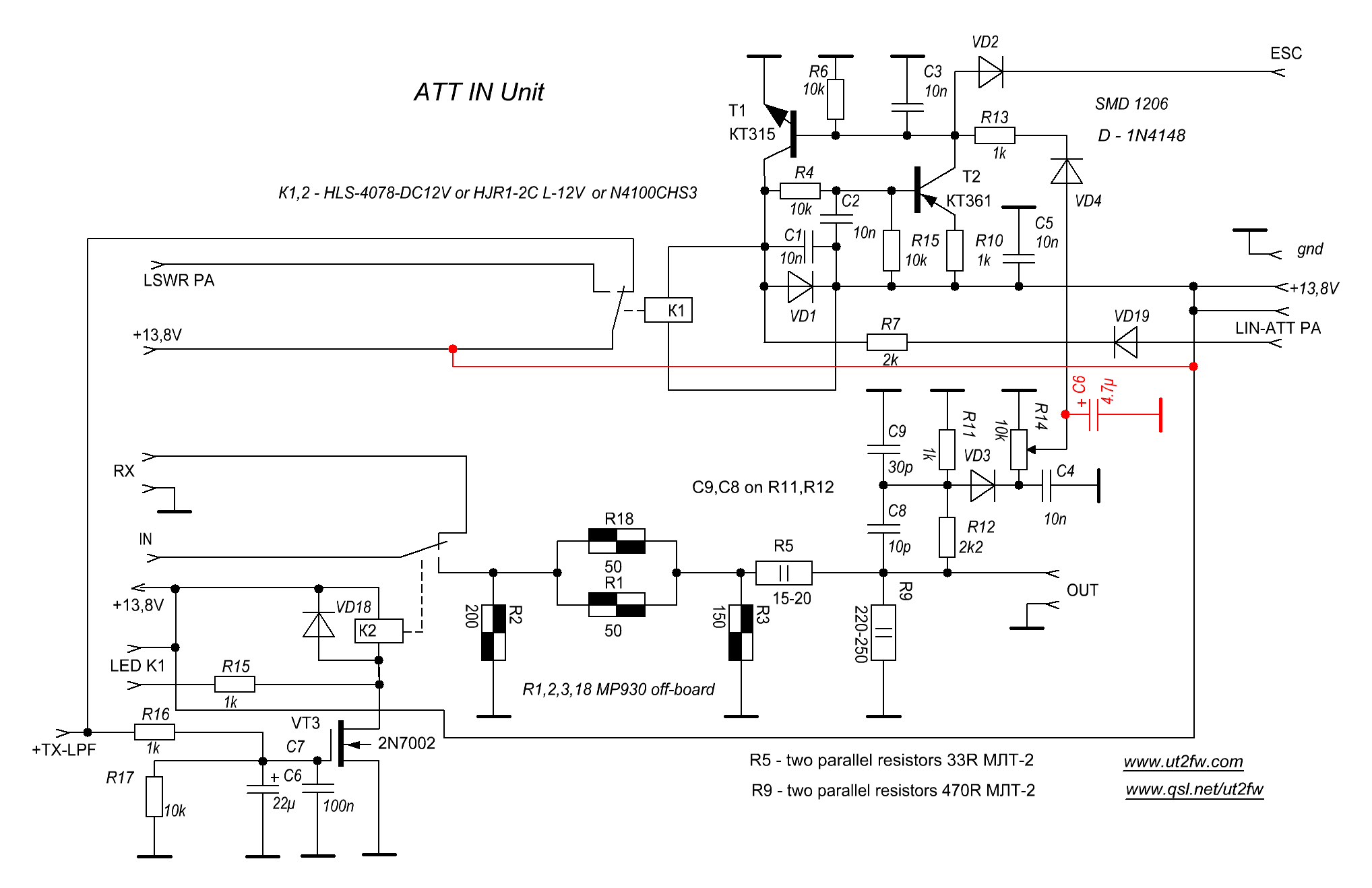

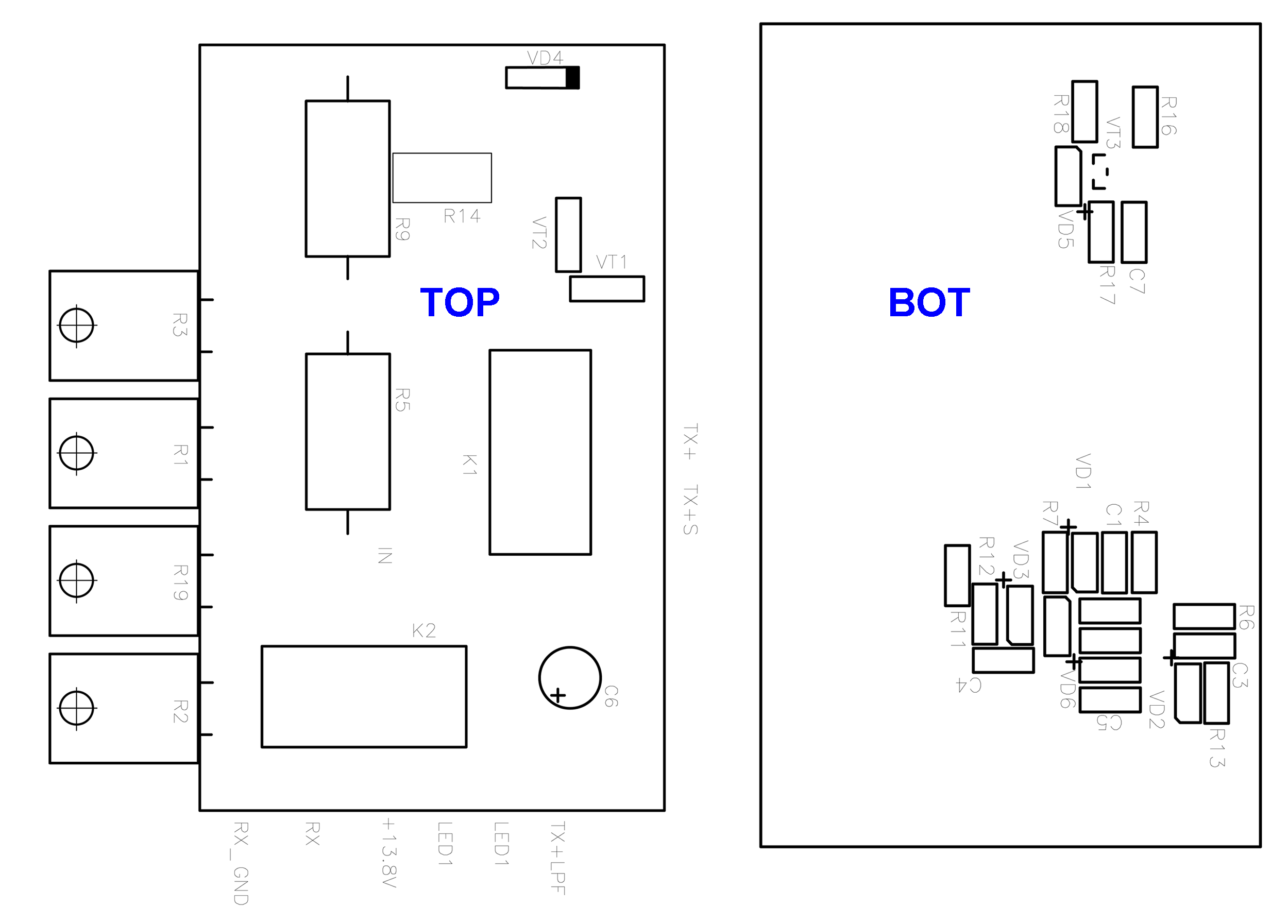

  10. Input ATT unit. Size PCB 75x45mm. PCB ATT IN - $4 USD. PCB ATT IN (solder SMD components) - $7 USD. ATT IN Unit (without MP930 R1,2,3,18) - $32 USD.

    11.

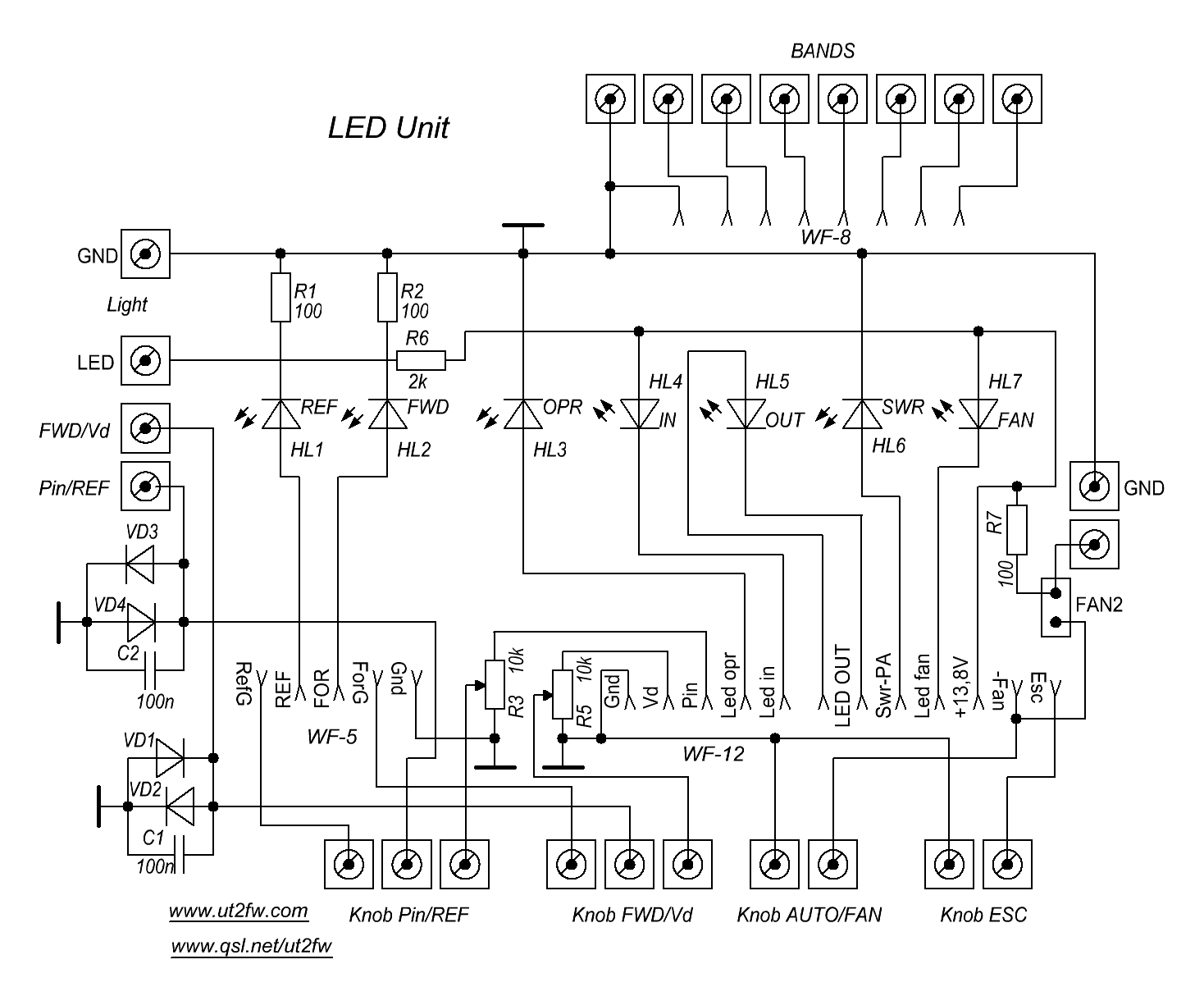

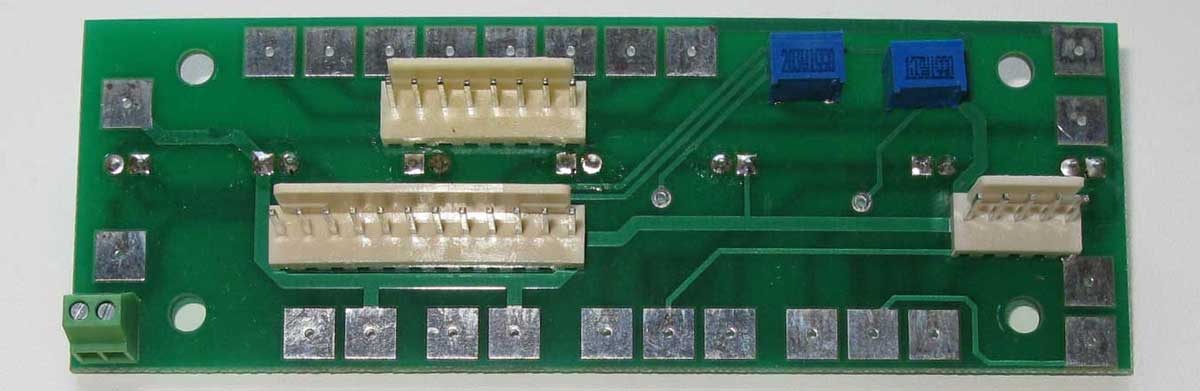

  11. Indication PCB. Size 105x35mm. PCB INDIC - $4 USD.

    12.

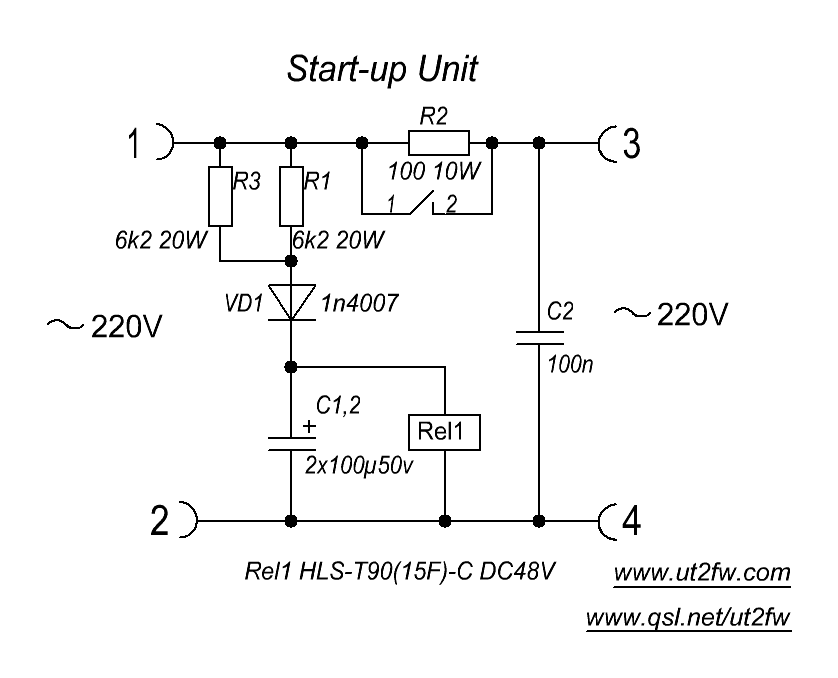

  12. Step-Start Unit. Size PCB 91x80mm. PCB start-up - $5 USD. Step-Start Unit - $35 USD.

    13.

  13. Fans. Not available.

    14.

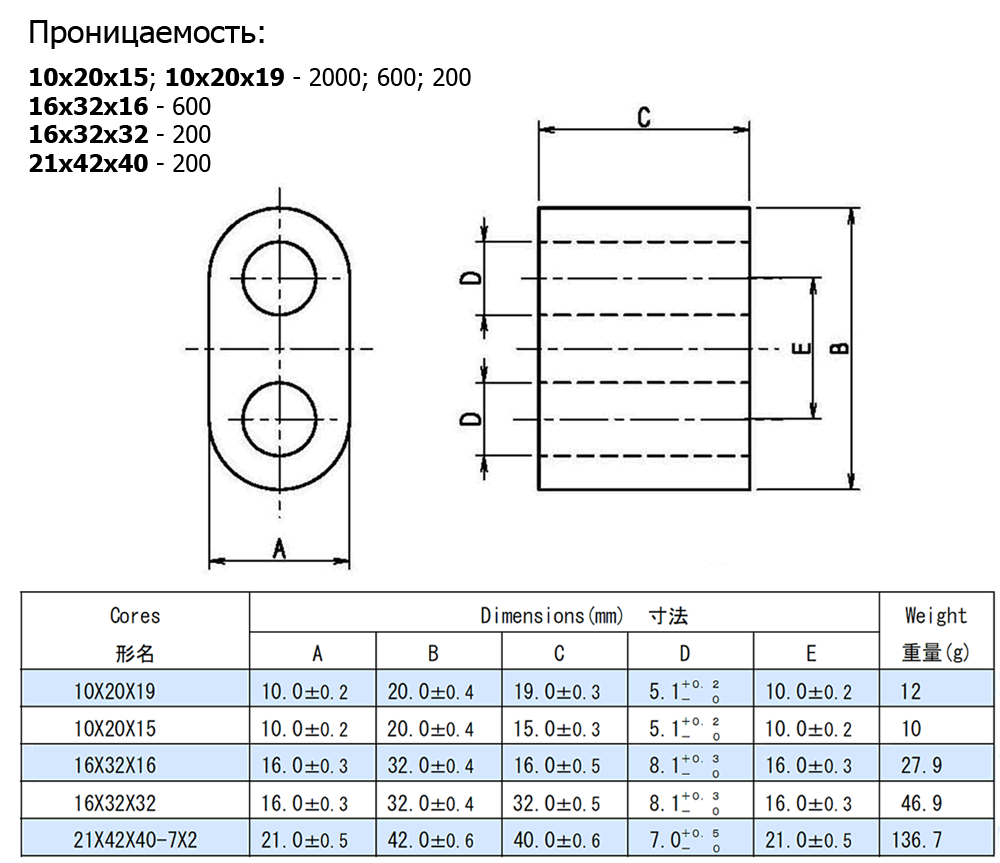

  14. Ferrites. 16x32x32+2pcb - $16 USD; 2x 16x32x16+2pcb - $14 USD; 10x20x19 - $3USD; 10x20x15 - $2 USD
