ARDUINO intelligent antenna matrix switch

An ideal tool for connecting your IC-706 or IC-7000 to more than one antenna and having them switched automatically.   You could as well use it to drive a 5 bands BPF ... or  develop an antenna tuning unit, a magnetic loop variable condenser stepper motor drive etc ...

This sketch will readout on a 2x 16 characters LCD display the frequency of any ICOM transceiver by reading the CAT line (the device acting as a listener only, the transceiver is set to 'CAT TRANSCEIVE' mode to broadcast data) and switch 5 + 1 antenna's  (or band pass filters... ) according to band.

Up to five digital outputs are to be interfaced with relays, the sixth position is 'no relay energized'.  CAT activity will be displayed in the top row, on the right side (a small 'c' will show up when valid CAT data is received).  I used 9k6 as my SPE power amplifier runs at 9k6 as well. The ARDUINO board is simply put in parallel with it.

The matrix can be programmed with 2 push-buttons (scroll left or right), the values are permanently stored in EEPROM after a small delay, once the choice is definitive (this to avoid too many write cycles to EEPROM). When the new setting is memorized, a small 'M' will briefly show up on the second line at right.  The switching combination can be different for RX and TX  (reading the PTT line, it will select the right antenna).  In program mode, you have to depress a push button which indicates this is the 'TX' antenna.   In TX mode, no antenna can be changed / programmed with the scroll buttons.

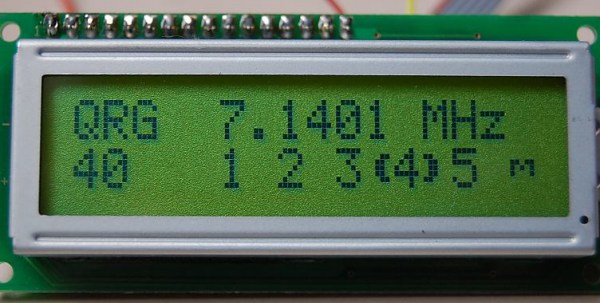

Here we see antenna (4) is selected for 40m band



All the settings programmed in the matrix can be cleared if you depress button scroll buttons at startup / reboot.

This is the sketch  or download it here:   It was compiled with IDE version 0022.- IMPORTANT : please use the same or you might get errors when compiling !  You still can download previous versions from ARDUINO website

A new version was compiled by Pete & Sam ZS6SAM for Arduino MEGA and IDE 1.0.4.  Dowload it here !

A rough schematic diagram can be downloaded here (pdf document).

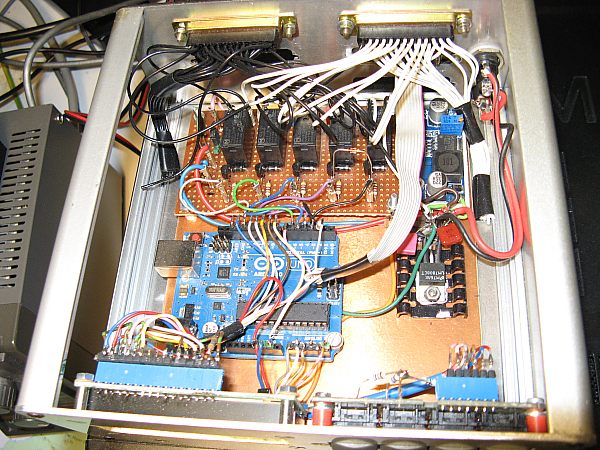

ON4AHF Henk has build the switch in a nice cabinet, as a complement to his IC-7600.


// This sketch will decode ICOM CAT frequency information
// and switch antenna's according to preset (memorized)
// values. RX and TX antenna's can be different.

// Instead of antennas, bandfilters band be selected

// by ON7EQ November 2011

// With thx to Jeff Smith VE1ZAC from which some code was inspired.

// include EEPROM write - required to memorize antenna / band config.
#include <EEPROM.h>

// Serial NewSoftSerial is required, as standard Serial is conflicting with LCD
#include <NewSoftSerial.h>

// Use pins 2 and 3 to talk to the CAT. 2 is the RX pin, 0 is the TX pin
// this is a dummy pin, as no TX is performed
// Connect the RX pin to the CAT output through a 4k7 resistor.

// IMPORTANT : select on the rig in the menu
//       CAT 'TRANSCEIVE' (ON)
// to implement broadcast of displayed frequency!

NewSoftSerial mySerial =  NewSoftSerial(2, 0);

// Pin Variables
#define  A1Pin      (13)   // Pin for  Antenna 1
#define  A2Pin      (6)    // Pin for  Antenna 2
#define  A3Pin      (5)    // Pin for  Antenna 3
#define  A4Pin      (4)    // Pin for  Antenna 4
#define  A5Pin      (3)    // Pin for  Antenna 5

#define  LeftPin    (A0)    // Pin for 'left scroll select'  - +5v with 4k7 pullup, GND when depressed
#define  RightPin   (A1)    // Pin for 'right scroll select' - idem
#define  TXsimPin   (A2)    // Pin for 'TX simulator'        - idem
#define  PTTPin     (A5)    // PTT input pin. 0 = TX, 1 = RX

#define  TonePin    (1)    // Pin for  Beeper out




// Define band edges, some out of band allowed for antenna SWR curves

#define  High6       (52025)
#define  Low6        (49975)
#define  High10      (29750)
#define  Low10       (27975)
#define  High12      (25040)
#define  Low12       (24840)
#define  High15      (21475)
#define  Low15       (20975)
#define  High17      (18200)
#define  Low17       (18018)
#define  High20      (14375)
#define  Low20       (13975)
#define  High30      (10175)
#define  Low30       (10075)
#define  High40      (7450)
#define  Low40       (6975)
#define  High80      (3850)
#define  Low80       (3475)
#define  High160     (2050)
#define  Low160      (1760)


#include <LiquidCrystal.h>

// initialize the library with the numbers of the interface pins
/*
 * LCD RS pin     to digital pin 7
 * LCD Enable pin to digital pin 8
 * LCD D4 pin     to digital pin 9
 * LCD D5 pin     to digital pin 10
 * LCD D6 pin     to digital pin 11
 * LCD D7 pin     to digital pin 12
 * LCD R/W pin    to ground
 * GND to LCD VO pin (pin 3) (contrast)
*/

LiquidCrystal lcd(7, 8, 9, 10, 11, 12);

int buffget[10] ;                             // the receive buffer

int unsigned long MHZ = 0;
int unsigned long KHZ = 0;
int unsigned long HZ = 0;
int unsigned long QRG = 0;
int unsigned long QRGcomp = 0;

int unsigned memotime = (1000);                // delay (ms) before selected antenna is memorized. Must be > 300 !

byte BAND =(0);                                 // the actual band we are on
byte oldBAND = (0);

byte RXantenna = (1);                         // the default RX antenna for the band
byte TXantenna = (1);                         // the default RX antenna for the band

byte TXstatus = (0);                          // 0 = RX mode, 1 = TX mode
byte oldTXstatus = (0);                       // 0 = RX mode, 1 = TX mode

byte buttonpressed = (0);                     // 0 = no button pressed
byte simbuttonpressed = (0);

// LCD specific characters 'C' for CAT activity indication

byte cat [8] = {
  B00000,
  B00000,
  B01110,
  B01000,
  B01110,
  B00000,
  B00000,
};

// Antenna indicator Style 1

byte accoright [8] = {
  B00000,
  B11000,
  B01100,
  B01100,
  B01100,
  B11000,
  B00000,
};
byte accoleft [8] = {
  B00000,
  B00011,
  B00110,
  B00110,
  B00110,
  B00011,
  B00000,
};

byte memory [8] = {
  B00000,
  B00000,
  B11011,
  B10101,
  B10001,
  B00000,
  B00000,
};




// some control variables

int i;

int incoming;
int unsigned long DisplayTime = 0;                    // timer display refresh
int unsigned long ButtonTime = 0;                     // Timer button depressed

byte memorize = (0);                                  // if = 1, them position to be memorzied

////////////// This loop run once on start up  /////////////////

void setup() {

  //set up output pins antenna control & beeper

  pinMode(A1Pin, OUTPUT);
  pinMode(A2Pin, OUTPUT);
  pinMode(A3Pin, OUTPUT);
  pinMode(A4Pin, OUTPUT);
  pinMode(A5Pin, OUTPUT);
  pinMode(TonePin, OUTPUT);

  digitalWrite(A1Pin,0) ;
  digitalWrite(A2Pin,0) ;
  digitalWrite(A3Pin,0) ;
  digitalWrite(A4Pin,0) ;
  digitalWrite(A5Pin,0) ;
  digitalWrite(TonePin,0) ;

// create LCD characters
  lcd.createChar(0, cat);
  lcd.createChar(1, accoleft);
  lcd.createChar(2, accoright);
  lcd.createChar(3, memory);


  // set up the LCD's number of columns and rows:
  lcd.begin(16, 2);
  lcd.clear();

  // Print a message to the LCD.
  lcd.setCursor(0, 0);
  lcd.print(" ON7EQ Icom CAT");
  lcd.setCursor(0, 1);
  lcd.print(" v1.08  Nov2011");
  delay (1000);

  // RESET if SCROLL left & right buttons depressed at startup !

    if ((analogRead(LeftPin)<512) and (analogRead(RightPin)<512)) Reset ();

 // Startup Beep

   tone(TonePin,1200);
    delay(150);
    tone(TonePin,1600);
    delay (150);
    tone(TonePin,2000);
    delay (150);
    noTone (TonePin);

  delay (1000);


  // print screen template
  lcd.clear();

  lcd.setCursor(0, 0);
  lcd.print("QRG --.---- MHz  ");

  lcd.setCursor(0, 1);
  lcd.print("Bnd ");

  clearindicator ();
 //  RXindicator ();

  mySerial.begin(9600);  // CAT running at 9k6

}



////////////////////////// MAIN LOOP ////////////////////////////////////

void loop() {


listen:

  delay(1);                          // reduced from 50 !


next:

// detect if TX simulation switch depressed

if ((analogRead(TXsimPin)<512) and (simbuttonpressed ==0) and (TXstatus == 0)) {   // TX simulation depressed while in RX

  simbuttonpressed = 1;
  lcd.setCursor(0, 1);
  lcd.print("TX ");
  clearindicator ();       // always to do, before RX and TX change
  TXindicator ();          // We are displaying TX condition
  }

if ((analogRead(TXsimPin)>512) and (simbuttonpressed ==1) ) {                       // TX simulation released
  simbuttonpressed = 0;
  lcd.setCursor(0, 1);
  if (BAND != 0) lcd.print(BAND,DEC);
  if (BAND == 0) lcd.print("Man");
  clearindicator ();       // always to do, before RX and TX change
  RXindicator ();          // We are displaying RX condition
  }

// detect if PTT low (Transmit status)

if ((analogRead(PTTPin)<128) and (TXstatus == 0)) {                                 // We go into TX mode

  TXstatus = 1;
  lcd.setCursor(0, 1);
  lcd.print("TX ");
  clearindicator ();       // always to do, before RX and TX change
  TXindicator ();          // We are displaying & setting TX condition
  }

if ((analogRead(PTTPin)>256) and (TXstatus ==1 )) {   // We go into RX with some hysterisis
  TXstatus = 0;
  lcd.setCursor(0, 1);
  if (BAND != 0) lcd.print(BAND,DEC);
  if (BAND == 0) lcd.print("Man");
  clearindicator ();       // always to do, before RX and TX change
  RXindicator ();          // We are displaying & setting RX condition
  }

/* DEBUG  : test update cycle
    tone(TonePin,2000);
    delay (5);
    noTone (TonePin);
*/



if (TXstatus == 0) ReadButtons ();  // no reprogramming when really in TX mode !

if ((millis() - DisplayTime) > 350) {  // refresh CAT indicator
            lcd.setCursor(15, 0);
            lcd.print(" ");
                }

  if (mySerial.available() > 0) {
    incoming = mySerial.read();
    if (incoming == 254) {           // 1st byte is  an FE look for an FE to start
      goto start;
    }

    goto next;
  }


start:

  buffget[0] = 0;

  // delay(1);
  for ( i=0;i<10;i++) {               // get next 10 bytes
    if(mySerial.available() > 0) {
      buffget[i]=mySerial.read();     // load buffget with next 10 characters
      delay(2);                       //delay 1 ms if true, time for buffer fill
    }
  }



delay (10);                                     // delay is required to process buffer, do not remove !

  if (buffget[0] == 254) {                      // again FE , as 2nd character ?

    goto next1;
  }                                             // yes, now do '00' test
  goto listen;                                  // wrong array, get another


next1:

  if ((buffget[3] == 0) or (buffget[3] == 3) or  (buffget[3] == 5)     ){  // check to see if 4th char is 00 or 03 or 05 (=frequency)
    goto next2;
  }                                             // detected, goto next2

/*
  if ((buffget[3] == 28) and (buffget[4] == 0)) TXstatus = 0;        // RX mode detect, if set by CAT
  if ((buffget[3] == 28) and (buffget[4] == 1)) TXstatus = 1;        // TX mode detect, if set by CAT
*/

  goto listen;                                  // wrong array, get another


next2:

// Check for last byte

  if(buffget[9] == 253 ){                       // look for FD at end of array
    goto frequency;
  }                                             // if FD detected, goto frequency
  goto listen;                                  // wrong command



frequency:                                     // we have frequency array on hand

    MHZ = (buffget[7]);

    MHZ = MHZ - (((MHZ/16) * 6));              // Transform bytes ICOM CAT
    if (MHZ >= 100)  goto listen;              // wrong byte

    KHZ = buffget[6];
    KHZ = KHZ - (((KHZ/16) * 6));              // Transform bytes ICOM CAT
    if (KHZ >= 100)  goto listen;              // wrong byte

    HZ = buffget[5];
    HZ = HZ - (((HZ/16) * 6));                 // Transform bytes ICOM CAT
    if (HZ >= 100)  goto listen;               // wrong byte

  QRG = ((MHZ * 10000) + (KHZ * 100) + (HZ * 1)); // QRG variable stores frequency in MMkkkH  format

 // Print frequency

  lcd.setCursor(4, 0);
  if (QRG < 100000) lcd.print(" ");
  lcd.print(QRG/10000,DEC);
  lcd.print(".");
  if (QRG%10000 < 1000 )  lcd.print("0");
  if (QRG%10000 < 100 )   lcd.print("0");
  if (QRG%10000 < 10 )    lcd.print("0");
  lcd.print(QRG%10000,DEC);
  lcd.print(" MHz");
  lcd.write(0);                              // print the CAT activity indicator

// set display timer
  DisplayTime = millis();


// Which band ?

 QRGcomp = QRG / 10;
 BAND = 0;                // default band = will generate error
 if ((QRGcomp < High6)   and (QRGcomp > Low6))     BAND = 6;
 if ((QRGcomp < High10)  and (QRGcomp > Low10))    BAND = 10;
 if ((QRGcomp < High12)  and (QRGcomp > Low12))    BAND = 12;
 if ((QRGcomp < High15)  and (QRGcomp > Low15))    BAND = 15;
 if ((QRGcomp < High17)  and (QRGcomp > Low17))    BAND = 17;
 if ((QRGcomp < High20)  and (QRGcomp > Low20))    BAND = 20;
 if ((QRGcomp < High30)  and (QRGcomp > Low30))    BAND = 30;
 if ((QRGcomp < High40)  and (QRGcomp > Low40))    BAND = 40;
 if ((QRGcomp < High80)  and (QRGcomp > Low80))    BAND = 80;
 if ((QRGcomp < High160) and (QRGcomp > Low160))   BAND = 160;
 if (BAND == 0) {
   clearindicator ();                  // We are not on standard band, clear antenna's
      }




if (memorize == 1)   goto finish;  // antenna position must be memorized, do not read what is now in memory

 // Check band changed

if (BAND == oldBAND) goto finish;  // no bandchange

 ///// Band is changed ! /////

oldBAND = BAND;

 // now process antenna change


 // read value from EEPROM

  if (BAND == 0) {
        lcd.setCursor(0, 1);
        lcd.print("   ");
        goto finish;     // no need to read
        }

// display band
        lcd.setCursor(0, 1);
        lcd.print("   ");
        lcd.setCursor(0, 1);
        if (BAND != 0) lcd.print(BAND,DEC);


  ReadEEPROMvalues ();

 //Show in display

   clearindicator ();       // always to do, before RX and TX change
   RXindicator ();          // We are assuming in RX mode while changing band



// Music Maestro

    tone(TonePin,1600);
    delay(150);
    tone(TonePin,1200);
    delay (150);
    noTone (TonePin);


   goto finish;
// end process antenna change //


finish:

  delay(0);

  goto listen;

}

///////////////// SUBROUTINES ///////////////////

void clearindicator () {  // Clear all antenna
  lcd.setCursor(4, 1);
  lcd.print(" 1 2 3 4 5 ");
  digitalWrite(A1Pin,0) ;
  digitalWrite(A2Pin,0) ;
  digitalWrite(A3Pin,0) ;
  digitalWrite(A4Pin,0) ;
  digitalWrite(A5Pin,0) ;
}
/////////////////////////////////////////////////////////////////////

void RXindicator () {    // Process selected RX antenna
  if (RXantenna == 1) {
      digitalWrite(A1Pin,1) ;
      lcd.setCursor(4, 1);
      lcd.write(1);
      lcd.setCursor(6, 1);
      lcd.write(2);
    }
if (RXantenna == 2) {
      digitalWrite(A2Pin,1) ;
      lcd.setCursor(6, 1);
      lcd.write(1);
      lcd.setCursor(8, 1);
      lcd.write(2);
     }
if (RXantenna == 3) {
      digitalWrite(A3Pin,1) ;
      lcd.setCursor(8, 1);
      lcd.write(1);
      lcd.setCursor(10, 1);
      lcd.write(2);
    }
if (RXantenna == 4) {
      digitalWrite(A4Pin,1) ;
      lcd.setCursor(10, 1);
      lcd.write(1);
      lcd.setCursor(12, 1);
      lcd.write(2);
    }
if (RXantenna == 5) {
      digitalWrite(A5Pin,1) ;
      lcd.setCursor(12, 1);
      lcd.write(1);
      lcd.setCursor(14, 1);
      lcd.write(2);
    }
/* / Check if TX = RX ant
lcd.setCursor(15, 1);
lcd.print(" ");
lcd.setCursor(15, 1);
if (TXantenna = RXantenna) lcd.print("=");  // same RX as TX antenna
*/

}
/////////////////////////////////////////////////////////////////////

void TXindicator () {    // Process selected TX antenna
  if (TXantenna == 1) {
      digitalWrite(A1Pin,1) ;
      lcd.setCursor(4, 1);
      lcd.write(1);
      lcd.setCursor(6, 1);
      lcd.write(2);
    }
if (TXantenna == 2) {
      digitalWrite(A2Pin,1) ;
      lcd.setCursor(6, 1);
      lcd.write(1);
      lcd.setCursor(8, 1);
      lcd.write(2);
     }
if (TXantenna == 3) {
      digitalWrite(A3Pin,1) ;
      lcd.setCursor(8, 1);
      lcd.write(1);
      lcd.setCursor(10, 1);
      lcd.write(2);
    }
if (TXantenna == 4) {
      digitalWrite(A4Pin,1) ;
      lcd.setCursor(10, 1);
      lcd.write(1);
      lcd.setCursor(12, 1);
      lcd.write(2);
    }
if (TXantenna == 5) {
      digitalWrite(A5Pin,1) ;
      lcd.setCursor(12, 1);
      lcd.write(1);
      lcd.setCursor(14, 1);
      lcd.write(2);
    }
/*  Check if TX = RX ant
lcd.setCursor(15, 1);
lcd.print(" ");
lcd.setCursor(15, 1);
if (TXantenna = RXantenna) lcd.print("=");  // same RX as TX antenna
*/

}


/////////////////////////////////////////////////////////////////////

void ReadEEPROMvalues () {      //  Read Antenna's stored in EEPROM

if (BAND == 6) RXantenna =   EEPROM.read(6);
if (BAND == 6) TXantenna =   EEPROM.read(7);

if (BAND == 10) RXantenna =  EEPROM.read(10);
if (BAND == 10) TXantenna =  EEPROM.read(11);

if (BAND == 12) RXantenna =  EEPROM.read(12);
if (BAND == 12) TXantenna =  EEPROM.read(13);

if (BAND == 15) RXantenna =  EEPROM.read(15);
if (BAND == 15) TXantenna =  EEPROM.read(16);

if (BAND == 17) RXantenna =  EEPROM.read(17);
if (BAND == 17) TXantenna =  EEPROM.read(18);

if (BAND == 20) RXantenna =  EEPROM.read(20);
if (BAND == 20) TXantenna =  EEPROM.read(21);

if (BAND == 30) RXantenna =  EEPROM.read(30);
if (BAND == 30) TXantenna =  EEPROM.read(31);

if (BAND == 40) RXantenna =  EEPROM.read(40);
if (BAND == 40) TXantenna =  EEPROM.read(41);

if (BAND == 80) RXantenna =  EEPROM.read(80);
if (BAND == 80) TXantenna =  EEPROM.read(81);

if (BAND == 160) RXantenna = EEPROM.read(160);
if (BAND == 160) TXantenna = EEPROM.read(161);
}

/////////////////////////////////////////////////////////////////////

void WriteEEPROMvalues () {      //  Write Antenna's in EEPROM

if (BAND == 6) EEPROM.write(6, RXantenna);
if (BAND == 6) EEPROM.write(7, TXantenna);

if (BAND == 10) EEPROM.write(10, RXantenna);
if (BAND == 10) EEPROM.write(11, TXantenna);

if (BAND == 12) EEPROM.write(12, RXantenna);
if (BAND == 12) EEPROM.write(13, TXantenna);

if (BAND == 15) EEPROM.write(15, RXantenna);
if (BAND == 15) EEPROM.write(16, TXantenna);

if (BAND == 17) EEPROM.write(17, RXantenna);
if (BAND == 17) EEPROM.write(18, TXantenna);

if (BAND == 20) EEPROM.write(20, RXantenna);
if (BAND == 20) EEPROM.write(21, TXantenna);

if (BAND == 30) EEPROM.write(30, RXantenna);
if (BAND == 30) EEPROM.write(31, TXantenna);

if (BAND == 40) EEPROM.write(40, RXantenna);
if (BAND == 40) EEPROM.write(41, TXantenna);

if (BAND == 80) EEPROM.write(80, RXantenna);
if (BAND == 80) EEPROM.write(81, TXantenna);

if (BAND == 160) EEPROM.write(160, RXantenna);
if (BAND == 160) EEPROM.write(161, TXantenna);
}


/////////////////////////////////////////////////////////////////////

void Reset() {                 // RESET memory in EEPROM
 lcd.setCursor(0, 1);
 lcd.print(" HOLD TO RESET");
 // erase all EEPROM contents  TODO !!!
 delay(2000);
  if ((analogRead(LeftPin)<512) and (analogRead(RightPin)<512))  { // Yes, we have a reset !
  lcd.setCursor(0, 1);
  lcd.print(" RESETTING ...    ");

 delay(1000);
      EEPROM.write(6, 0);
      EEPROM.write(7, 0);
      EEPROM.write(10, 0);
      EEPROM.write(11, 0);
      EEPROM.write(12, 0);
      EEPROM.write(13, 0);
      EEPROM.write(15, 0);
      EEPROM.write(16, 0);
      EEPROM.write(17, 0);
      EEPROM.write(18, 0);
      EEPROM.write(20, 0);
      EEPROM.write(21, 0);
      EEPROM.write(30, 0);
      EEPROM.write(31, 0);
      EEPROM.write(40, 0);
      EEPROM.write(41, 0);
      EEPROM.write(80, 0);
      EEPROM.write(81, 0);
      EEPROM.write(160, 0);
      EEPROM.write(161, 0);
 lcd.setCursor(0, 1);
 lcd.print(" RESTARTING ...    ");
  delay(1000);
    }
}

/////////////////////////////////////////////////////////////////////

void ReadButtons () {     // Detect antenna select buttons depressed


if ((analogRead(LeftPin)<512) and (analogRead(TXsimPin)>512) and (buttonpressed == 0)) {    // Left button depressed in RX mode
  tone(TonePin,2000);
  delay (20);
  noTone (TonePin);
  ButtonTime = millis ();
  buttonpressed = 1;
  if (BAND != 0) memorize = 1;
  clearindicator ();
  RXantenna = RXantenna -- ;
  if ((RXantenna == 0) or (RXantenna > 5 ))RXantenna = (6);
  RXindicator ();
  }

if ((analogRead(RightPin)<512) and (analogRead(TXsimPin)>512) and (buttonpressed == 0)   ) {    // Right button depressed in RX mode
  tone(TonePin,2000);
  delay (20);
  noTone (TonePin);
  ButtonTime = millis ();
  buttonpressed = 1;
  if (BAND != 0) memorize = 1;
  clearindicator ();
  RXantenna = RXantenna ++ ;
  if (RXantenna >= 7) RXantenna = (1);
  RXindicator ();
  }


if ((analogRead(LeftPin)<512) and (analogRead(TXsimPin)<512) and (buttonpressed == 0)) {    // Left button depressed in TX sim mode
  tone(TonePin,2000);
  delay (20);
  noTone (TonePin);
  ButtonTime = millis ();
  buttonpressed = 1;
  if (BAND != 0) memorize = 1;
  clearindicator ();
  TXantenna = TXantenna -- ;
  if ((TXantenna == 0) or (TXantenna > 5 ))TXantenna = (6);
  TXindicator ();
  }

if ((analogRead(RightPin)<512) and (analogRead(TXsimPin)<512) and (buttonpressed == 0)   ) {    // Right button depressed in TX sim mode
  tone(TonePin,2000);
  delay (20);
  noTone (TonePin);
  ButtonTime = millis ();
  buttonpressed = 1;
  if (BAND != 0) memorize = 1;
  clearindicator ();
  TXantenna = TXantenna ++ ;
  if (TXantenna >= 7) TXantenna = (1);
  TXindicator ();
  }


 //  Timers check
  if (millis () - ButtonTime > 300) { // Button press detect
   buttonpressed = (0);
    }

 // Memorize antenna
  if ((millis () - ButtonTime > memotime) and (memorize == 1)){ // Now memorize antenna after xxx ms
   memorize = 0;
   lcd.setCursor(15, 1);  // print MEMORY indicator
   lcd.write(3);

   if (TXantenna == 0) TXantenna = RXantenna;   // if TX antenna undefined, set TX antenna same as RX antenna
   WriteEEPROMvalues ();
    tone(TonePin,2000);
    delay (150);
    noTone (TonePin);
    delay (50);
    tone(TonePin,2000);
    delay (150);
    noTone (TonePin);

   lcd.setCursor(15, 1);  // erase M indicator
   lcd.print(" ");
   lcd.setCursor(0, 1);
   lcd.print("   ");
   lcd.setCursor(0, 1);
   if (BAND != 0) lcd.print(BAND,DEC);
   if (BAND == 0) lcd.print("Man");

    }


}
