Hi, Rod -
Here are a few pictures of my latest RockMite (20 meters) in its housing.
The housing is made of aluminum sheet stock held together with 1/8"
aluminum side rails.  The side-mounted legs swing down to provide a
comfortable operating height.  I built in an iambic paddle that slides
out of the case when it is in use.

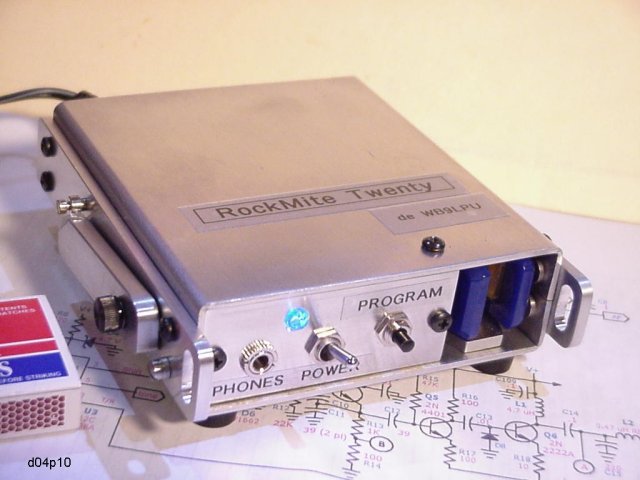

Picture #1 (d04p10) shows the unit with the legs folded away and the
paddle stowed.

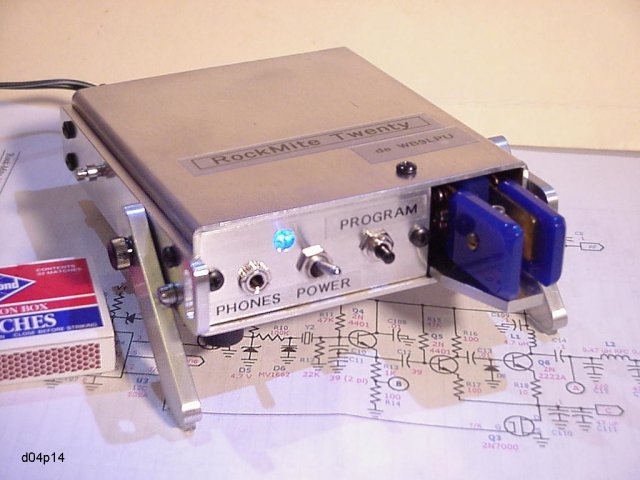

Picture #2 (d04p13) shows the unit opened up for business.  Phone jack
is on the front panel, and power, antenna, an an auxilliary key jack are
on the rear panel.  A switch on the rear panel was to switch in RF
attenuation as in my RM 40, but I found that I didn't need it.

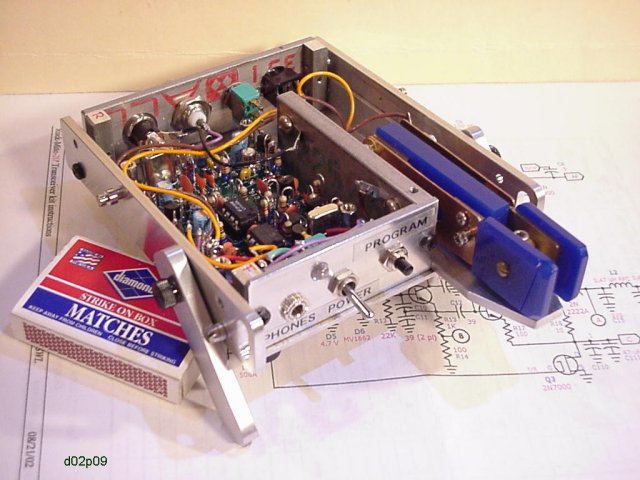

Picture #3 (d02p09) shows the unit with the cover off.  The paddles
slide in an out of a compartment, and a screw through the bottom
locks them in or out.


Rich, WB9LPU

(Be sure to check out Rich's 40m Rock-Mite)
