Welcome to the EchoLink Pictures Page. Below are the pictures of the N0DRC-L located in Raton, NM Grid DM76sv. Below the pictures are the decriptions of each numbered picture. More pictures will be added as we advance the system in Raton. Currently we are working to put the N0DRC-R on the N5BOP repeater located on Sierra Grande Mountain just East of Raton.

1

2

3

4

5

6

7

1. Icom F-121 Commercial VHF 50w Transmitter - Running EchoLink Station

2. 1/4 Wave Ground Plane Antenna #2 - Built on 7/25/2009

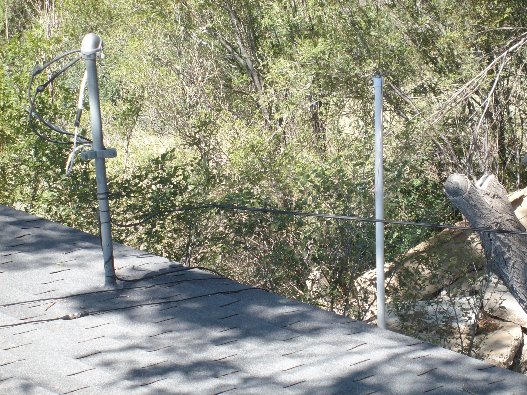

3. 1/4 Wave Ground Plane Anteanna #2 - Showing 2 Feed Lines Also

4. 1/4 Wave Ground Plane Antenna #2 - With 3 Feed Lines In Background

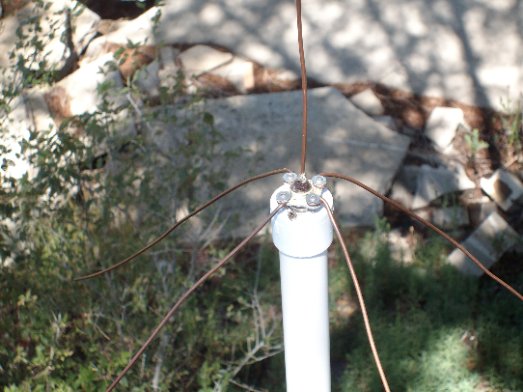

5. 1/4 Wave Ground Plane Antenna #1 with 8ft PVC pipe mast.

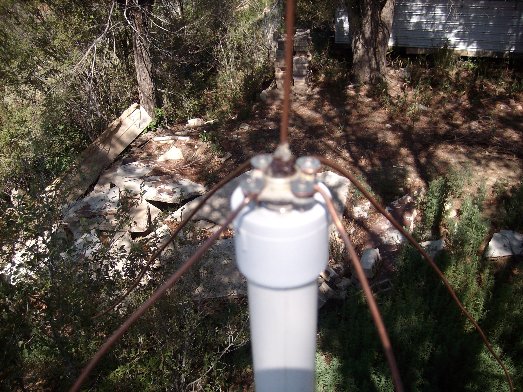

6. 1/4 Wave Ground Plane Antenna #1 close up.

7. 1/4 Wave Ground Plane Anteanna #1 on East side of the house.

Below are pictures of the surrounding area from the antenna site.

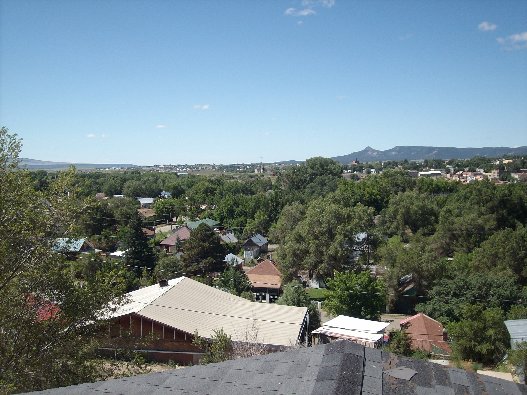

1 Looking South from the Antenna Site (Below)

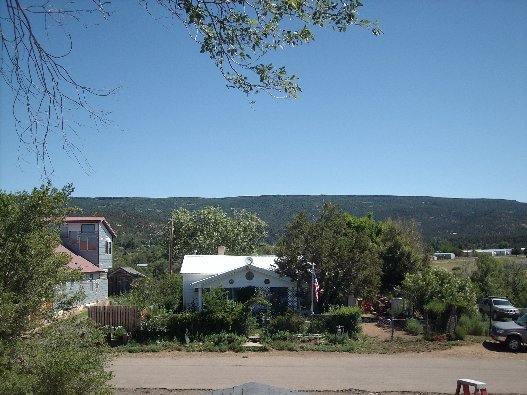

2 Looking North from the Antenna Site (Below)

3 Looking East from the Antenna Site (Below)

4 Looking West from the Antenna Site (Below)

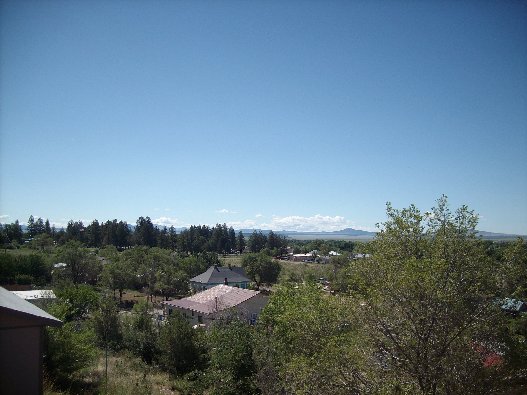

5 Looking SouthEast from Antenna Site (Below)

More pictures are to come with the advancement of the system in Raton. Please be sure to check back often to see the new pictures.
