1960's Eico adds.

324 Signal Generator
Portable Eico signal generator model 324. Size: High 9 " Length 10 " Width 5 " Diameter - " WEIGHT : 8.8 Lbs.
Supplementary photos

Eico 710 Grid dip meter, 7 plug-in coils.

Eico Model 717 Electronic Keyer from the 1960's. According to the manual "capable of keying a CW transmitter with perfect machine-like Morse Code at speeds ranging from 3 to over 75 words per minute."
Supplementary photos

Eico 720 CW Transmitter.
Supplementary photos

722 VFO to Eico 720 Transmitter.

723 Eico 60 watt C.W. Transmitter.
Supplementary photos

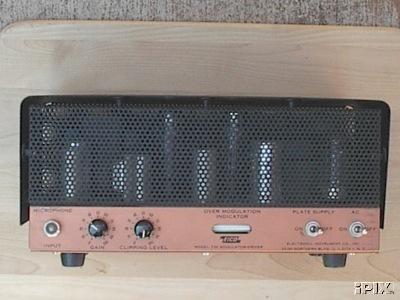

730 Modulator to Eico 720 Transmitter. Introduced in 1960 the Eico 730 is an excellent plate modulator. With it you can add high-level AM to any 50 to 90 watt tube-type transmitter. It will drastically improve the AM capabilities of a DX-40, DX-60 or Globe Scout, and add phone capabilities to a Viking Adventurer, Viking Navigator, DX-20, Globe Chief, Eico 723 or Eico 720. The modulator features a 12AX7 speech amplifier stage, a 6AL5 clipper, a 6AN8 interstage buffer and phase inverter, and a pair of EL34/6CA7 modulators. The modulators are excellent performers with solid high-fidelity characteristics. And the modulation transformer offers multiple impedance taps for matching a wide range of transmitter plate impedances. It also has a tertiary winding for magnetically coupled negative feedback that reduces distortion significantly.
Supplementary photos

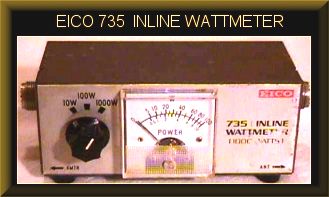

Eico 735 watt meter. It has 10 watt 100 watt, and 1000 watt scales. It measures 4 3/4" wide x 2 1/4" tall x 2 1/4" deep.

Eico 753 short wave ham transceiver. It covers 80-40-20 meters on SSB, CW and AM.
Supplementary photos
