VHF/UHF WSPR Propagation Study

Observations of Radio Propagation above 50 MHz using WSPR (Weak Signal Propagation Reporter Network)

by Dr. Carol F. Milazzo, KP4MD (posted 14 June 2012) last update 21 Apr 2014
E-mail: [email protected]

Check William Hepburn's Tropospheric Ducting Forecasts for the latest VHF propagation conditions.

Pacificon/ARRL National Convention VHF/UHF WSPR Slideshows

2 Meter WSPR Online Discussion Group         VHF/UHF WSPR Station Data

Under
                  Construction

California coastal range mountains that
                      obstruct the 80 mile radio path under study
                      include the Sugarloaf Ridge immediately east of
                      Santa Rosa, California and the Berryessa Blue
                      Ridge Mountain area, both with elevations ranging
                      from 1,600 to 2,000 feet.

1. California coastal range mountains that obstruct the initial 80 mile radio path under study include the Sugarloaf Ridge immediately east of Santa Rosa, California and the Berryessa Blue Ridge Mountain area, both with elevations ranging from 1,600 to 2,000 feet.


View 2 meter WSPR Propagation Study in a larger map

2. WSPR Propagation study paths.  W7PUA-N6KOG 482 miles from NW Oregon to the central California valley.  N6GN/K6PZB-KC6KGE 292 miles over coastal range summits.  N6KOG-N3IZN 385 miles through central California valley and over San Bernardino Mountains.  Interactive map link  Google Earth KML file

The Radio Mobile Online application</a>
                      produced thiscombined coverage map for the West
                      Coast 2 meter WSPR study group stations.  At
                      least one of our stations should be heard on
                      144.4905 MHz at locations fromSouthwest Washington
                      through California from Redding tothe Grapevine
                      and to San Diego.  The expected signal to
                      noise ratio isgreater than -20 dB in the yellow
                      areas and less than-20 dB in the orange areas.

3. The Radio Mobile Online application produced this combined coverage map for the West Coast 2 meter WSPR study group stations.  At least one of our stations should be heard on 144.4905 MHz at locations from Southwest Washington state through California from Redding to the Grapevine and to San Diego.   The expected signal to noise ratio is greater than -20 dB in the yellow areas and less than -20 dB in the orange areas.

Northern California Stations in 2 meter WSPR
                      Propagation Study. The path distances between
                      Sacramento (KP4MD), Santa Rosa (N6GN) and Milpitas
                      (KI6STW) are similar. There are no apparent high
                      elevations obstructing the path from Santa Rosa to
                      Milpitas. Mt. Allison (Elev. 2664 ft) in the
                      Monument Peak Ridge is 3 miles away from Milpitas
                      and directly obstructs the path to Sacramento. The
                      Sugarloaf Ridge and Blue Ridge-Berryessa areas
                      average 1800-2000 ft elevation and obstruct the
                      path from Santa Rosa to Sacramento.

4. Northern California Stations in 144 MHz WSPR Propagation Study. The path distances between Sacramento (KP4MD-WW8L), Santa Rosa (K6PZB-N6GN) and Milpitas (KI6STW) are similar. There are no apparent high elevations obstructing the path from Santa Rosa to Milpitas. Mt. Allison (Elev. 2664 ft) in the Monument Peak Ridge is 3 miles away from Milpitas and directly obstructs the path to Sacramento. The Sugarloaf Ridge and Blue Ridge-Berryessa areas average 1800-2000 ft elevation and obstruct the path from Santa Rosa to Sacramento.

6 June 2012 - N6GN copied on 144 MHz WSPR.
                      The steep diagonal traces on the waterfall are
                      Doppler images from passing aircraft. Time lapse
                      videos are posted
athttp://www.youtube.com/watch?v=dONYx4Nu7nQ&list=PLDA3BC512C27B3EB6&feature=plpp_play_all

5. 6 June 2012 - N6GN WSPR signals received at KP4MD. The steep diagonal traces on the waterfall are reflected signals from passing aircraft subject to Doppler shift.1  N6GN has observed that Doppler reflections near the signal frequency for about 20% of each two minute transmission window often cause WSPR signal decoding failure.

6. Time lapse screen captures of contacts among 144 MHz WSPR propagation study stations. All spot reports consisting of time, signal to noise ratio, time segment shift, frequency and drift received at the study stations are uploaded to a database at WSPRnet.org.2

11 June 2012 0700 UTC - N6GN signals tonight
                      are up to -10 dB SNR, after the winds have calmed,
                      I suspect we are now seeing some enhancement from
                      the tropo predicted by Hepburn.

7. 11 June 2012 0700 UTC - N6GN signals tonight are up to -10 dB SNR, after the winds have calmed, I suspect we are now seeing some tropospheric enhancement predicted by Hepburn on http://www.dxinfocentre.com/tropo_wam.html3

Hepburn Tropo Index 1200 UTC June 14, 2012.

8. Hepburn Tropospheric Index 1200 UTC June 14, 2012.

Hepburn Tropo Index 1200 UTC June 15, 2012.

9. Hepburn Tropospheric Index 1200 UTC June 15, 2012.

10. WSPRnet Spot Reports of KP4MD Signal to Noise Ratio (SNR) at N6GN June 11-17, 2012. Compare with the previous Tropospheric Forecast Maps for those dates. The dip in signal strengths on 15 June appears to coincide with the absence of tropospheric enhancement over the signal path on that date.

Early
                    morning heating of the upper troposphere over a
                    valley as a source of propagation enhancement. The
                    temperature inversion at the boundary of the warm
                    air and the cool air can support VHF and UHF radio
                    wave propagation to hundreds of kilometers beyond
                    the line of sight.

11. Early morning heating of the upper troposphere over a valley as a source of propagation enhancement.4 The temperature inversion at the boundary of the warm air and the cool air can support VHF and UHF radio wave propagation to hundreds of kilometers beyond the line of sight.

View from 5500 foot elevation in the Sierra
                      Nevada Mountains of a temperature inversion over
                      the San Joaquin Valley in central California.

12. A view from 5,500 feet elevation in the Sierra Nevada Mountains of a temperature inversion over the San Joaquin valley in central California.

The circuit between KP4MD in Sacramento and
                      KI6STW in Milpitas is usually blocked by a ridge
                      of mountains near KI6STW

13. The circuit between KP4MD in Sacramento and KI6STW in Milpitas is usually blocked by a ridge of mountains near KI6STW.

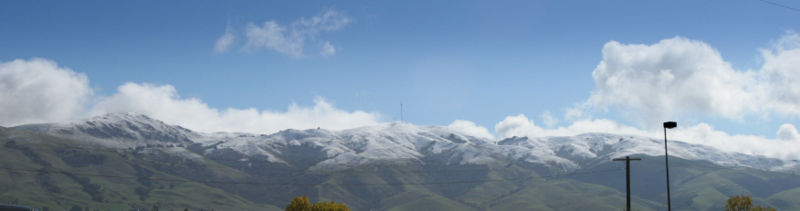

Monument Peak, Mt. Allison (2700 ft
                      elevation) and Mission Peak are 3 miles away from
                      KI6STW and lie directly in the path toward
                      Sacramento

14. Monument Peak, Mt. Allison (2700 ft elevation) and Mission Peak are 3 miles away from KI6STW and lie directly in the path toward Sacramento.

15. On 2 July 2012 KP4MD's 144 MHz WSPR signals at KI6STW were up from -28 at 0216 UTC peaking to -19 dB SNR at 0500-0700 UTC, concurrent with Hepburn's forecast predicted tropo enhancement in the Sacramento Valley at 0600 UTC.

2 July 2012 0000 UTC - Tropo forecast before
                      enhancement event.
                      http://www.dxinfocentre.com/tropo_wam.html

16. 2 July 2012 0000 UTC - Tropo forecast before enhancement event.
http://www.dxinfocentre.com/tropo_wam.html

2 July 2012 0600 UTC - Tropo propagation
                      enhancement forecasted in the Sacramento valley at
                      the time KP4MD signals peaked at
                      KI6STW.http://www.dxinfocentre.com/tropo_wam.html

17. 2 July 2012 0600 UTC - Tropo propagation enhancement forecasted in the Sacramento valley at the time KP4MD signals peaked at KI6STW.
http://www.dxinfocentre.com/tropo_wam.html

2 July 2012 1200 UTC - Tropo propagation
                      enhancement in the Sacramento valley abated
                      concurrent with the decline of KP4MD signals
                      received at
                      KI6STW.http://www.dxinfocentre.com/tropo_wam.html

18. 2 July 2012 1200 UTC - Tropo propagation enhancement in the Sacramento valley abated concurrent with the decline of KP4MD signals received at KI6STW. http://www.dxinfocentre.com/tropo_wam.html

4 July 2012 - First 144 MHz WSPR contacts
                      established over 290 mile circuit with KC6KGE in
                      Taft, California

19. 4 July 2012 - First 144 MHz WSPR contacts established over 290 mile circuit with KC6KGE in Taft, California.

5 July 2012 - Further 144 MHz WSPR contacts
                      established with KC6KGE in Taft, California

20. 5 July 2012 - Further 144 MHz WSPR contacts established with KC6KGE in Taft, California.

19 July 2012 - Strong 2 meter WSPR signals
                      received at KP4MD from KC6KGE in Taft, CA 265
                      miles away. Hepburn predicted tropospheric
                      enhancement around station KC6KGE in Taft,
                      California at 1800 UTC on 18 July and again at
                      0600 UTC on 19 July

21. 19 July 2012 - Strong 2 meter WSPR signals received at KP4MD from KC6KGE in Taft, CA 265 miles away. Hepburn predicted tropospheric enhancement around station KC6KGE in Taft, California at 1800 UTC on 18 July and again at 0600 UTC on 19 July.

22. 18 July 2012 - KC6KGE's 144 MHz WSPR Signal to Noise Ratio at KP4MD was up from -33 dB at 1040 UTC peaking to -18 dB SNR at 1726 UTC, and again to -10 dB at 0314 UTC on 19 July 2012.

18 July 2012 - Hepburn predicted tropospheric
                      enhancement around KC6KGE's area on 18 July 2012
                      at 1800 UTC.
                      http://www.dxinfocentre.com/tropo_wam.html

23. 18 July 2012 - Hepburn predicted tropospheric enhancement around KC6KGE's area on 18 July 2012 at 1800 UTC. http://www.dxinfocentre.com/tropo_wam.html

19 July 2012 - Hepburn predicted tropospheric
                      enhancement around KC6KGE's area again on 19 July
                      2012 at 0600 UTC.

24. 19 July 2012 - Hepburn predicted tropospheric enhancement around KC6KGE's area again on 19 July 2012 at 0600 UTC. http://www.dxinfocentre.com/tropo_wam.html

12 July 2012 - On http://planefinder.net N6GN
                      noticed a FedEx flight, southbound on a path that
                      took it about 8 miles east of Santa Rosa at about
                      13K feet. The plane took a turn to the east,
                      starting about Petaluma on this path.

25. 12 July 2012 - On http://planefinder.net N6GN noticed a FedEx flight, southbound on a path that took it about 8 miles east of Santa Rosa at about 13K feet. The plane took a turn to the east, starting about Petaluma on this path.

12 July 2012 - At 0444 UTC, when the FedEx
                      plane flew overhead, a trace from KI6STW shows
                      such a strong aircraft scatter (ACS) component
                      that it didn't decode. Furthermore, the reason for
                      the lack of decode was that the ACS components
                      were quite close to transmitted frequency for a
                      significant portion of the 2 minutes, particularly
                      at the start. Since this aircraft was flying
                      almost exactly along the path between the two
                      stations, the indirect path length wasn't changing
                      much. As the turn progressed, the path started
                      getting longer to both N6GN and KI6STW from the
                      aircraft and the ACS (Doppler) component dropped
                      in frequency.

26. 12 July 2012 - When the FedEx plane flew overhead at 0444 UTC, a trace from KI6STW shows such a strong aircraft scatter (ACS) component that it didn't decode. Furthermore, the reason for the lack of decode was that the ACS components were quite close to transmitted frequency for a significant portion of the 2 minutes, particularly at the start. Since this aircraft was flying almost exactly along the path between the two stations, the indirect path length wasn't changing much. As the turn progressed, the path started getting longer to both N6GN and KI6STW from the aircraft and the ACS (Doppler) component dropped in frequency.

27. ‎12 Aug 2012 - 0725 - 1430 UTC - 144 MHz WSPR Study (Perseid Meteor Shower) A few very bright, long and steep descending Doppler echoes at 0726 and 0758 are probably aircraft scatter (ACS). The much shorter duration traces at 0916, 1052 and 1138 may be meteor echoes. The ACS echoes increase rapidly after 1250 due to local air traffic.

Suspected aircraft wingtip vortex echoes
                      detected at station KE6GLA at 2058 and 2108 UTC on
                      2 meter WSPR signals.

28. 11 Aug 2012 - Suspected aircraft wingtip vortex echoes detected at station KE6GLA at 2058 and 2108 UTC on 2 meter WSPR signals.

Suspected aircraft wingtip vortex echoes
                      detected on 2 meter WSPR signal at station N6GN.

29. Suspected aircraft wingtip vortex echoes detected on 2 meter WSPR signal at station N6GN.

02 Oct 2012 1338 UTC - Spectran analysis of
                      the final 80 seconds of N6YG 2 meter WSPR signal
                      showing the discrete tones and about 25 Hz
                      negative frequency drift over the period. Moving
                      symmetric side images 35 dB down from main signal
                      are observed. The corresponding WSPR waterfall
                      segment is on the right.

30. 02 Oct 2012 1338 UTC - Spectran analysis of the final 80 seconds of a 2 meter WSPR signal showing the discrete tones.  This signal did not decode due to the 25 Hz negative frequency drift over the period. Moving symmetric side images 35 dB down from main signal are observed. The corresponding WSPR waterfall segment is on the right.

N6GN engineered this GPS disciplined
                      frequency reference for selected stations in our
                      West Coast VHF/UHF WSPR Study Group. It provides a
                      10 MHz reference as well as a GPS disciplined
                      substitute for the master oscillator or local
                      oscillator of various commercial transceivers or
                      transverters. Leo Bodnar Electronics now sells a similar device.

31. N6GN engineered this GPS disciplined frequency reference for selected stations in our West Coast VHF/UHF WSPR Study Group.  It provides a 10 MHz reference as well as a GPS disciplined substitute for the master oscillator or local oscillator of various commercial transceivers or transverters.  The discussion thread can be read here. Leo Bodnar Electronics now sells a similar device.

A typical Elecraft XV144 transverter
                      modification for GPS frequency reference. The 47Ω
                      resistor suppresses the 116 MHz crystal
                      oscillations and Q1 functions to amplify the
                      external 116 MHz reference signal.

32. A typical Elecraft XV144 transverter modification for the GPS10V frequency reference. The 47Ω resistor suppresses the 116 MHz crystal oscillations and Q1 functions to amplify the external 116 MHz reference signal.

The Elecraft XV144's internal local
                      oscillator with crystal oven option had exhibited
                      3-4 Hz frequency drift during 2 minute WSPR
                      transmissions and long term frequency instability
                      with ambient temperature variation. This frequency
                      instability and drift was eliminated with the
                      GPS10 frequency reference.

33. The Elecraft XV144's internal local oscillator with crystal oven option had exhibited 3-4 Hz frequency drift during 2 minute WSPR transmissions and long term frequency instability with ambient temperature variation. This frequency instability and drift was eliminated with the GPS10 frequency reference.

The KC6KGE station antenna in Taft,
                      California. Cushcraft A144-11 Yagi 20 feet with
                      15.3 dBi gain. Effective isotropic radiated power:
                      526 watts (57 dBm)

The KC6KGE station antenna in Taft, California.
Cushcraft A144-11 Yagi at 20 feet with 15.3 dBi gain.
Effective isotropic radiated power: 526 watts (57 dBm)

The KI6STW station antenna in Milpitas,
                      California. Two stacked M2 HO loops at 20 feet
                      with 10.14 dBi gain. Effective isotropic radiated
                      power: 62 watts (48 dBm)

The KI6STW station antenna in Milpitas, California.
Two stacked M2 HO loops
at 20 feet with 10.14 dBi gain.
Effective isotropic radiated power: 62 watts (48 dBm)

The antenna at station KP4MD in Citrus
                      Heights, CA.  Two stacked halos at 14 feet
                      and 18 feet with 7.88 dBi theoretical gain.

The KP4MD station antennas in Citrus Heights, California.
Two stacked halos
at 14 feet and 18 feet with 7.88 dBi theoretical gain.  Effective isotropic radiated power: 212 watts (53 dBm).
5 element 432 MHz Yagi with 10 dBi gain (not shown).  Effective isotropic radiated power: 315 watts (55 dBm).

The K6PZB station antenna in Graton,
                      California. Cushcraft 13B2 13 element yagi at 20
                      feet with 18 dBi theoretical gain. Effective
                      isotropic radiated power: 2,877 watts (65 dBm).

The K6PZB station antenna in Graton, California. Cushcraft A13B2 13 element Yagi at 20 feet with 15.8 dBi theoretical gain. Effective isotropic radiated power: 1,734 watts (62 dBm).

The KE6GLA station antenna in El Dorado
                      Hills, California. M2 EB-144 Eggbeater at 30 feet
                      with 6 dBi theoretical gain. Effective isotropic
                      radiated power: 32 watts (45 dBm).

The KE6GLA station antenna in El Dorado Hills, California. M2 EB-144 Eggbeater (at left) at 30 feet with 6 dBi theoretical gain. Effective isotropic radiated power: 32 watts (45 dBm).

The N6GN station antenna in Santa Rosa,
                      California. 4 element Yagi (at right) at 20 feet
                      with 10 dBi gain. Effective isotropic radiated
                      power: 40 watts (46 dBm).

The N6GN station antennas in Santa Rosa, California. 4 element 144 MHz Yagi (at right) at 20 feet with 9 dBi gain. Effective isotropic radiated power: 40 watts (46 dBm).
6 element 432 MHz Yagi (at left) 10.2 dB gain.  Effective isotropic radiated power: 315 watts (55 dBm).

The WA6LIE station antenna in Salinas,
                      California. Cushcraft 13B2 13 element yagi at 40
                      feet with 18 dBi theoretical gain. Effective
                      isotropic radiated power: 380 watts (56 dBm).

The WA6LIE station antenna in Salinas, California. Cushcraft A13B2 13 element Yagi at 40 feet with 15.8 dBi theoretical gain. Effective isotropic radiated power: 380 watts (56 dBm).

The KD6RF station antenna in Livermore,
                      California. VTenn UltraWide Band Vivaldi at 22
                      feet with 6.5 dBi gain at 144 MHz. Effective
                      isotropic radiated power: 89 Watts (50 dBm). Above
                      it is an Arrow 4 element 144 MHz Yagi antenna.

The KD6RF station antenna in Livermore, California. VTenn UltraWide Band Vivaldi at 22 feet with 6.5 dBi gain at 144 MHz. Effective isotropic radiated power: 89 Watts (50 dBm).
Above it is an Arrow 4 element 144 MHz Yagi antenna.

World Wide 2 meter WSPR daily spot report activity has increased 100-fold since this study commenced in June 2012.

VHF/UHF WSPR Slideshow Presentation
from the Pacificon/ARRL National Convention  13 October 2012.

VHF/UHF WSPR Slideshow Presentation #1
from the ARRL Pacificon Convention  12 October 2013.

VHF/UHF WSPR Slideshow Presentation #2
from the ARRL Pacificon Convention  12 October 2013.

VHF/UHF WSPR Study Station Data

*EIRP = Effective isotropic radiated power

2 Meter WSPR Discussion Group

REFERENCES

  1. Aircraft Scatter (ACS), Larsson I, SM6FHZ
  2. WSPRnet.org
  3. Hepburn's Tropospheric Ducting Forecasts
  4. California Temperature Inversions, Iacobellis et al.
  5. 144 MHz Propagation Study across the Alps
  6. 144 MHz WSPR Operations in Australia

LINKS

  1. 2 Meter WSPR Discussion Group
  2. 144 MHz WSPR Study Photo Album
  3. 144 MHz WSPR Study Spot Database
  4. 144 MHz WSPR Study Videos - KP4MD
  5. 144 MHz WSPR Study Videos - KC6KGE
  6. 144 MHz WSPR Study Videos - N6GN
  7. 2m WSPR (Radio Stability (M1GEO)
  8. Australian 2m WSPR Group
  9. Idiot's Guide to 144 MHz WSPR (VK3BQ)
  10. WSPR Propagation Study Paths Map
  11. Google Earth KML File
  12. Current WSPRnet 144 MHz Spot Reports
  13. WSPR Spot Report Analysis Spreadsheet with Charts

Return to KP4MD Home Page
Top
