KA1EKS
BagleyAmateurRadioClub in Lincoln, Maine. 147.000 Mhz LinkedRepeater
*** Where in the world is KA1EKS ?
For Tuscon Amateur Packet Radio Site for ALL your Packet Needs.
To get SV2AGW's Web site with lots of Packet
Goodies wow what a page!
See what Harold N1LLU is upto?!
ARRL Numbered Radiogram
Messages
List
of Katahdin Area Repeaters
Pictures 146.745
- 147.000 - 144.390
28.2665Mhz - ID = de ka1eks/bcn

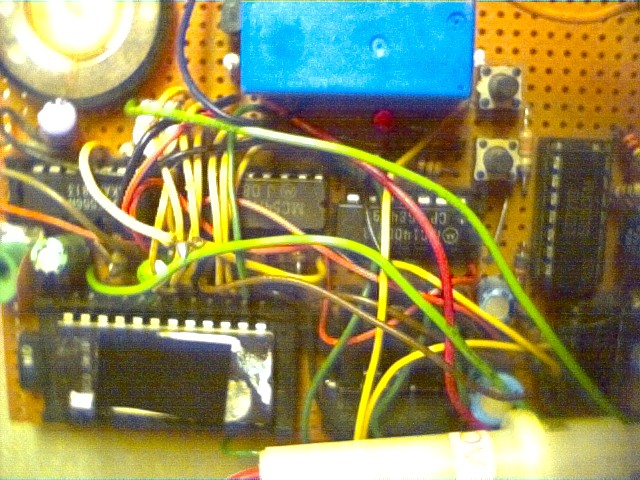

The 10m beacon was using a Homebrew 2716 EPROM id'er,
I have since retired it and now am using and a new id'er,
Its an ID-O-Matic
into a Teaberry 'T'Bear 40Ch AM Converted CB - 4 watts into a Antron A-99 w/GP
145.250Mhz.(100hz) and 146.745Mhz.(100hz) (Both-600kc)
146.745 Now Located in East Millinocket

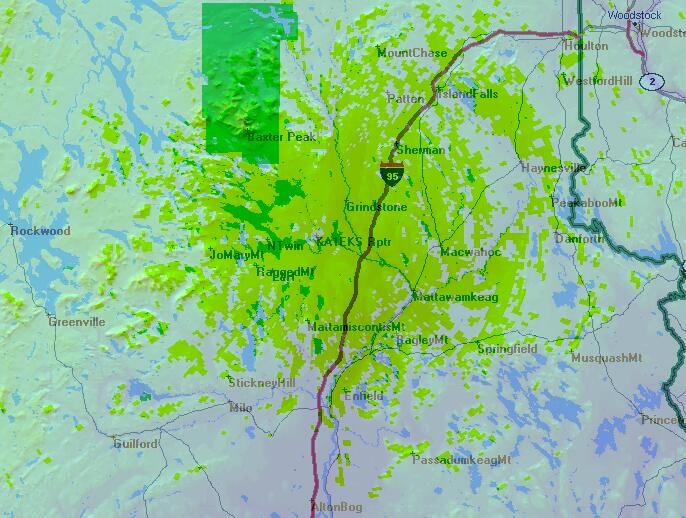

Approximate 146.745 Repeater Coverage Area +/-

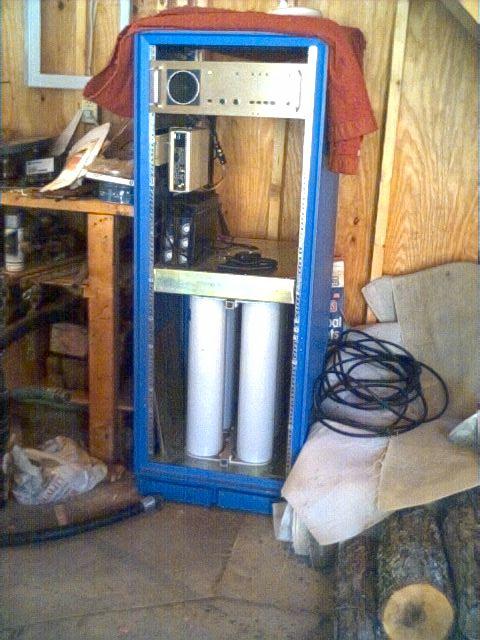

The 146.745Mhz Repeater is an ICOM RP-1510 50 watts with Wacom 639BpBr duplexer
using a NHRC-4 controller with a CSI-32 Community Tone Panel
At SouthTwin Lake is another Icom RP1510 on 145.250Mhz
which is on a 42ft tower links to AA1PN's 224.240Mhz Repeater
It uses the NHRC-6 controller with Two Wacom WP-430-3 Notch Cavities
Both Repeaters use Diamond F-23A Verticals fed with LMR-400 Coax.
Bagley Amateur Radio Club's Repeater
Special Thanks Goes to Ron Sirois KW1Q.
Located 860ft on Bagley Mountain Lincoln Maine
GE EXEC exciter feeding a 5watt drive amp to a 100watt Afterburner
GE Master Pro 6 Helical Resonator Receiver. Fed by a GaSFet Preamp
into Wacom WP-641 Duplexer then up 60ft
to the Phelps Dodge Station Master Antenna
linked to the KQ1L Network via 1.25M
using a ADI-220 mobile to Dixmont
into the Personalized DHAWKE 3element Super-Stainless-Steel Yagi
(which survived a complete tower failure)
Recently added a new link to Island Falls KB1JVQ 145.170 repeater.
using a Kenwood TM-331A into a homebrew 4 element 220mhz yagi
linked into a new CAT RLS-1000 4 port link controller.
449.275 Mhz Repeater K1AQ/R (OFF-AIR)
is a E.F.Johnson MT-684 Slightly Converted MobilePhone to Ham Bands
(which Johnson said could not be done)
uses a WB3ESS controller w/phone patch and link
into a Motorola 4-Can Duplexer and ShackMaster Vertical
located on Bagley Mountain.
KA1EKS is operating numerous APRS equiptment.
Tracker KA1EKS-14 is Rand McNally StreetFinderŽ GPS feeding data to a Kantronics KPC-3 with 8.2 Firmware into an Alinco DR-1200T and Larson 2m/440 mag-mount.
Home Station KA1EKS is a Kantronics KAM-E running WINAPRS2.85 HF/VHF GATEWAY on a PII450mmx Computer into HF TS-140s with R4 Vertical and VHF Alinco DR1200T into a Ringo Ranger II.
KA1EKS-8 is UIDIGI v1.9B3 for remote/local aprs
as STLAKE
KA1EKS-1 is using APRSCE in a HP Jornada PocketPC fed by a Garmin 45XL. an upgrade from Map-n-Go.
Wide/Relay/Trace (soon to be uidigi 1.9b3) in Lincoln Maine KA1EKS-6
is a Ramsey 2M Kit 4Watts at 860feet using UIDIGI 1.8B Firmware.
Coming
soon KB1JVP-2 uidigi at IslandFalls 145.170 Repeater site
All my uidigi's will soon be with the new-N Wn-ME paradigm 1.9b3 versions
HF Freq: 10.151Mhz. LSB 300baud
VHF Freq: 144.390Mhz FM 1200Buad
Yahoo - Google - Excite - Alta vista - Infoseek - Snap - Hotbot - Webcrawler - Northern light
www.alltheweb.com - www.n1bug.net - www.echolink.org - www.qsl.net/wawa
www.thatsracing.com - www.nascar.com -
Click on the Icon for the
"Howto" Page
You are visitor number since 03/12/98
Construction Zone!
Still working? No ,I'm just un-employed by
choice?!
links to UPC1230H2 ADI AR-247 220mhz COR Repeater Mod and Sony SW1S Repair
