Antenna Projects.
Here is some pictures of my latest antenna projects. Both of them are loops. One is for 6 meters and the other is for 2m. I have plans later on down the line for building more and stacking them, if I have room in the attic, where they currently are installed at!

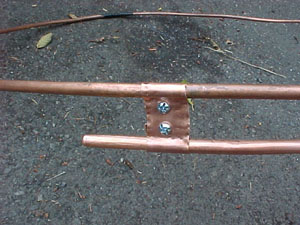

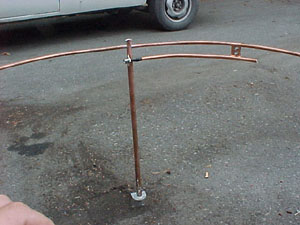

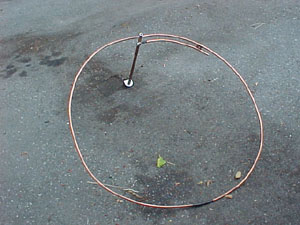

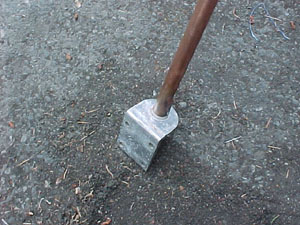

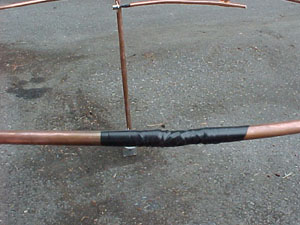

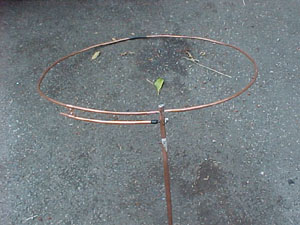

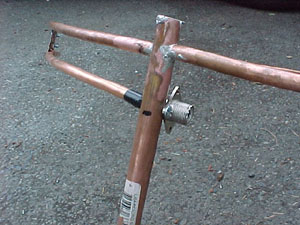

6 Meter Loop is constructed out of 3/8" soft copper tubing, 1/2 copper piping and an old CB mirror mount. After building this antenna I realized I needed some support so I added a few fiber glass rods for some much needed support.

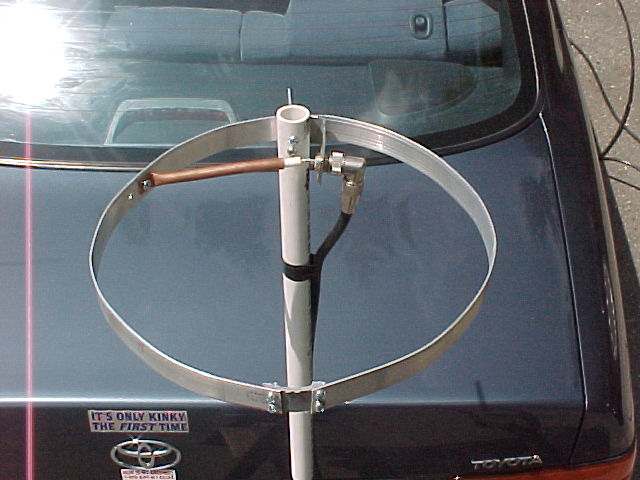

With 2 meter design, I used a little bit different route, this one was made out of 1/4" thick by 1" aluminun, that can be found at any hardware store. As you can see I used some 3/8" soft copper tubing for the gamma match and made a mounting bracket for the SO-239. Main concern I had with the mount was the coax being used is 9913 and since its not best to bend I used a 90 degree elbow. Finally the mast is made out of 1" schedule 40 PVC.
