K7EM - 3/3 40 Meter Yagi Array

3/3 - 40 Meter Stacked Array
CLICK ON THE IMAGES TO ENLARGE
		165 foot tower w/Phillystran guys The top antenna is at 160 feet and the bottom antenna is at 80 feet The 3 element full size yagis were made by DX Engineering (N0XX - Bill Sattler) Boom length 42 feet - longest element 73 feet. Each antenna weighs about 250lbs. Rotators are TIC General 1032 RingRotors

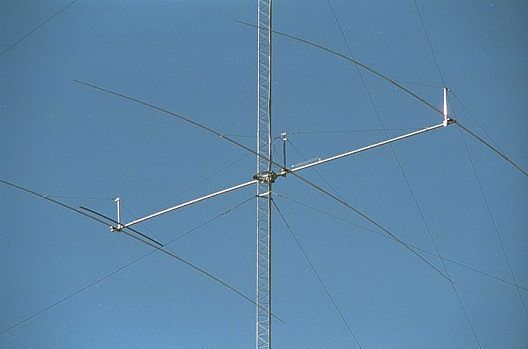

		3el 40m yagi at 80 feet

		The tower and antennas were all pre-assembled on the ground. The entire system (with the exception of the bottom antenna) was installed in one day using a hydraulic crane with a 172 foot maximum vertical lift capability. CLICK ON THE IMAGE FOR MORE INSTALLATION PHOTOS

		The RingRotor Model 1032 Visit TIC General's RingRotor Homepage CLICK ON THE IMAGE FOR MORE INSTALLATION PHOTOS
