The rig is an old FT-902DM with external VFO,
Tuner, Speaker and VHF transverter (not shown here). At the top left
is a Dentron Antenna tuner and at the top right is the Dentron Clipperton
L Amplifier (with four 572B tubes). |
|
This picture shows the antenna tuners that
I use for the horizontal vee antenna. The top is a 160 M "L" network,
bottom right is the 80 M "T" network and bottom left is a "T" network for
30 M. All parts scrounged at hamfests. The vee is 240 feet long each
leg and 60 feet high, fed with ladder line. |
|

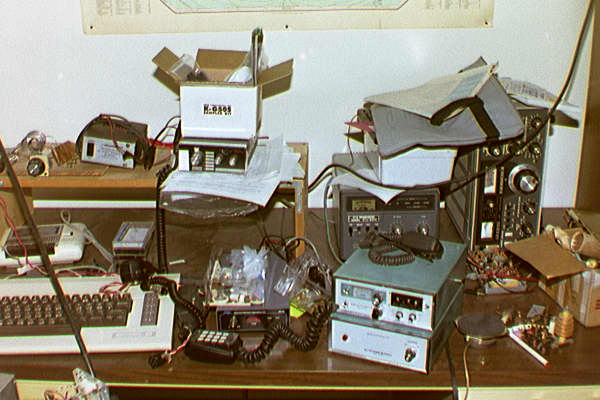

The Mess Corner. See the old FT-101B
on its side. The regency HR2B (still very much in use), the Heath
HW 2036, the packratt and Commodore 64 computer. The 6 meter antenna
tuner and the Yaesu transverter for 6 M, 2 M and 70 Cm. |
|
