TRANSMITTER

The transmitter is crystal controlled and has a frequency range of 3.5 to 18 MHz.
It uses a single valve type 6L6G wich works as Oscillator/Power amplifier.
The output power is 5-10 W.
The crystal can be plugged on the front. A milliammeter indicates the plate current while the antenna current is indicated by a lamp.
On the front there are also the TX/RX switch and the key lead.
The MKII type can work with frequency doubling.

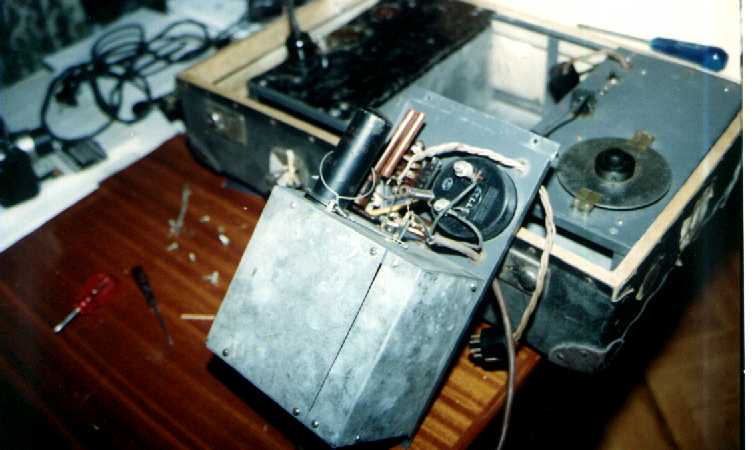

The TX section seen from the rear side. (LA3BI)

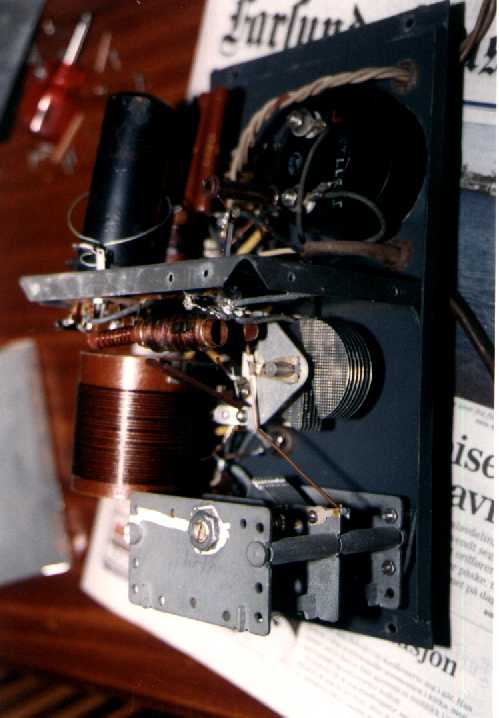

Close up of the transmitter section - The black tube is the  PA valve  6L6 type (Magne Lein - Norway)

The same set with the shields removed  (Magne Lein - Norway)

For this part are available the following drawings :

T-01 - Trasmitter Assy

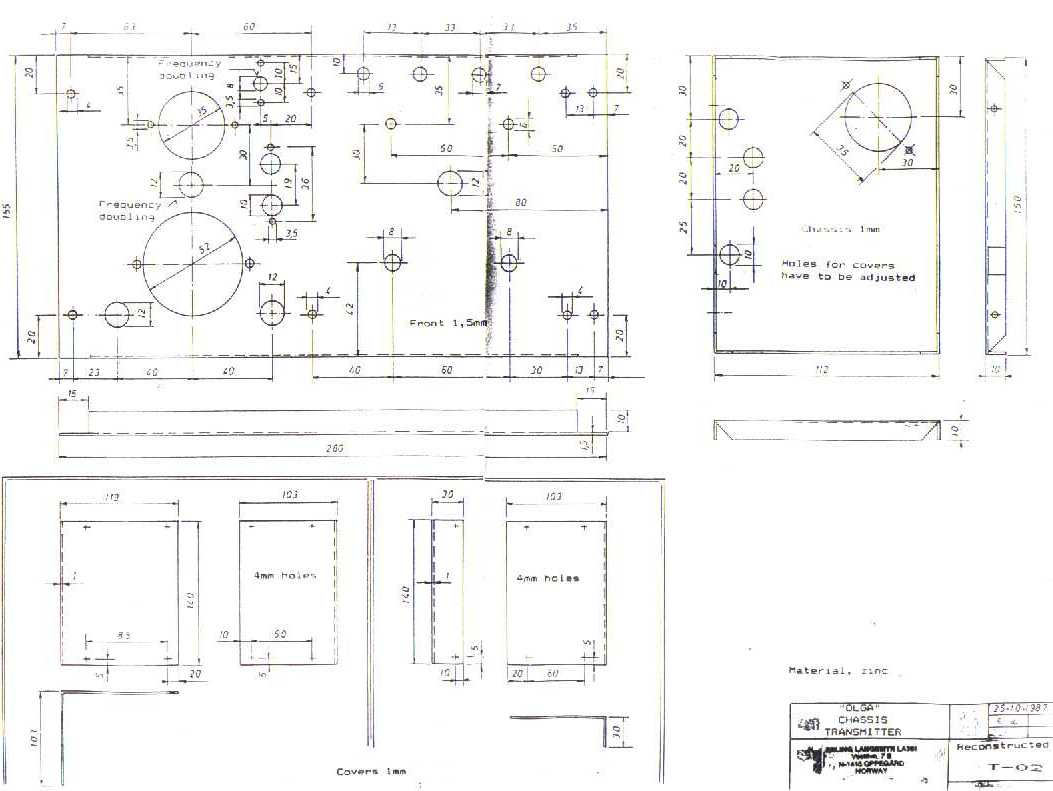

T-02 - Transmitter chassis

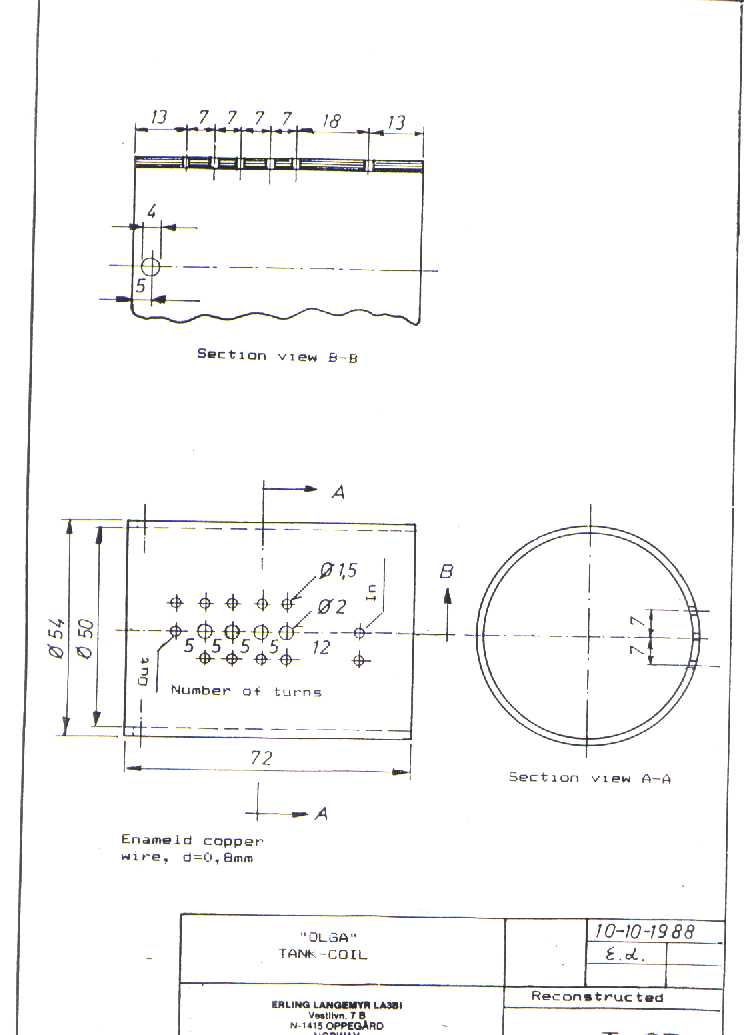

T-03 - Tank coil

and the schematics :

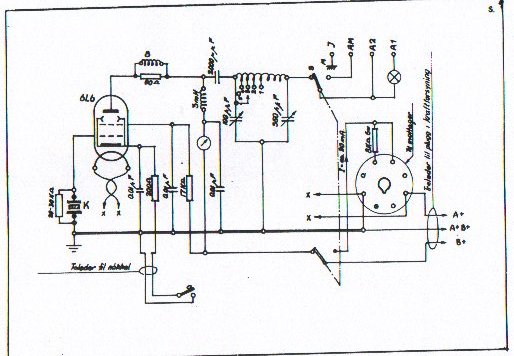

1) Type MKI
2) Type MKII
