6-El.-28-Ohm-70MHz-Yagi, DK7ZB
|
|

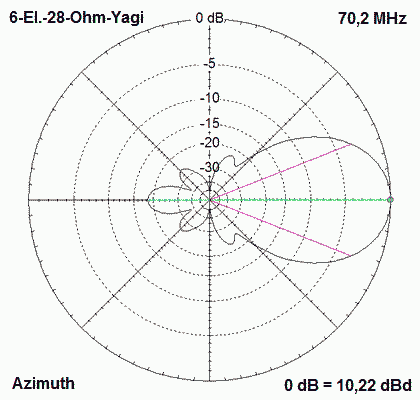

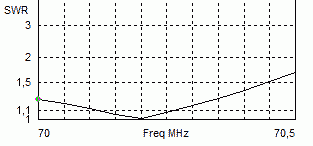

Gain 10.22 dBd F/B 19 dB Boomlength 5,10 m |

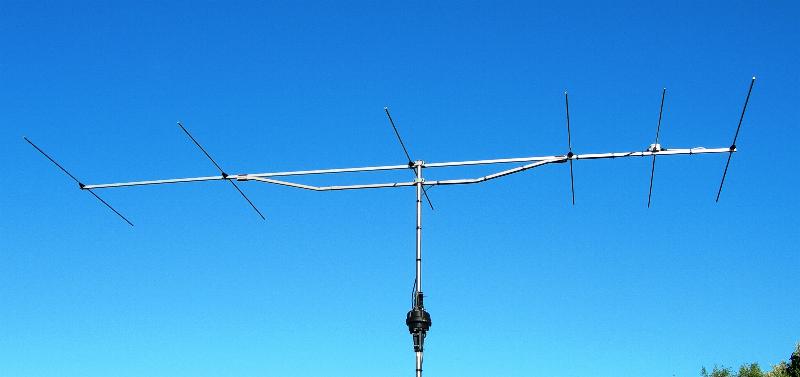

The 6-El.-Yagi was built by Graham, G8HVY (below the 4m-Yagi is a 6m-Yagi with the same design)
The Yagi built by Hans, ES5TAW. On the roof ES5JR as helper
Graham, G8VHY has "armed" to a stacked array of 2x6-El.-Yagis!
|
Elements |
Element-position |
Element-length (8mm) | Element-length (10mm) |
Element-length (12mm) |
|
Ref |
0mm |
2100mm | 2095mm |
2090mm |
Rad |
555mm |
2034mm | 2028mm | 2023mm |
|
Dir 1 |
1170mm |
1968mm | 1960mm | 1951mm |
|
Dir 2 |
2350mm |
1914mm | 1904mm | 1896mm |
|
Dir 3 |
3835mm |
1883mm | 1873mm | 1883mm |
| Dir 4 | 5105mm | 1863mm | 1853mm | 1863mm |
 |
 |
