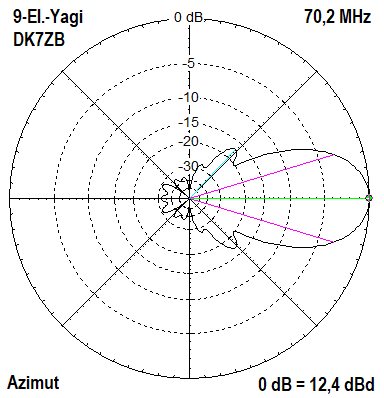

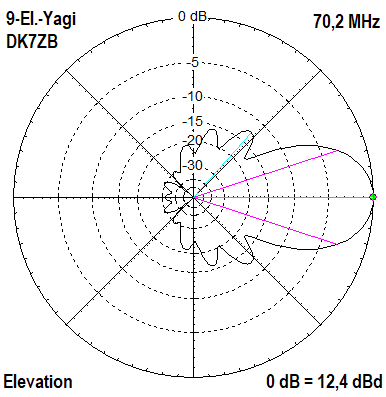

9-El.-28-Ohm-Yagi, Gain 12.4 dBd, F/B 30dB

The 9-El.-28-Ohm-Yagi, built by

Leonidas, SV2DCD

World-record on 70-MHz-ES:

4405 km

SV2DCD - CU8AO

12-July-2006



Congratulation for the worldwide first 70-MHz-TEP-QSO, starting in WSJT and then in SSB.

SV2DCD (KN00) had the TEP-QSO with the 9-El.-DK7ZB-Yagi on 29-Mar-2011 with ZS6WAB (KG46) over a distance of 7177 km.

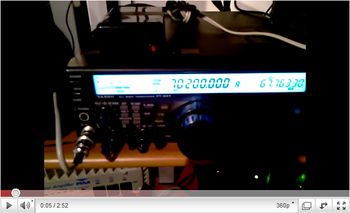

Click on the picture for the Youtube-video.

horizontal rule

The Yagi built by Christian, OZ2LD

Test at the VUSHF- Meeting in Denmark 2006

horizontal rule

The 9-El.-Yagi built by Phil, G3TCU

horizontal rule

Elements (12mm)

Element-position (mm)

Element-length (mm)

Ref

0

2110

Rad

715

2032

Dir 1

1180

1975

Dir 2

2225

1915

Dir 3

3625

1885

Dir 4 5280 1855
Dir 5 6990 1840
Dir 6 8690 1870
Dir 7 10000 1826
