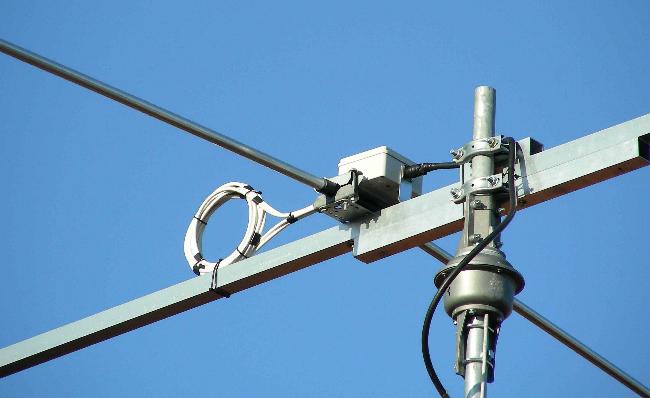

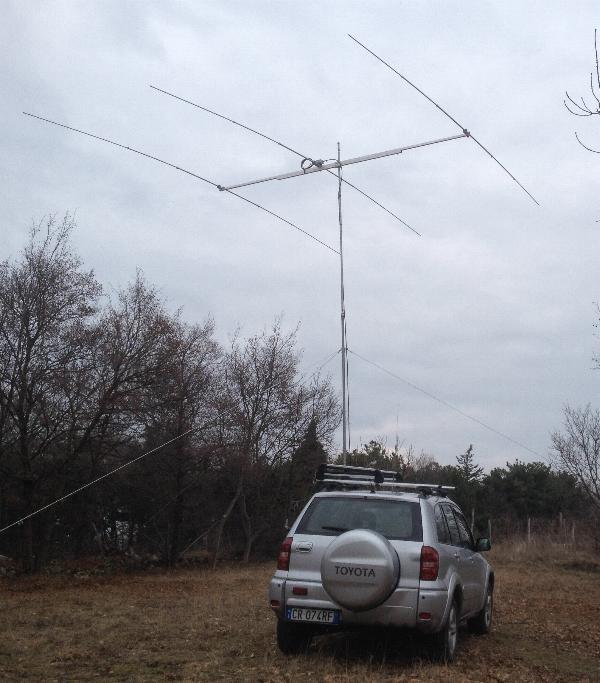

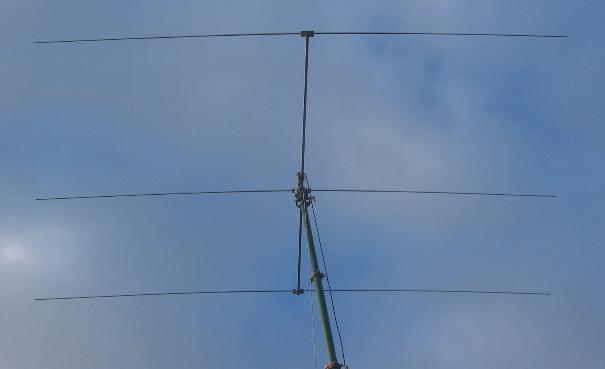

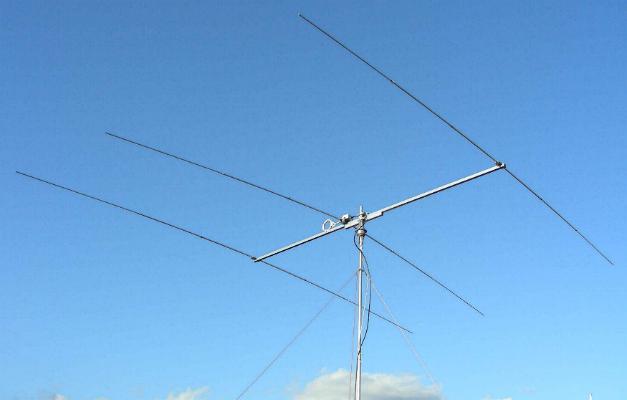

3-Element-15m-Yagi with 28Ohm

Boom 4,00m

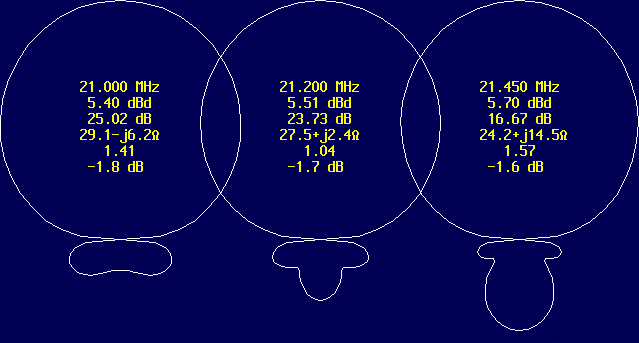

Short data for the Yagi at the begin, in the middle part and at the end of the band

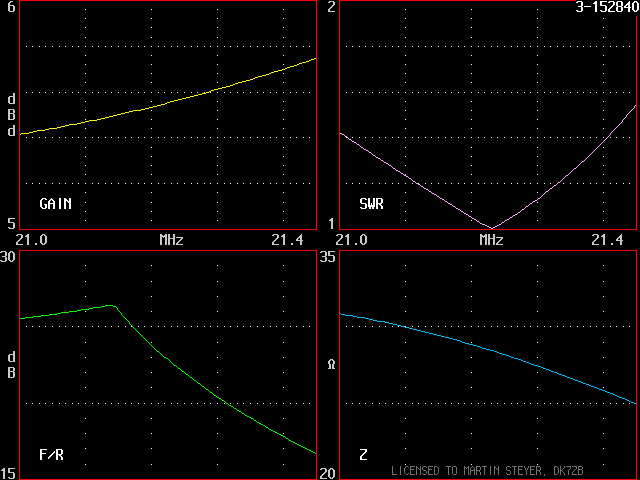

Plot with the NEC-II-reference of YO7.2 by K6STI

The meaning of the data :

Frequency, gain, F/R, radiation resistance (impedance), SWR and loss against a theoretical defined maximum- gain-Yagi with the given boomlength. Remember  that this gain is only available with very low impedance and extrem low bandwidth!

 Elements of the15m-28Ohm-Yagi, lengths for one element-half:



20x1,5mm

16x1,5mm

12x1mm

Position

Ref

1,00m

1,00m

1,70m

0m

Rad

1,00m

1,00m

1,485m

1,69m

Dir

1,00m

1,00m

1,255m

3,95m

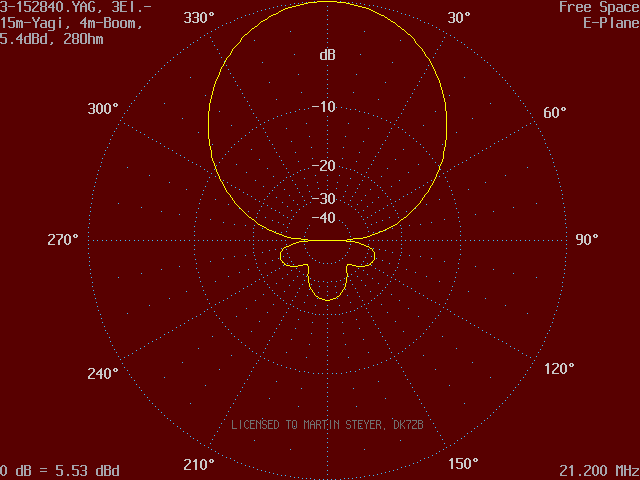

Azimuth-diagram (horizontal pattern):

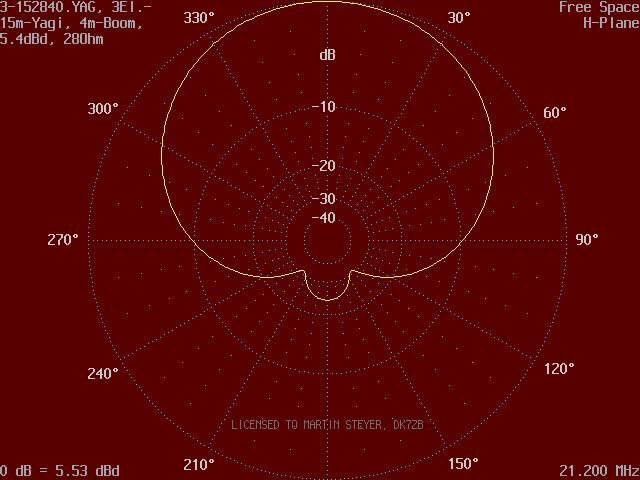

Elevation-diagram (vertical pattern):
