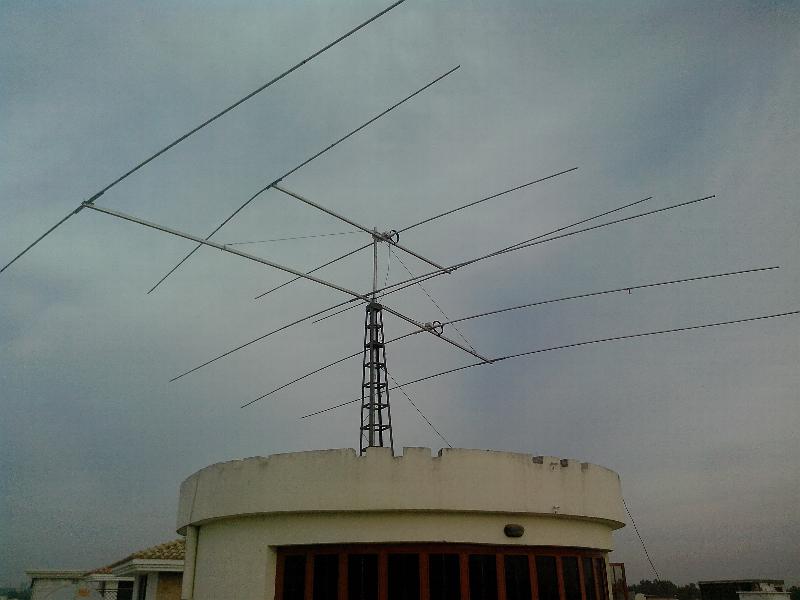

4-Element-20m-Yagi with 28Ohm

Boom 7,60m

Short data for the Yagi at the begin, in the middle part and at the end of the band

Plot with the NEC-II-reference of YO7.2 by K6STI

The meaning of the data :

Frequency, gain, F/R, radiation resistance (impedance), SWR and loss against a theoretical defined maximum- gain-Yagi with the given boomlength. Remember  that this gain is only available with very low impedance and extrem low bandwidth!

 Elements of the 4-El.-20m-28Ohm-Yagi, lengths for one element-half:



25x2mm

20x1,5mm

16x1mm

12x1mm

Position

Ref

1,50m

1,00m

1,00m

2,00m 0m

Rad

1,50m

1,00m

1,00m

1,855m 1,8m

Dir 1

1,50m

1,00m

1,00m

1,67m 3,4m

Dir 2

1,50m

1,00m

1,00m

1,375m 7,6m



Azimuth-diagram (horizontal pattern):

Elevation-diagram (vertical pattern):

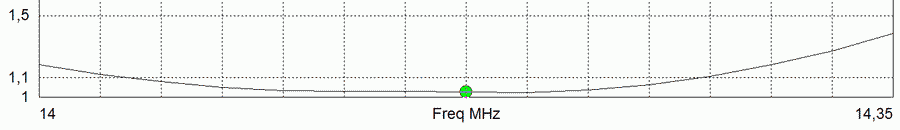

Gain, SWR, F/R and Z versus frequency:
