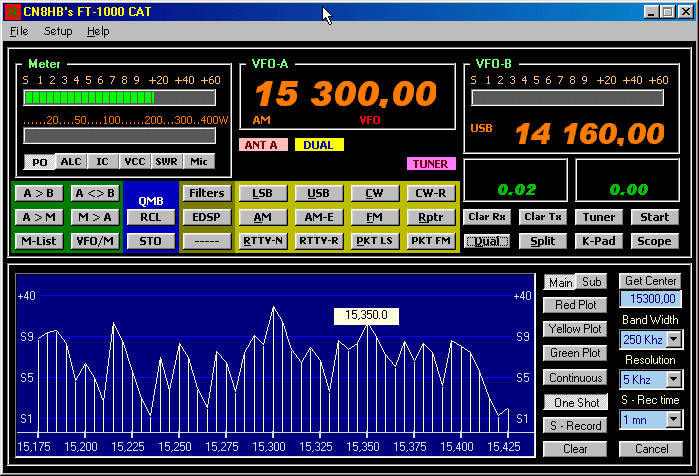

CN8HB's CAT-1000MP - MK-V (V1.2.0)

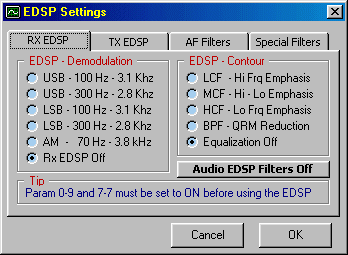

The EDSP Setting Panel

• This panel provides a way to quickly adjust the EDSP.

• Four Tabs provide quick access to the EDSP


  1. RX EDSP for the setting of the DSP demodulator

  2. TX EDSP for the setting of the DSP modulator

  3. AF Filters to adjust the Audio bandwidth

  4. Special filters for Data reception and DSP Notch & Noise processing

The Filter Display & Control Panel

• This panel is meant to display the status of the filters combination.

• It also allows to adjust the filters combination ''à la carte'' (this is not otherwise possible from the radio front panel).

• The display is also used as a keypad to select the filter.

• The optional filters status needs to be entered in a menu.

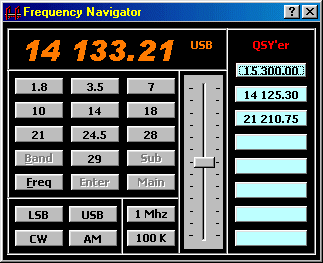

The QSYer provides an easy way of making QSYs.

• The frequency can be entered with the PC keypad ending with the < + > key for VFO-A and the < - > key for VF0-B.
• The band change can also be done with this panel.
• The Column of keys at the right side is used for the ''QMB'' function. Right click on any key and the actual frequency and its associated mode are loaded to the key. The frequencies will be saved upon exiting the program.

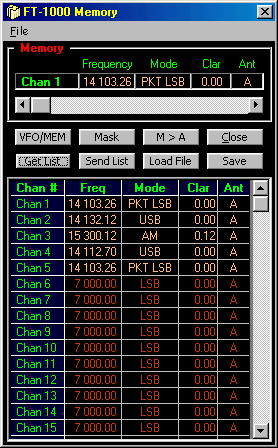

The Memory Panel

• This panel provides a way to quickly browse through all the channels.

• With the list deployed, it is possible to select a memory with a double click on any line.

• The content of the radio memory can be downloaded and saved on your PC

• Similarily, it is possible to reload the radio memory from the file on disk.

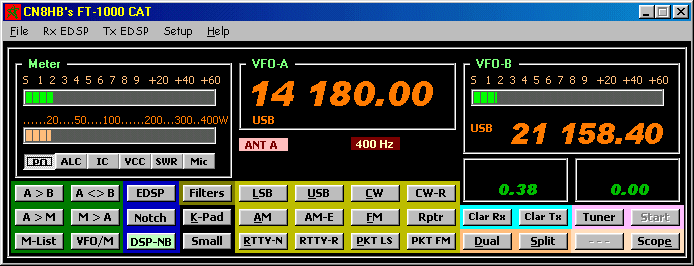

Main Window Scaling

For a basic utilization, the main window can be reduced.
