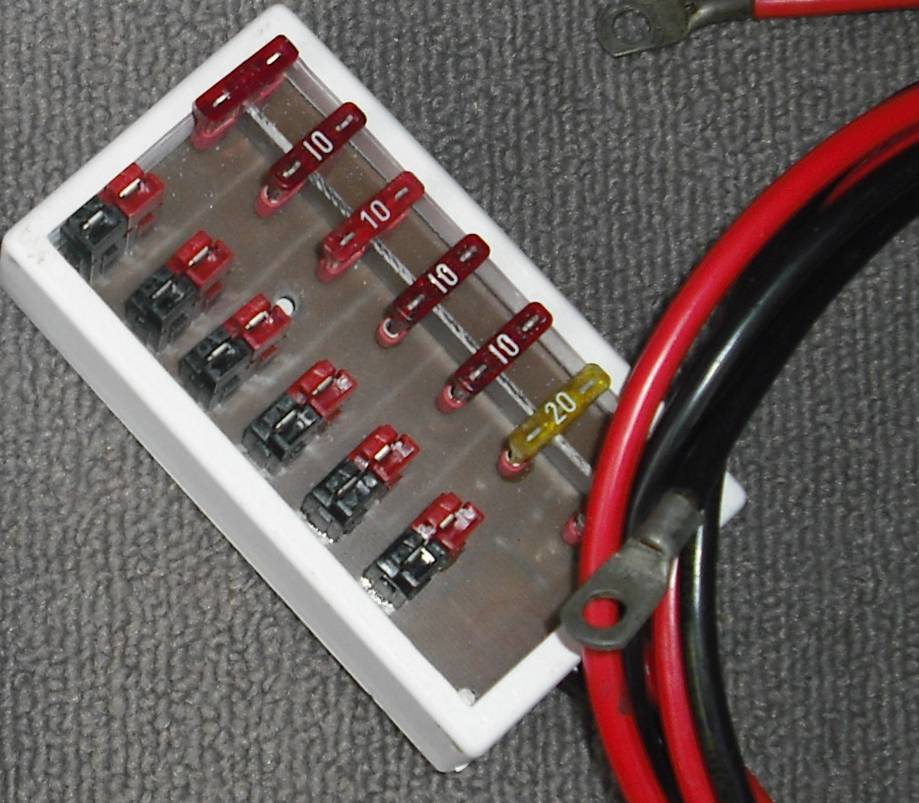

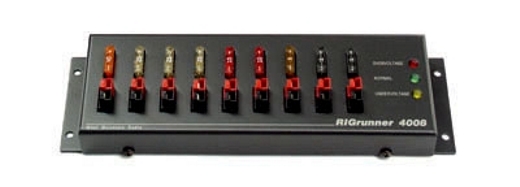

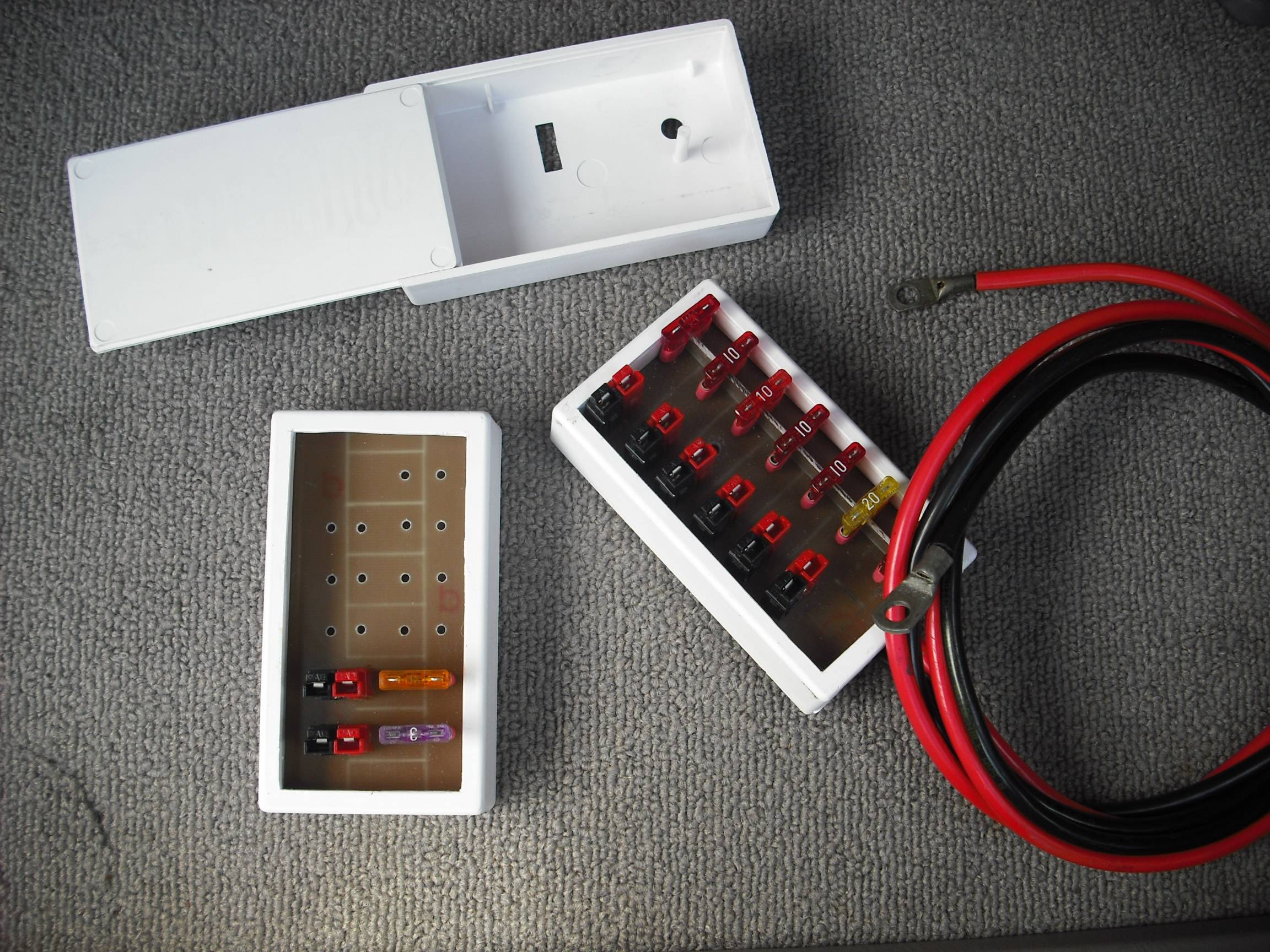

Power PanelThought you may be interested in this... I was thinking of buying a commercial DC power distribution panel to connect all the rigs to my power supply then thought maybe I could make one see attached pics

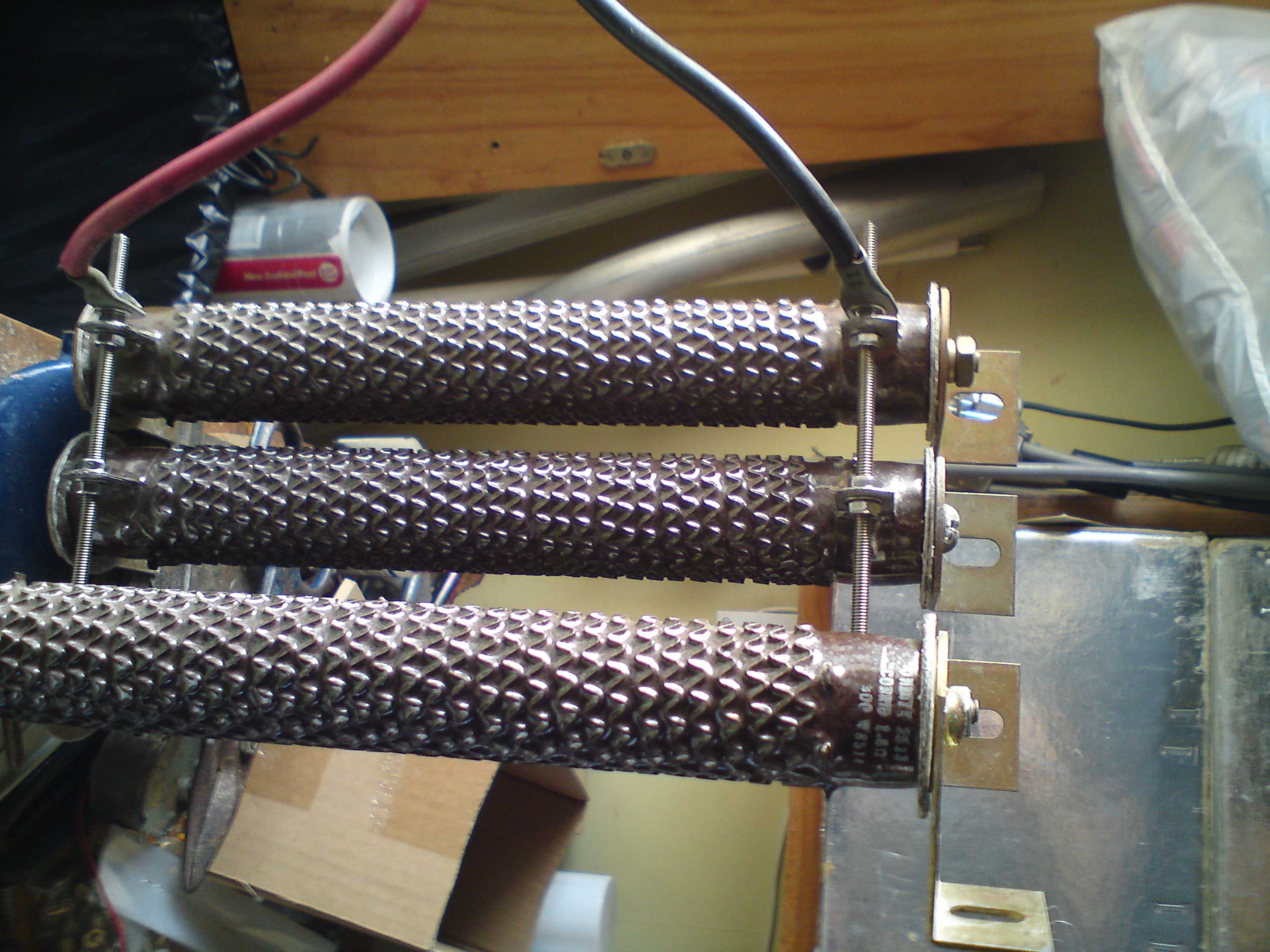

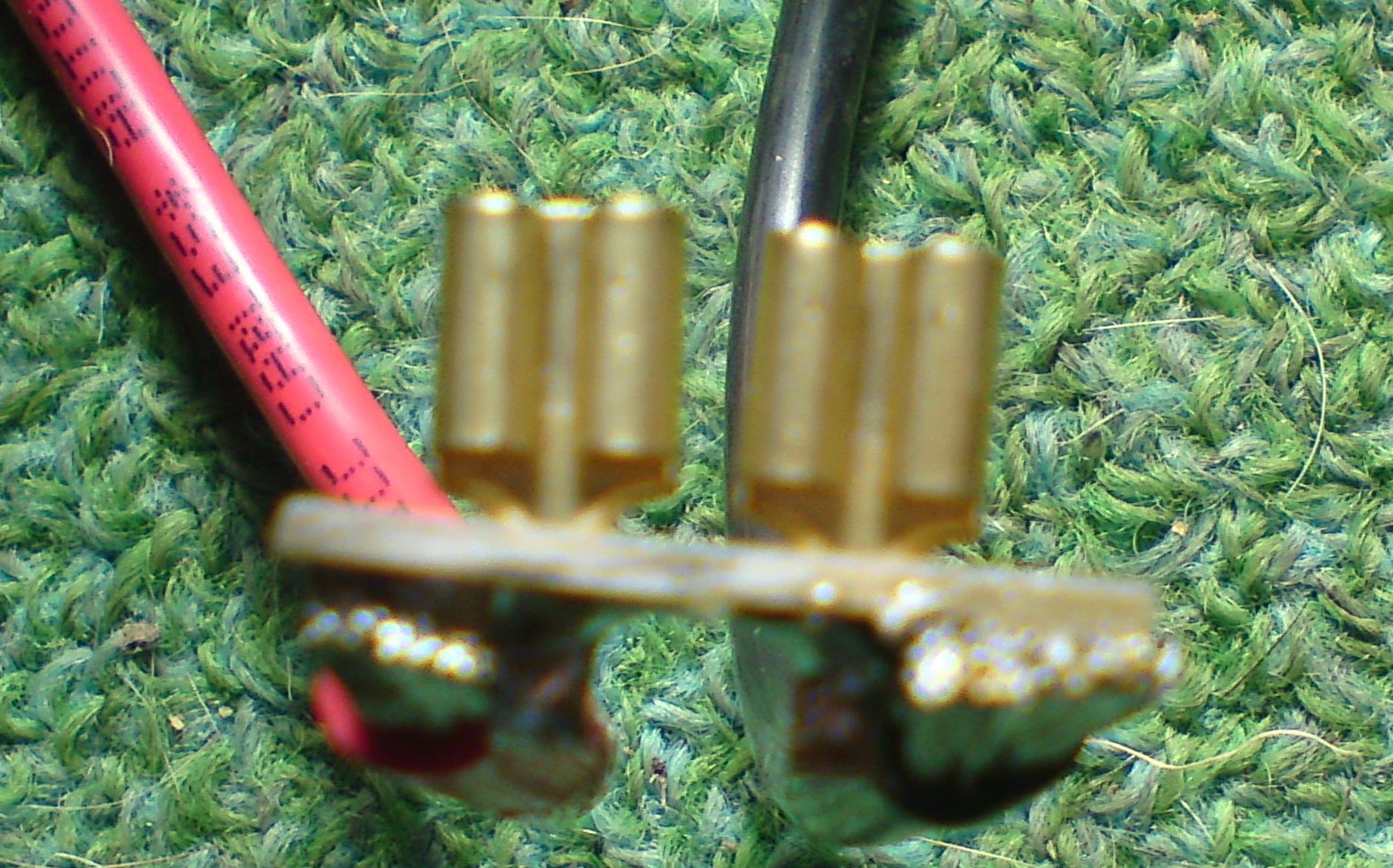

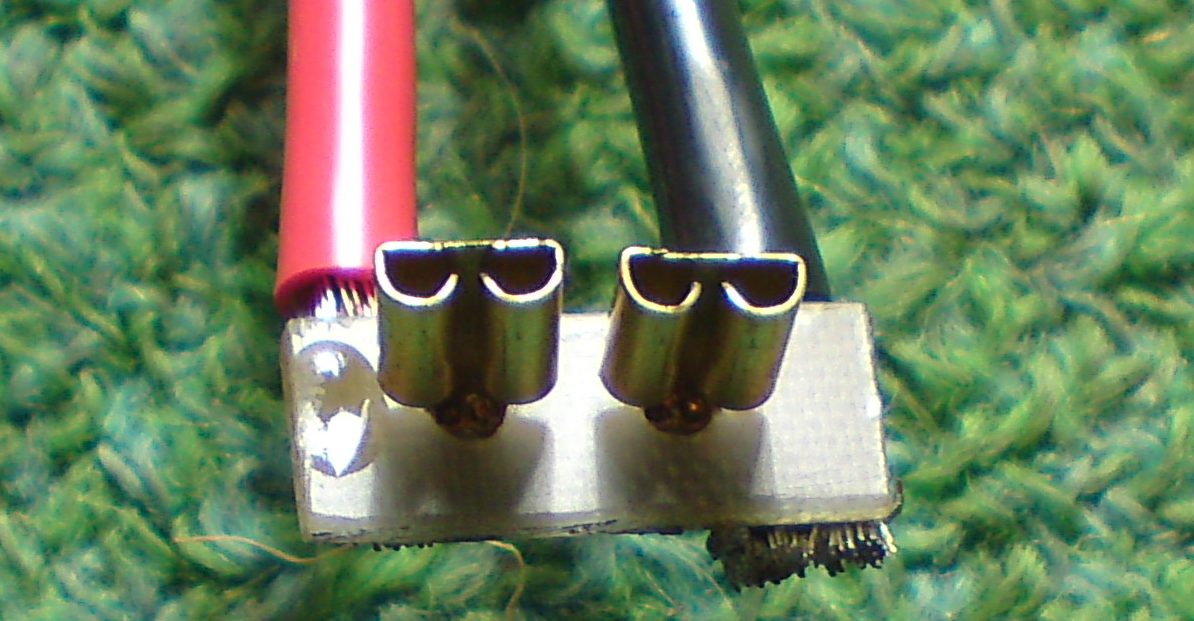

A project for PRC ??? LOOK no Micro.....maybe I should look at using a micro to display the current through each circuit!! To continue some thoughts and problems... I was a bit concerned that the input fuse holder may not be man enough to handle the 30 or so Amps so I decided to do a test on it to see if it could Couple of photos below shows what I made and the load measured the volts across the bottom of the PCB at the wire connections voltage drop with a 0.4 ohm load current was around the 30 Amp mark was interesting that I was dropping nearly 0.6 volts across the cables and fuse holder so the DC volts at the load was 11.98 So the volts across the fuse holder made from 2 spade connectors With a short circuit 0.04 volts with a 30A fuse 0.09 volts with a 25A fuse 0.12 volts so at 30 amps with a short circuit fuse (well as best I as I could make) the power dissipation in the holder was 1.2W
Hummm its does get warm and it gets really warm (read HOT) with a 25A fuse (I suppose I'm asking a little much with 30A through a 25A fuse of course it will get hot....) I dont think the fuse holder as I have made it is too big an issue but the fuse is if it has to run with 30 A through it for long periods of time. Hope this is of interest.... Keith Dix ZL1BQE
|
|
