2.4GHz Project

Equipment found for sale on TradeMe and once seen ... it became another Papakura Radio Club project.

2.4GHz Project

The 2.4GHz transverter.

Late in 2009 we purchased 13 units from TradeMe and lots of behind the scenes work by the more knowledgeable within the group has been carried out to this stage.

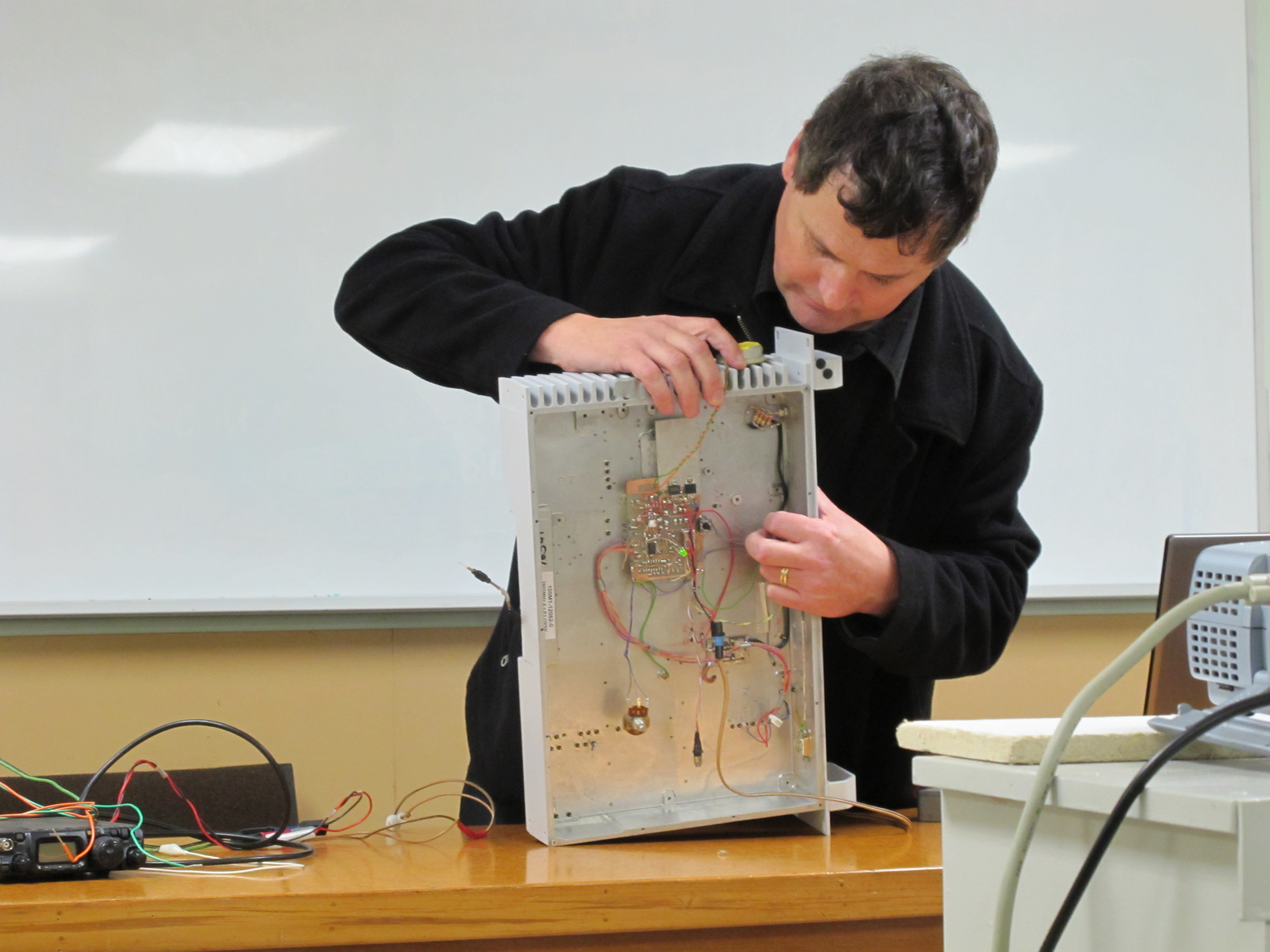

Photos show Simon, the group and the unitï¿½. more to follow.

At the last meeting, we all met at the clubrooms to listen to Simon ZL1SWW present to us the current situation.

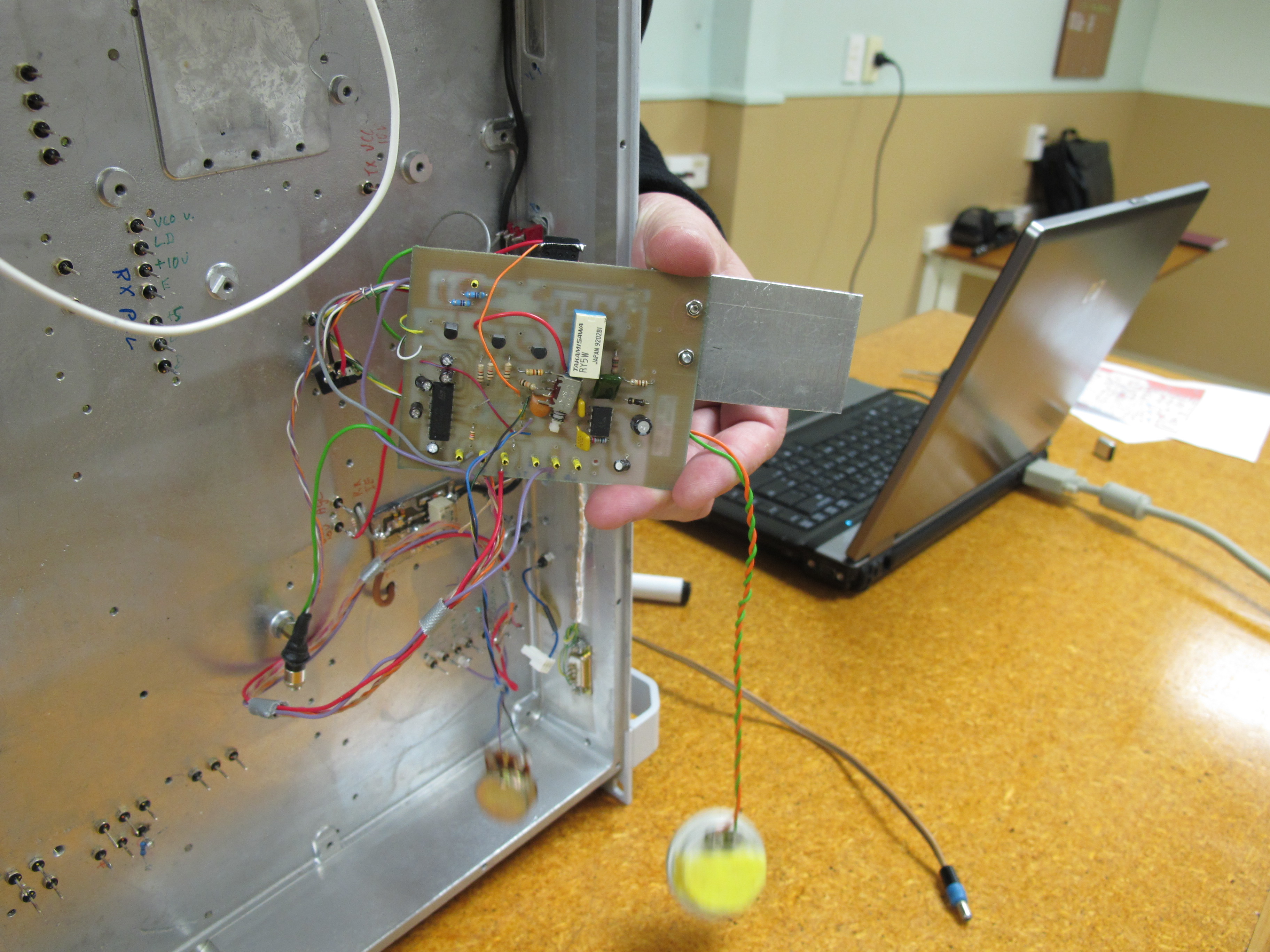

A controller circuit has been designed and the PC board drawn up.

Simon went over the circuit and described the operation of the board. As a group, we have all agreed to buy the PC boards and these are to be commercially produced.

The relay for switching between transmit and receive has been sourced from VK5EME in Australia.
