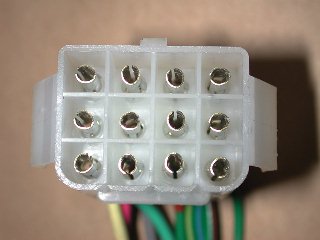

This Socket is on the Adapter loom |
|
||||||||||||
This Plug is on the Transmission Tester |
|
| Pin | Use | Signal Direction | Colour |
| 1 | Solenoid 'C' | Computer to Tester | Brown |
| 2 | Lockup | Computer to Tester | Black |
| 3 | Lockup | Tester to Transmission | Black |
| 4 | Solenoid 'C' | Tester to Transmission | Brown |
| 5 | Solenoid 'B' | Computer to Tester | Blue |
| 6 | Pressure Control | Computer to Tester | White |
| 7 | Pressure Control | Tester to Transmission | White |
| 8 | Solenoid 'B' | Tester to Transmission | Blue |
| 9 | Solenoid 'A' | Computer to Tester | Orange |
| 10 | 4WD Solenoid | Computer to Tester | Green |
| 11 | 4WD Solenoid | Tester to Transmission | Green |
| 12 | Solenoid 'A' | Tester to Transmission | Orange |
