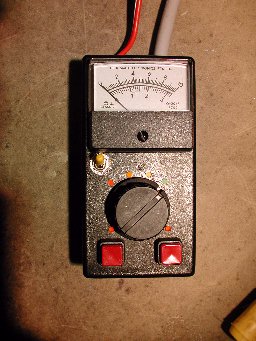

This simple tester has solenoid logic sufficient for most of the transmissions here. |
+ Activated by the Press On button. |
| Wire Colour |
| Tester | Blue | White | Green | Orange | Black | Brown |
| Vehicle | Wire Colour / Wire Trace Colour Solenoid Use |
| Mitsubishi | Yellow 'B' Solenoid |
Orange 'A' Solenoid |
Blue TCC |
Red P/C |
||
| F4AEL Mazda 323 |
Blue 2-3 Sol. |
Blue / Red 3-4 Sol. |
Red / Yellow 1-2 Sol. |
Blue / Yellow Lockup |
||
| G4AEL '88 - '92 | Green / Blue 2-3 Sol. |
Green / White 3-4 Sol. |
Green | |
Green / Black |
Lockup |
|
| GF4AEL Mazda 626 '93 - |
Blue / Black 2-3 Sol. |
Green / Black 3-4 Sol. |
Pink 1-2 Sol. |
Cream / Black Lockup |
||
| Mazda Sentia / Marvie | Yellow | Green | Blue Lockup |
Grey Overrun |
||
| RE4R01A Nissan Teranno / Cefiro |
Yellow 'B' Sol. |
Green 'A' Sol. |
Blue Lockup |
Grey 'C' Overrun |
||
| 4EAT type 1 Subaru Legacy '89 - |
Blue / Green 'B' Sol. |
Blue / Yellow 'A' Sol. |
Green / Black Lockup |
Blue / Black Overrun |
||
| 4EAT type 2 Subaru 4WD Legacy |
Green 'B' Sol. |
Yellow 'A' Sol. |
Blue Lockup |
Grey Overrun |
||
| 4EAT type 3 Subaru Legacy |
Red / White 'B' Sol. |
Blue / Yellow 'A' Sol. |
Red / Yellow Lockup |
Brown / Yellow Overrun |
||
