Nissan RE5R01A Transmission Pinouts

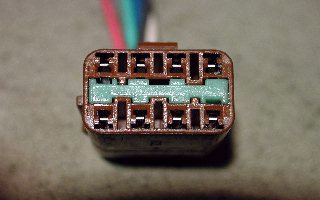

This Socket is on the Vehicle's Computer Wiring Loom and on the Tester's Transmission side.	This Plug is on the Transmissions Wiring harness and on the Tester's Computer side.
1     2     3     4     5     6     7     8	4     3     2     1     8     7     6     5

Pin

Use

Socket Wire Colour

Plug Wire Colour

1st Gear

2nd Gear

3rd Gear

4th Gear

5th Gear

1	Solenoid "B"	Yellow	Yellow	On	On	Off	Off	Off
2	Solenoid "A"	Green	Green	On	Off	Off	Off	On
3	Overrun Solenoid *	Grey	Grey
4	Pressure Solenoid +	Pink	Pink
5	Lockup Solenoid	Blue	Blue	Off	Off	Off	Off	On
6	Temp Sensor	White	White
7	Temp Sensor	Black	Black
8	Solenoid "C"	Peach	Peach	On	On	On	Off	Off

* Activates Upon Various Throttle Openings
+ Pulse Modulation Controlled By Computer

---
