Mitsubishi Transmission Pinouts

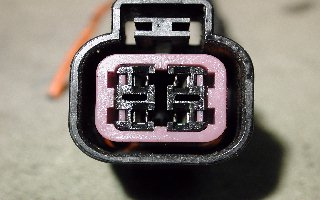

Mitsubishi Socket
Mitsubishi Plug

This Socket is on the Vehicle's Computer Wiring Loom
and on the Tester's Transmission side.

This Plug is on the Transmissions Wiring harness
and on the Tester's Computer side.

  1     2
  3     4
  2     1
  4     3
Pin Use Socket
Wire Colour 		Plug
Wire Colour 		1st
Gear		 2nd
Gear		 3rd
Gear		 4th
Gear
. . . . . . . .
1 TCC Solenoid Red Red Off * * *
2 Pressure + Blue Blue
3 Solenoid "B" Yellow Yellow On On Off Off
4 Solenoid "A" Orange Orange On Off Off On
* Pulsed by Computer
+ Pulse Modulated by Computer
