GF4A Mazda Transmission Pinouts

GF4A Mazda 626, '93 onwards Socket

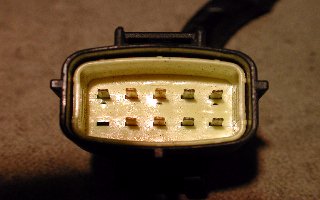

GF4A Mazda 626, '93 onwards Plug

This Socket is on the Vehicle's Computer Wiring Loom
and on the Tester's Transmission side.

This Plug is on the Transmissions Wiring harness
and on the Tester's Computer side.

  1     2     3     4     5
  6     7     8        10
  5     4     3     2     1
  9     8     7     6

Pin Use Socket
Wire Colour 		Plug
Wire Colour 		1st
Gear		 2nd
Gear		 3rd
Gear		 4th
Gear
1 1-2 'A' Solenoid Pink Orange/Black Trace Off On Off On
2 3-4 'C' Solenoid Green/Black Trace Black/Red Trace On On Off On
3 3-2 Downshift Red/White Trace White
4 Line Pressure Red/Green Trace Blue/White Trace
5 Temp Sensor Grey Red/Black Trace
6 2-3 'B' Solenoid Blue/Black Trace Red/Black Trace On On Off Off
7 Lockup Control Blue/White Trace Black
8 Lockup Solenoid Cream/Black Trace Red
9 Blue/Black Trace
10 Temp Sensor Pale Green
