Mazda G4A-EL Transmission Pinouts

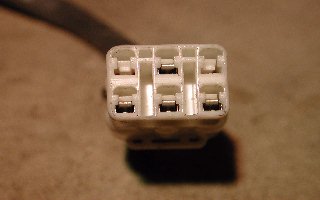

Mazda G4A-EL '88 - '92 Socket

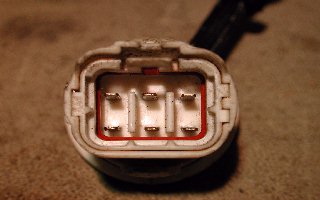

Mazda G4A-EL '88 - '92 Plug

This Socket is on the Vehicle's Computer Wiring Loom
and on the Tester's Transmission side.

This Plug is on the Transmissions Wiring harness
and on the Tester's Computer side.

      2
  4     5     6
  3     2     1
  6     5     4

Pin Use Socket
Wire Colour 		Plug
Wire Colour 		1st
Gear		 2nd
Gear		 3rd
Gear		 4th
Gear
1
2 3-4 Solenoid "C" Green/White Trace Yellow On On Off On
3 Linked to 5 Blue
4 Lockup Green/Black Trace Red
5 2-3 Solenoid "B" Green/Blue Trace Blue On On Off Off
6 1-2 Solenoid "A" Green Green Off On * On
* On in Third Cancels Engine Braking.
