Technical Data
Frequency: 75-78MHz Emergency services "A" band
Modulation: - FM
Power: 25 watts RF output
Channels:Frequency synthesised. Up to 99 channels
In Police service 20 repeater and 2 simplex channels programmed.
Tait T200 FM Mobile Radio | |

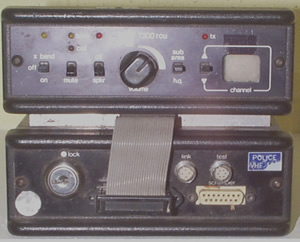

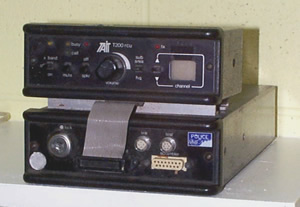

The T200 consists of a remote control unit (RCU) mounted on the vehicle dash, and a boot mounted radio unit. Connectors on the radio unit allow for use with an encryption unit for voice scrambling, and for cross band operation in conjunction with a UHF radio. (To allow rural and dog units to communicate on the VHF channels using a UHF portable radio). The unit pictured was issued to the Royal New Zealand Airforce for use in UH-1 Iroquois helicopters when engaged in operations with police. The Remote control unit is mounted above the radio unit. To the rear of the RCU is an interface unit allowing operation from the 24 volt aircraft power supply and connection to the crew headsets.
|
![]() ![]() |
