The following are photos of the Branch 84 Field Day station at the QTH of ZL1HH and ZL1DAJ near Rainbow Falls, Kerikeri.

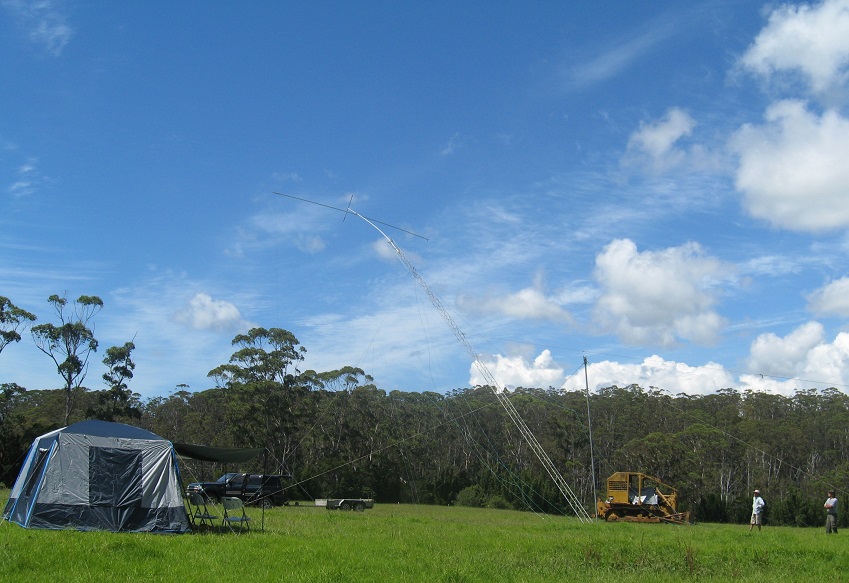

88 foot tall tower on the way up. The 80m operating tent to the left ... Bob ZL1RS and Ian ZL1CBD are "supervising" to the right. (photo thanks to Graeme ZL1ANH)

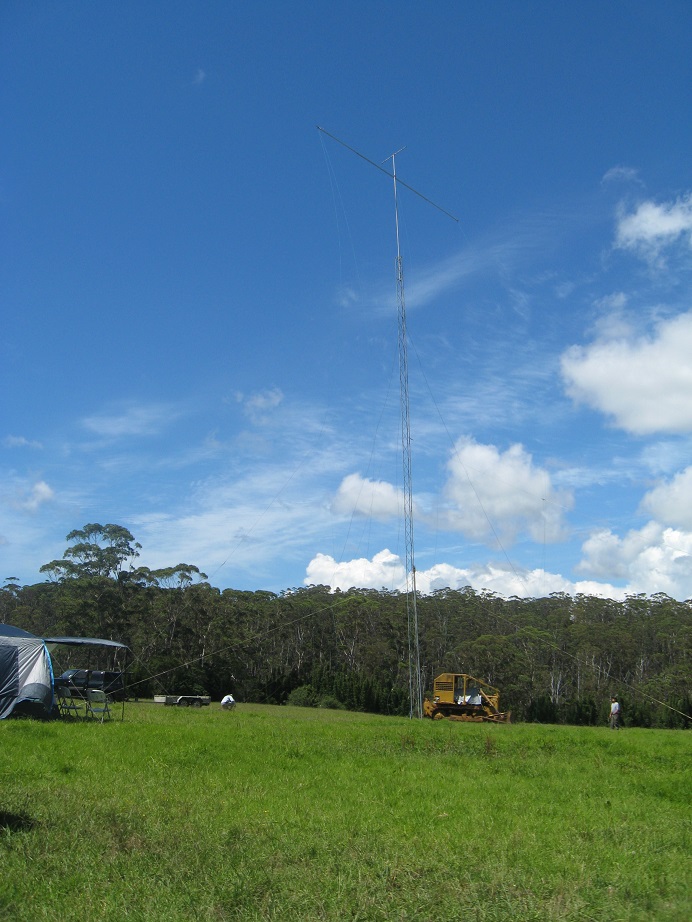

Home made lattice tower by Bob ZL1RS. The winch rope is running over a 20 foot tall gin pole with a roller system at the top (photo thanks to Graeme ZL1ANH)

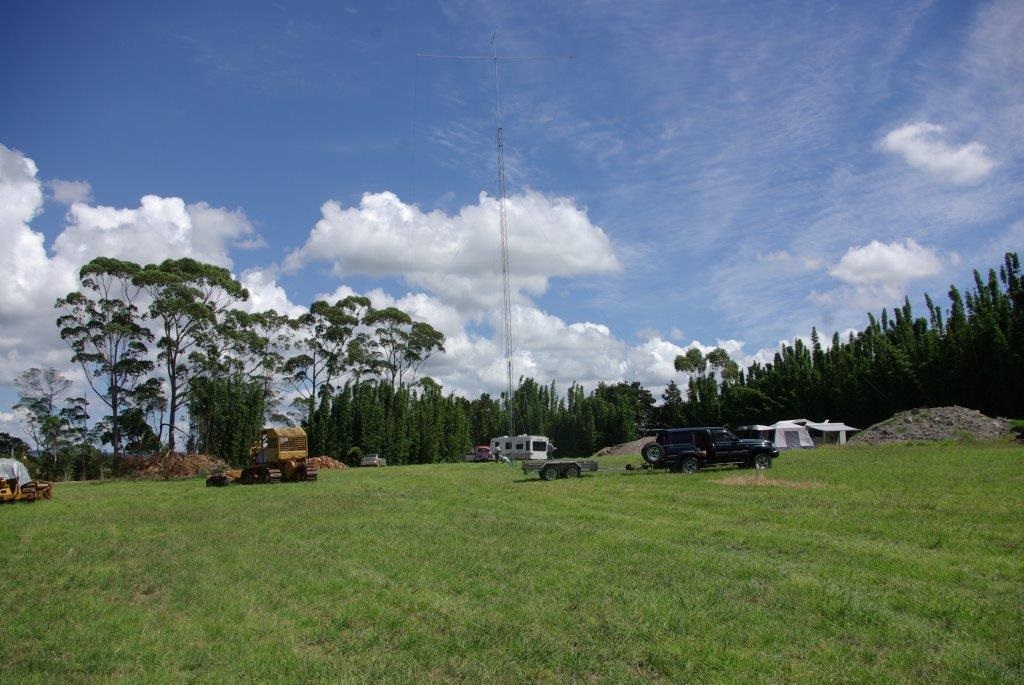

The tower successfully raised with 33 foot long cross boom at the 85 foot level. This cross boom held the 3 element wire Yagi for 80m (photo thanks to Graeme ZL1ANH)
Computer simulation of the 3 element 80m inverted vee Yagi designed by Bob ZL1RS

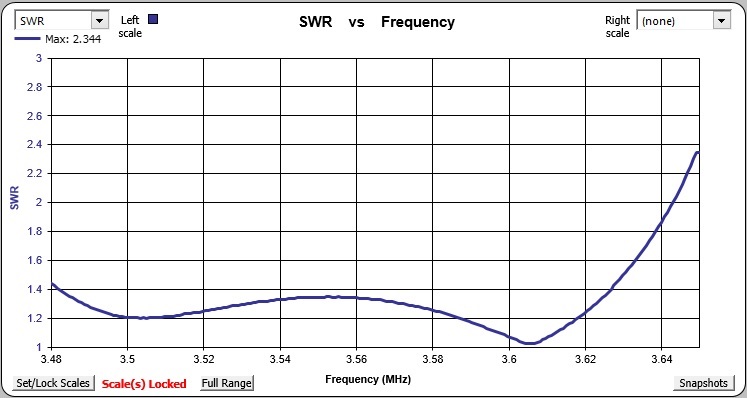

SWR curve of the actual Yagi as measured with a SARK-110 Antenna Analyser (looks like a 20kHz construction error Bob ... the shame!)

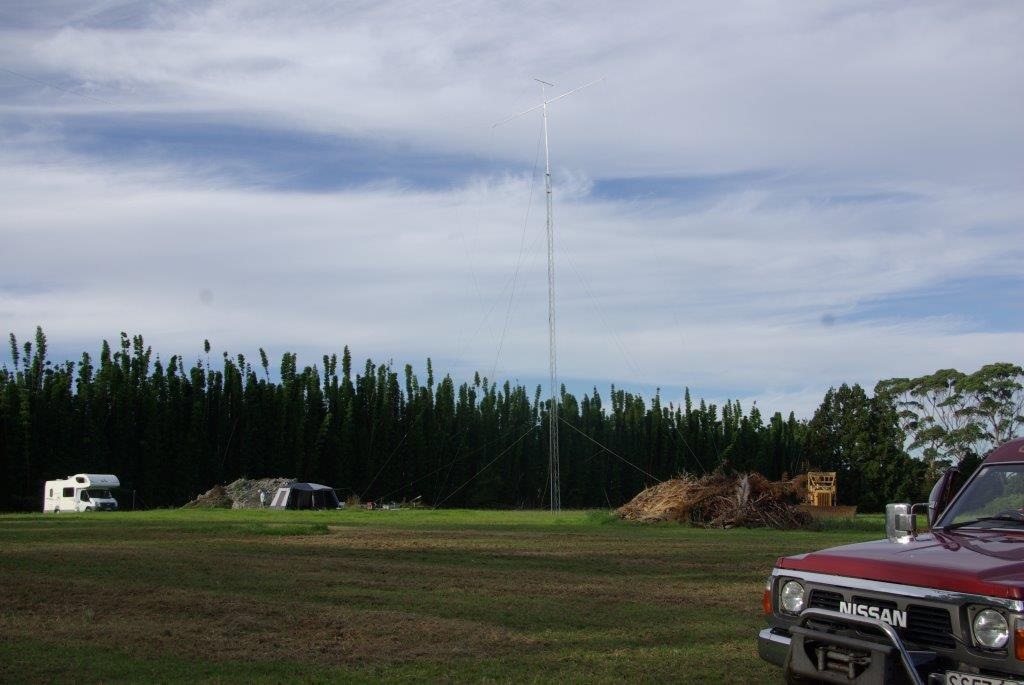

The view South (photo thanks to Peter ZL1PWM)
The view to the West with the 40m operating trailer in the background behind the tower (photo thanks to Russell ZL2BER)
The view to the North East with Mike ZL2AUA's Presidential Motor Home to the left and the PTO winch on Russell ZL2BER's Nissan Patrol that was used to raise the tower (photo thanks to Russell ZL2BER)
Sadly no one took photos of the Sunday BBQ lunch which was the main event!
