TSL2561 - Senzor suncevog zracenja, vidljivi i infra-crveni opseg
Proizvodjač: TAOS - Texas Advanced Optoelectronic Solutions Inc. (The LUMENOLOGY Company)
Napon napajanja: 2.7...3.6 V
Izlazni signal: I2C interface
Opseg merenja: vidljiv λp=640 nm, IR infra-crveni λp=940 nm, 0...200000 lux
Rezolucija merenja: 0.1 lux
Period merenja: 13.7...402 ms
Lemljenjem pina ADDR (2) na L (GND), dobijamo adresu 0x29.
Software in C++ for Raspberry Pi
//****************************************************************************
// Calculate values - SOLAR - Sunce
//****************************************************************************
#define solar_const 126.58 // ??? 1lux = 0.0079W/m2 => 1/0.0079=126.58
//****************************************************************************
// Calibration values - TSL2561
//****************************************************************************
#define LUX_SCALE 14 // scale by 2^14
#define RATIO_SCALE 9 // scale ratio by 2^9
//---------------------------------------------------
// Integration time scaling factors
//---------------------------------------------------
#define CH_SCALE 10 // scale channel values by 2^10
#define CHSCALE_TINT0 0x7517 // 322/11 * 2^CH_SCALE
#define CHSCALE_TINT1 0x0fe7 // 322/81 * 2^CH_SCALE
//---------------------------------------------------
// T, FN, and CL Package coefficients
//---------------------------------------------------
// For Ch1/Ch0=0.00 to 0.50
// Lux/Ch0=0.0304-0.062*((Ch1/Ch0)^1.4)
// piecewise approximation
// For Ch1/Ch0=0.00 to 0.125:
// Lux/Ch0=0.0304-0.0272*(Ch1/Ch0)
//
// For Ch1/Ch0=0.125 to 0.250:
// Lux/Ch0=0.0325-0.0440*(Ch1/Ch0)
//
// For Ch1/Ch0=0.250 to 0.375:
// Lux/Ch0=0.0351-0.0544*(Ch1/Ch0)
//
// For Ch1/Ch0=0.375 to 0.50:
// Lux/Ch0=0.0381-0.0624*(Ch1/Ch0)
//
// For Ch1/Ch0=0.50 to 0.61:
// Lux/Ch0=0.0224-0.031*(Ch1/Ch0)
//
// For Ch1/Ch0=0.61 to 0.80:
// Lux/Ch0=0.0128-0.0153*(Ch1/Ch0)
//
// For Ch1/Ch0=0.80 to 1.30:
// Lux/Ch0=0.00146-0.00112*(Ch1/Ch0)
//
// For Ch1/Ch0>1.3:
// Lux/Ch0=0
//---------------------------------------------------
#define K1T 0x0040 // 0.125 * 2^RATIO_SCALE
#define B1T 0x01f2 // 0.0304 * 2^LUX_SCALE
#define M1T 0x01be // 0.0272 * 2^LUX_SCALE
#define K2T 0x0080 // 0.250 * 2^RATIO_SCALE
#define B2T 0x0214 // 0.0325 * 2^LUX_SCALE
#define M2T 0x02d1 // 0.0440 * 2^LUX_SCALE
#define K3T 0x00c0 // 0.375 * 2^RATIO_SCALE
#define B3T 0x023f // 0.0351 * 2^LUX_SCALE
#define M3T 0x037b // 0.0544 * 2^LUX_SCALE
#define K4T 0x0100 // 0.50 * 2^RATIO_SCALE
#define B4T 0x0270 // 0.0381 * 2^LUX_SCALE
#define M4T 0x03fe // 0.0624 * 2^LUX_SCALE
#define K5T 0x0138 // 0.61 * 2^RATIO_SCALE
#define B5T 0x016f // 0.0224 * 2^LUX_SCALE
#define M5T 0x01fc // 0.0310 * 2^LUX_SCALE
#define K6T 0x019a // 0.80 * 2^RATIO_SCALE
#define B6T 0x00d2 // 0.0128 * 2^LUX_SCALE
#define M6T 0x00fb // 0.0153 * 2^LUX_SCALE
#define K7T 0x029a // 1.3 * 2^RATIO_SCALE
#define B7T 0x0018 // 0.00146 * 2^LUX_SCALE
#define M7T 0x0012 // 0.00112 * 2^LUX_SCALE
#define K8T 0x029a // 1.3 * 2^RATIO_SCALE
#define B8T 0x0000 // 0.000 * 2^LUX_SCALE
#define M8T 0x0000 // 0.000 * 2^LUX_SCALE
//----------------------------------------------------------------------
...
// ----- Suncevo zracenje (lux, W/m2)
s0 = hex_val2(buf[28],buf[29],buf[30],buf[31]);
s1 = hex_val2(buf[32],buf[33],buf[34],buf[35]);
s = CalculateLux(1,2,s0,s1); // (lux)
sw = s / solar_const; // (W/m2)
printf("%dlux %4.1fW/m2 ", s, sw);
...
//----------------------------------------------------------------------
unsigned int CalculateLux(unsigned int iGain, unsigned int tInt, unsigned int ch0, unsigned int ch1)
{
//------------------------------------------------------------------------
// first, scale the channel values depending on the gain and integration time
// 16x, 402mS is nominal.
// scale if integration time is NOT 402 msec
unsigned long chScale;
unsigned long channel1;
unsigned long channel0;
// chScale = CHSCALE_TINT1;
switch (tInt)
{
case 0: // 13.7 msec
chScale = CHSCALE_TINT0;
break;
case 1: // 101 msec
chScale = CHSCALE_TINT1;
break;
default: // assume no scaling
chScale = (1 << CH_SCALE);
break;
}
// scale if gain is NOT 16X
if (!iGain) chScale = chScale << 4; // scale 1X to 16X
// scale the channel values
channel0 = (ch0 * chScale) >> CH_SCALE;
channel1 = (ch1 * chScale) >> CH_SCALE;
//------------------------------------------------------------------------
// find the ratio of the channel values (Channel1/Channel0)
// protect against divide by zero
unsigned long ratio1 = 0;
if (channel0 != 0) ratio1 = (channel1 << (RATIO_SCALE+1)) / channel0;
// round the ratio value
unsigned long ratio = (ratio1 + 1) >> 1;
// is ratio <= eachBreak ?
unsigned int b, m;
// T, FN and CL package
if ((ratio >= 0) && (ratio <= K1T))
{b=B1T; m=M1T;}
else if (ratio <= K2T)
{b=B2T; m=M2T;}
else if (ratio <= K3T)
{b=B3T; m=M3T;}
else if (ratio <= K4T)
{b=B4T; m=M4T;}
else if (ratio <= K5T)
{b=B5T; m=M5T;}
else if (ratio <= K6T)
{b=B6T; m=M6T;}
else if (ratio <= K7T)
{b=B7T; m=M7T;}
else if (ratio > K8T)
{b=B8T; m=M8T;}
else;
unsigned long temp;
temp = ((channel0 * b) - (channel1 * m));
// do not allow negative lux value
if (temp < 0) temp = 0;
// round lsb (2^(LUX_SCALE-1))
temp += (1 << (LUX_SCALE-1));
// strip off fractional portion
unsigned long lux = temp >> LUX_SCALE;
return(lux);
}
//----------------------------------------------------------------------
Software in Assembler for PIC16F876, rutina se poziva kod starta
;---------------------------------------------------------------------
;Inicijalizacija TLS2561
Init_TLS2561
i2c_start
movlw 0x52 ;Module address WR , ADDR=L (0x29)
call i2c_send
movlw 0x80 ;command Write address 0x0
call i2c_send
movlw 0x03 ;Power ON mode, defaults TIMING=0x02 (GAIN=1X, INTEG=402ms)
call i2c_send
i2c_stop
return
;---------------------------------------------------------------------
Software in Assembler for PIC16F876, rutina se poziva svake sekunde
;---------------------------------------------------------------------
; Citaj podatke TLS2561 - Jacina sunca
TLS2561
i2c_restart
movlw 0x52 ;Module address WR, ADDR=L (0x29)
call i2c_send
movlw 0xAC ;command, Read Word address 0xC
call i2c_send
i2c_restart
movlw 0x53 ;Module address RD, ADDR=L (0x29)
call i2c_send
i2c_receive
i2c_send_ACK
movf SSPBUF,W ;uzmi podatak 1
movwf S0_L
i2c_receive
i2c_send_NACK
movf SSPBUF,W ;uzmi podatak 2
movwf S0_H
i2c_stop
;- - - - - - - - - - - - - - - - - - - - - - - -
i2c_restart
movlw 0x52 ;Module address WR, ADDR=L (0x29)
call i2c_send
movlw 0xAE ;command, Read Word address 0xE
call i2c_send
i2c_restart
movlw 0x53 ;Module address RD, ADDR=L (0x29)
call i2c_send
i2c_receive
i2c_send_ACK
movf SSPBUF,W ;uzmi podatak 3
movwf S1_L
i2c_receive
i2c_send_NACK
movf SSPBUF,W ;uzmi podatak 4
movwf S1_H
i2c_stop
return
;---------------------------------------------------------------------
Download File:

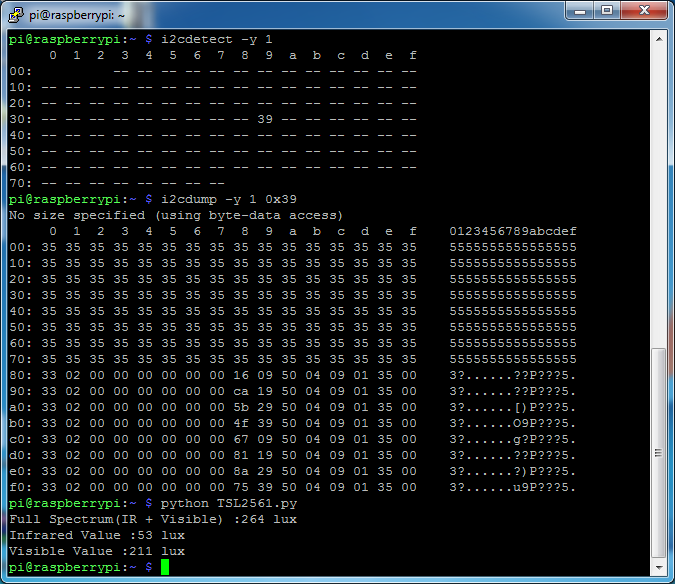

tsl2561.py - Python software za testiranje TSL2561
Šema RPI WS
Šema PIC WS
Data Sheet - TSL2561.pdf
