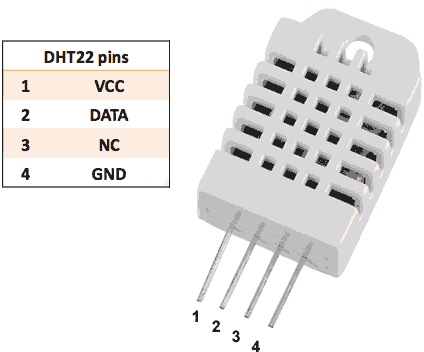

DHT22 - Senzor temperature i relativne vlažnosti vazduha

Proizvodjač: Aosong Electronics Co. Ltd.
Napon napajanja: 3.3...6 V
Izlazni signal: digitalni jednožicni, 40bits [50us + (’0’=26-28us) or (’1’=70 us)]
Opseg merenja: vlažnost 0...100 %, temperatura -40 °C...+80 °C
Rezolucija merenja: vlažnost 0.1 %, temperatura 0.1 °C
Tačnost merenja: vlažnost 2 % (max 5 %), temperatura 0.5 °C
Period merenja: 2 s




Software in C++ for Raspberry Pi
//----------------------------------------------------------------------
...
// ----- Vlaznost vazduha (%)
	rh = hex_val2(buf[4],buf[5],buf[6],buf[7])*0.1;
	printf("%2.1f%% ",rh);
// ----- Temperatura vazduha (C)
	t = hex_val2(buf[8],buf[9],buf[10],buf[11])*0.1;
	printf("%2.1fC ",t);
...
//----------------------------------------------------------------------

Software in Assembler for PIC16F876 (Q=4.096MHz), rutina se poziva na 2 sekunde
;----------------------------------------------------------------------
;Single-bus data is used for communication between PIC and DHT22
;Max time this subprogram is 6ms
DHT22_service
	bsf	STATUS,RP0
	bcf	TRISA,5		; output
	bcf	STATUS,RP0
	bcf	PORTA,5		; Start signal
	call	Delay_2ms
	bsf	PORTA,5
	call	Delay_30us
	bsf	STATUS,RP0
	bsf	TRISA,5		; input
	bcf	STATUS,RP0

	call	Delay_160us

	call	Read_BYTE
	movf	BYTE,W
	movwf	RH_H		; RH_H

	call	Read_BYTE
	movf	BYTE,W
	movwf	RH_L		; RH_L

	call	Read_BYTE
	movf	BYTE,W
	movwf	T_H		; T_H

	call	Read_BYTE
	movf	BYTE,W
	movwf	T_L		; T_L

	call	Read_BYTE
	movf	BYTE,W
	movwf	DHT_CRC		; CRC
	return
;- - - - - - - - - - - - - - - - - - - - - - - - - -
Read_BYTE
	clrf	BYTE
	movlw	.7
	movwf	count
RB_loop
	clrf	D1		; D1=0
	btfss	PORTA,5		; ?'1'
	goto	$-1
RB_loop_5
	incf	D1,F		; D1=D1+1, signal counter
	btfsc	PORTA,5		; ?'0'
	goto	RB_loop_5
	movf	D1,W		; W=D1
	sublw	.7		; W=7-W
	btfss	_C		; ?W
	bsf	BYTE,0		; W<0,C=0,'1'
	bcf	_C 		; W>0,C=1,'0'
	rlf	BYTE,f
	decfsz	count,f
	goto	RB_loop

; check the last bit
	clrf	D1
	btfss	PORTA,5
	goto	$-1
RB_loop_6
	incf	D1,F
	btfsc	PORTA,5
	goto	RB_loop_6
	movf	D1,w
	sublw	.7
	btfss	_C
	bsf	BYTE,0
	bcf	_C
	return
;- - - - - - - - - - - - - - - - - - - - - - - - - -
Delay_2ms
	movlw	.12
	movwf	D2
L11
	movlw	.50
	movwf	D1
L10
	decfsz	D1,f
	goto	L10
	decfsz	D2,f
	goto	L11
	return

Delay_30us
	movlw	.7
	movwf	D1
L1
	decfsz	D1,f
	goto	L1
	return

Delay_160us
	movlw	.51
	movwf	D1
L2
	decfsz	D1,f
	goto	L2
	nop
	return
;----------------------------------------------------------------------


Download File:
  • dht22.c - Software za RPi, C izvorni kod za testiranje DHT22
  • dth.c - Software za RPi, C izvorni kod za testiranje DHT22, koristi wiringPi biblioteku
  • Šema RPI WS
  • Šema PIC WS
  • Data Sheet - DHT22.pdf
  • Data Sheet - AM2302.pdf
  • Data Sheet - AM2302.pdf
