Programmable controllers for light advertiser
Advertiser Light Controller ALC-402
- 2 Outputs : triac, power 1000W max.,
- Supply voltage: 220V ac,
Advertiser Light Controller ALC-403
- 2 Outputs : triac, power 1000W max.,
- Dimmed light effect,
- Supply voltage: 220V ac,
Advertiser Light Controller ALC-408
- 40 programs for Light Effect, (Dimmed light effect),
- Set programs, lighting and speed by operating a key,
- 8 Outputs : triac, power 500W max.,
- Light level control to prevent operation in daylight,
- LED indicator of the state of all outputs,
- Supply voltage: 220V ac, total power 3000W max.,
Advertiser Light Controller ALC-424
- Special Program for Light Effect, (Dimmed light effect),
- Set parameters and speed by potentiometers,
- 24 Outputs : triac, power 500W max.,
- Light level control to prevent operation in daylight,
- LED indicator of the state of all outputs,
- Interface: SPI (Option: RS-485, optically-isolated),
- Supply voltage: 220V ac, total power 3000W max.,
Buffer board with optotriac/triacs ALB-904
- 4 Outputs : triac, power 2000W max.,
- Supply voltage: 220V ac,
Shift Register Latch - Buffer board with transistors ALB-224
- Interface: SPI optically-isolated,
- 24 Outputs : transistor, I=2A, Imax=10A,
- Supply voltage: 7-24V dc,
Advertiser Light Controller with EPROM ALC-124
- 3 pcs. EPROM with program for 24 channels.
- Max 4 programs for Light Effect.
- Set speed and brightness by potentiometers.
- Light level control to prevent operation in daylight.
- NTC resistor for detect high temperature.
- 24 Outputs : triac, power 500W max.
- Supply voltage: 220V ac, total power 5000W max.
Download Software:
REKLAMA3.BAS - Programming Advertiser with 3 pieces EPROM - program written in BASIC QB45, DOS
R_ITC.TXT - A program for bulb advertising, 22 channels for ITC electronic - text file
R_HOTEL.TXT - A program for bulb advertising, 22 channels for HOTEL - text file
Advertiser Controller with EPROM AC-108
- EPROM with program for 2 channel with 2 step motor (left and right direction rotation), and 4 auxiliary channel.
- Set speed by potentiometers.
- 12 Outputs: transistor, I=2A, Imax=10A.
- Supply voltage: 220V ac.
Download Software:
REKLAMA1.BAS - Programming Advertiser with 1 pieces EPROM - program written in BASIC QB45, DOS

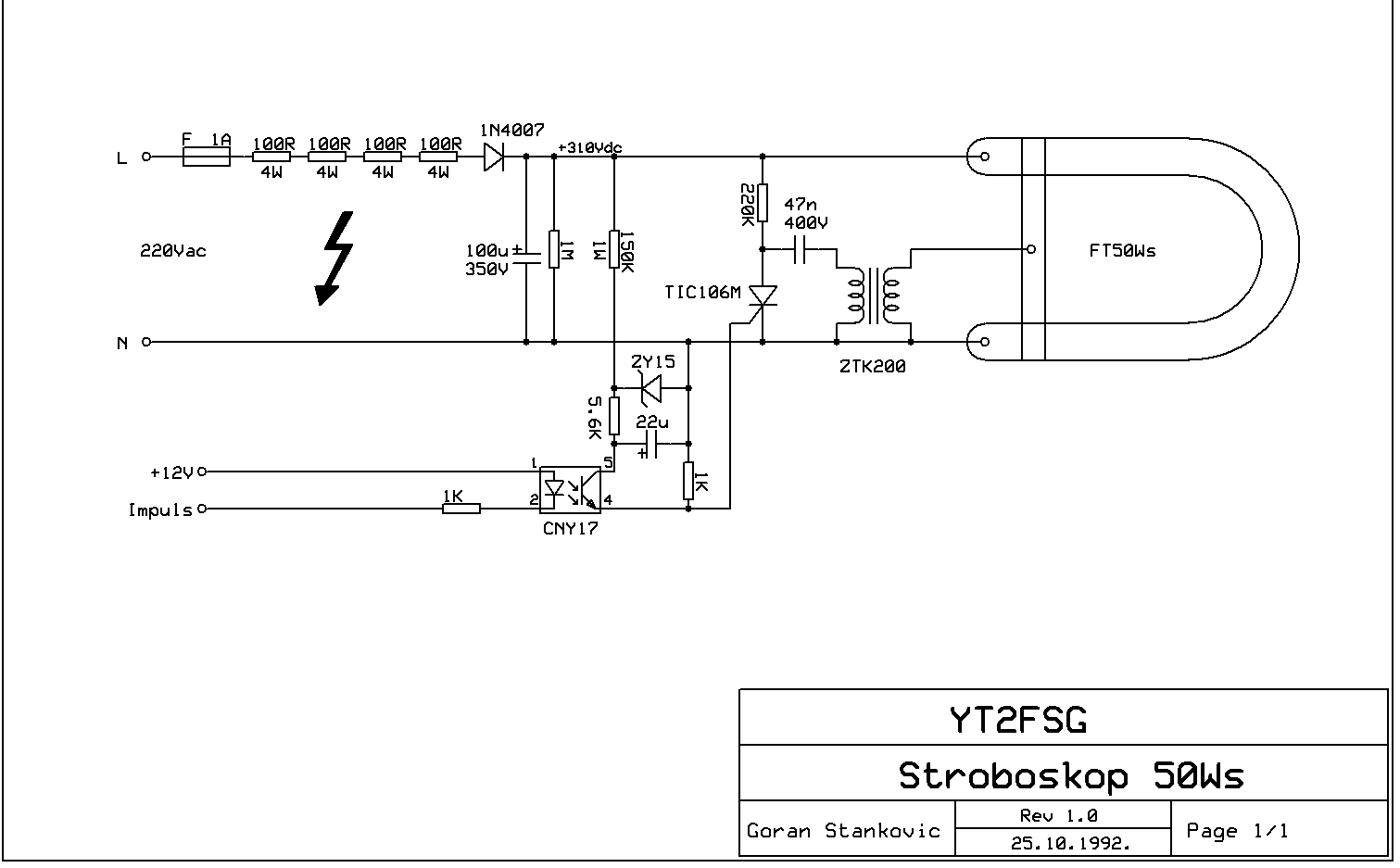

STEP_M.TXT - A program for effect with step motors and stroboskop, for ITC electronic - text file
