Auxiliary devices for PLC

LED display 4 digits PLC-LED4

• It shows Roman and Cyrillic YU-ASCII font and special chars,
• Indication: 4-digit 7-segment LED display, h=13.5mm, color red or green,
• Serial Communication Interface: SPI (JTAG), with CPU card
• Supply voltage: 5V dc, 100mA,
• Dimensions: module 70x25x33 mm,

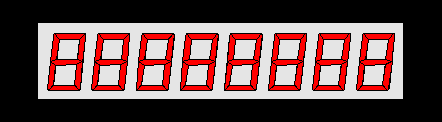

LED display 8 digits LED-11/8

• It shows Roman and Cyrillic YU-ASCII font and special chars,
• Indication: 8-digit 7-segment LED display, h=13.5mm, color red or green,
• Serial Communication Interface: RS-232C,
• Supply voltage: 5V dc, 200mA,
• Dimensions: module 120x25x33 mm,

• 4 Relays, Contact rating: 10A @ 250V ac, 30V dc,
• Input voltage: 24V dc,
• Dimensions: board 75x65x40 mm.

Relay Terminal PLC-RELE42

• 4 Relays, 2 x Contact rating: 10A @ 250V ac, 30V dc,
• Input voltage: 24V dc,
• Dimensions: board 75x65x40 mm.

Optocouplers module OC-24/220

• OC-24/220 is an optional digital input module with four optocouplers. This module can be configured as a digital logical in round AND, OR, NAND or NOR with 4 optically-isolated inputs.
• Inputs: 4 digital inputs, optically-isolated inputs, 24Vdc/ac, 5mA or 220Vac, 5mA.
• Outputs: 4 NPN transistor outputs, 24Vdc, 50mAmax
  or when used as a logic gate, one PNP transistor output, 24Vdc, 2A, 10Amax.
• Indicator: LED Indication of all input-output.
• Input voltage: 24Vdc.
• Dimensions: board 75x65x40mm.

Diode for Synoptic Scheme SINO-LED

• Module is intended to create a synoptic scheme with LEDs, consists of a network diodes with resistors for supply LEDs.
• Inputs: 16 digital inputs, 1 digital input for za TEST.
• Outputs: 16 digital outputs for LEDs 24Vdc, 10mA, 1 digital output for ALARM.
• Input voltage: 24Vdc.
• Dimensions: board 100x50x20mm.
