YO4HFU
432MHz/28MHZ Transverter


Under Construction 01.03.2013

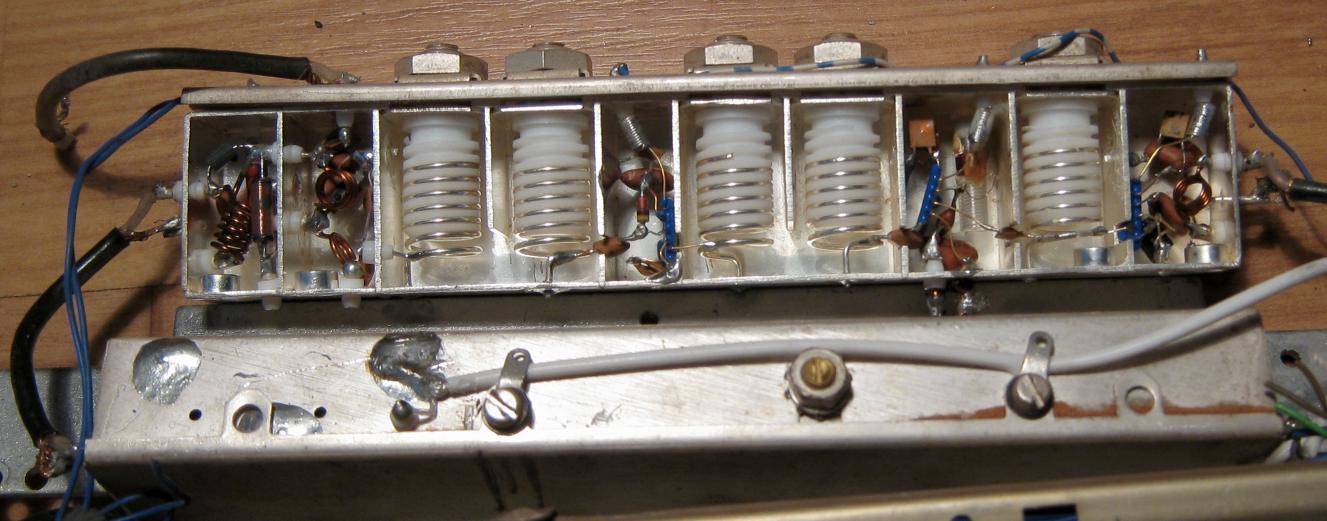

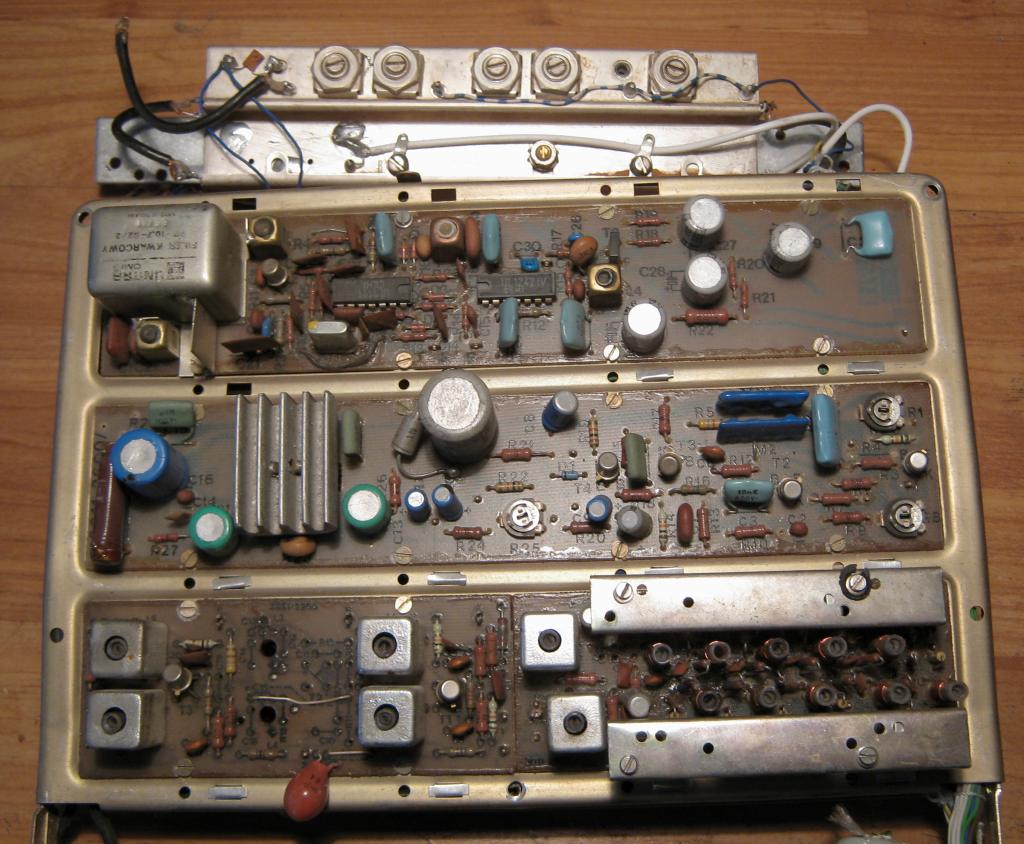

RADMOR UNITRA 300MHz
Foto1, Foto 2


RX Section - completed

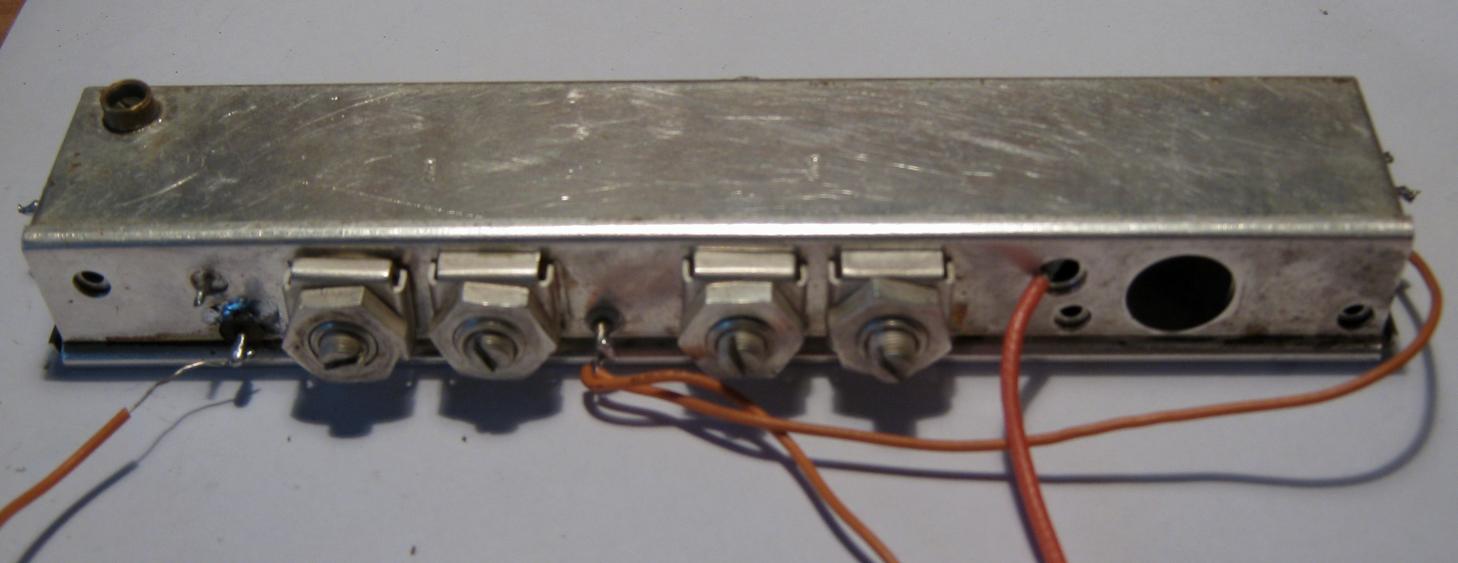

432MHz RX Module

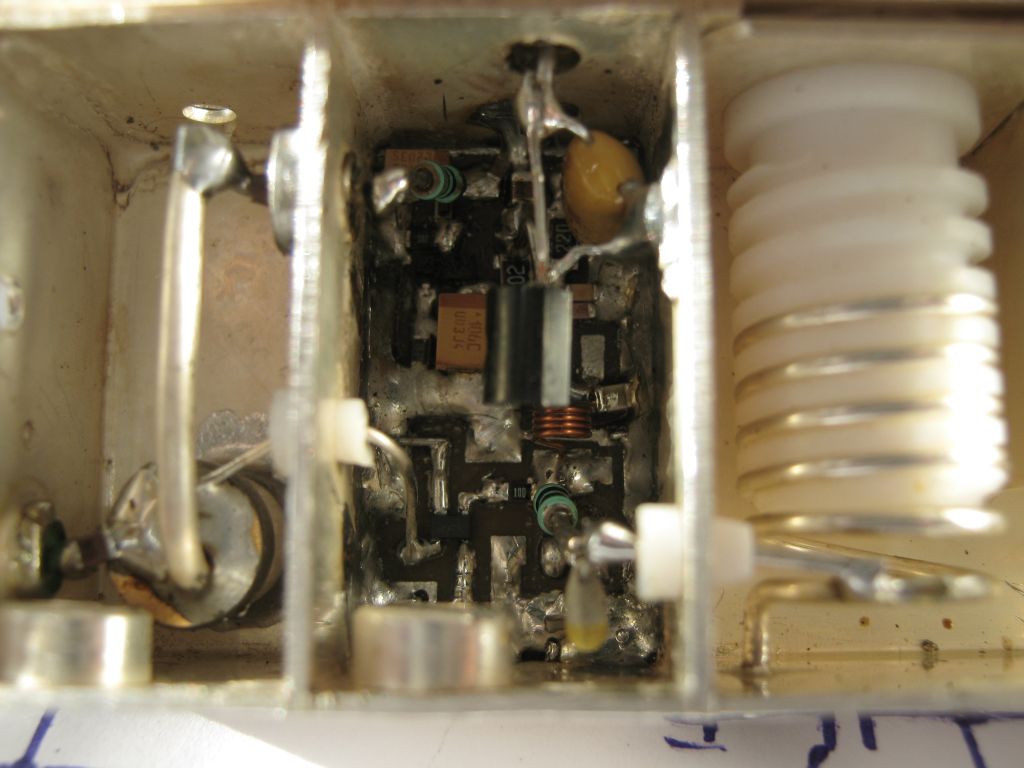

ATF54143 Preamplifier

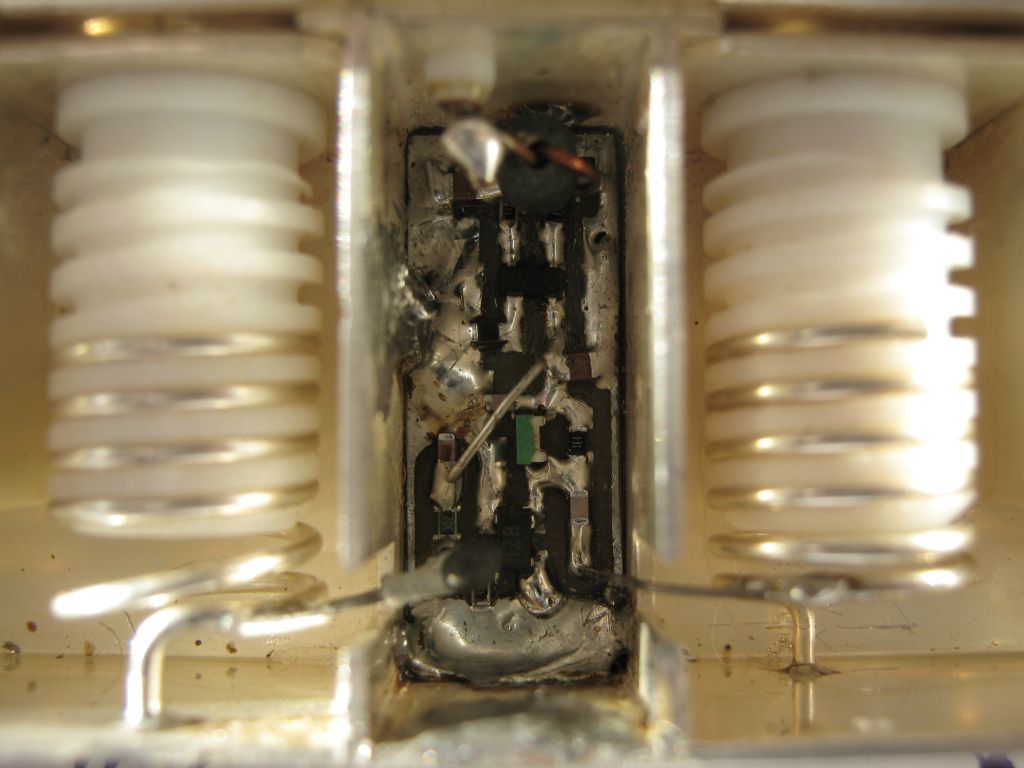

2SC4093(5011) Amplifier

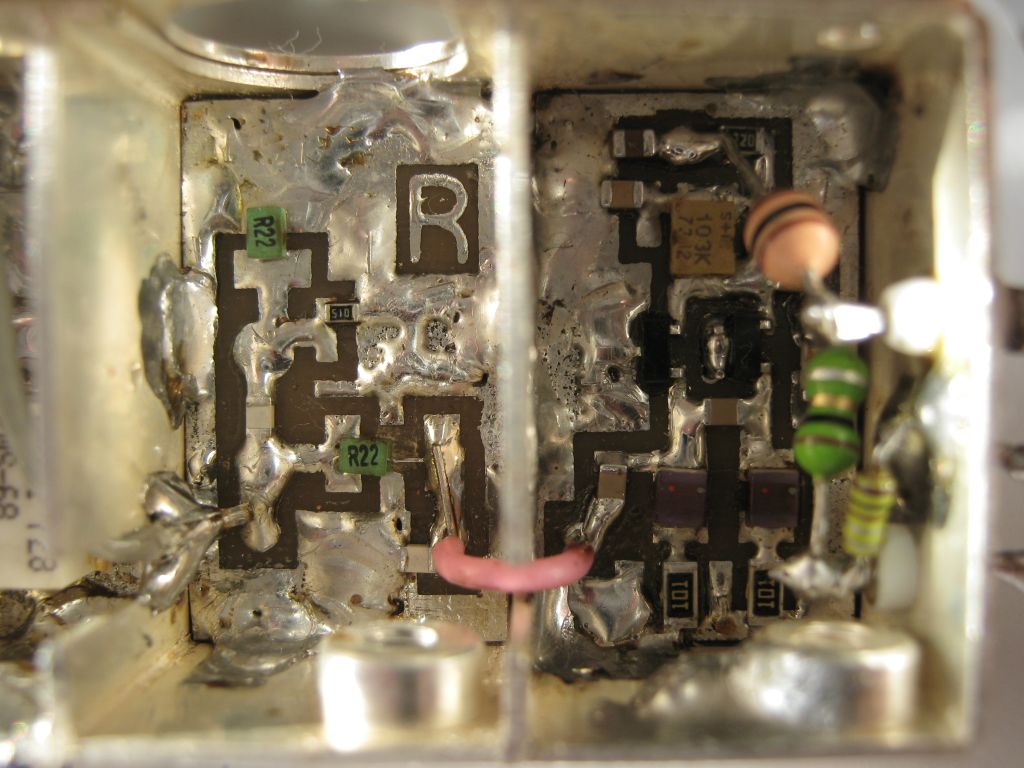

MIXER and 28MHz Diplexer
2 x J310 28MHz Amplifier
Schematic (hand drawing)


TX Section

Low pass 28MHz, Mixer, Helix filters, Amplifiers +10dBm

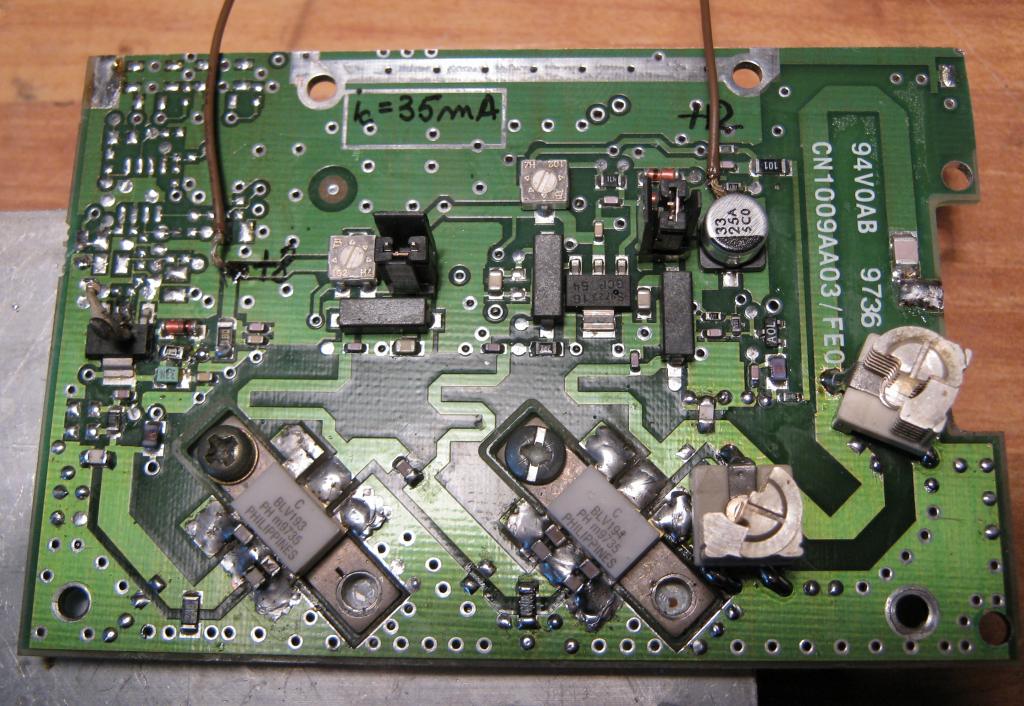

Liniar Amplifier 15W BLV193/194- completed



Local Oscillator
TCXO 20MHz Low Noise PLL SA7025 & DRO VCO +10dBm
