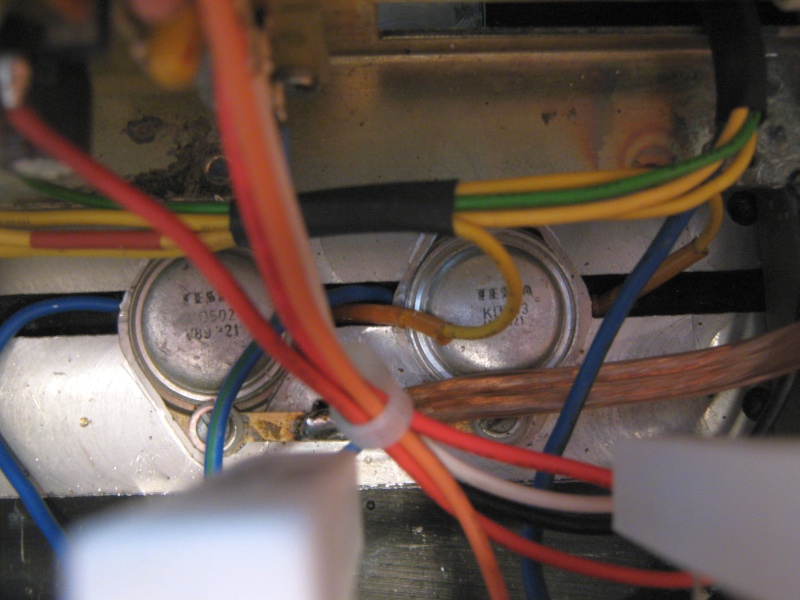

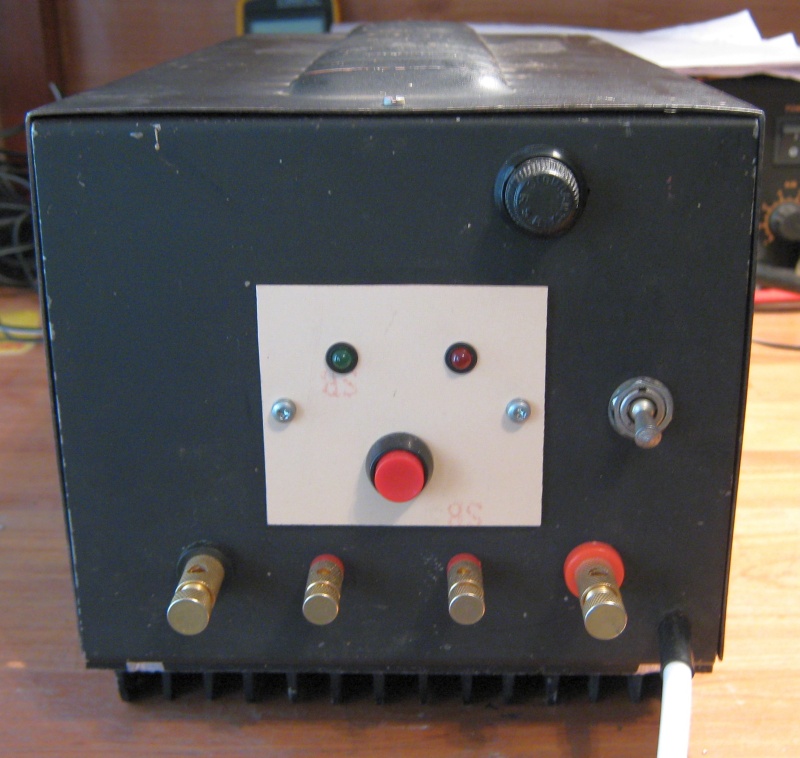

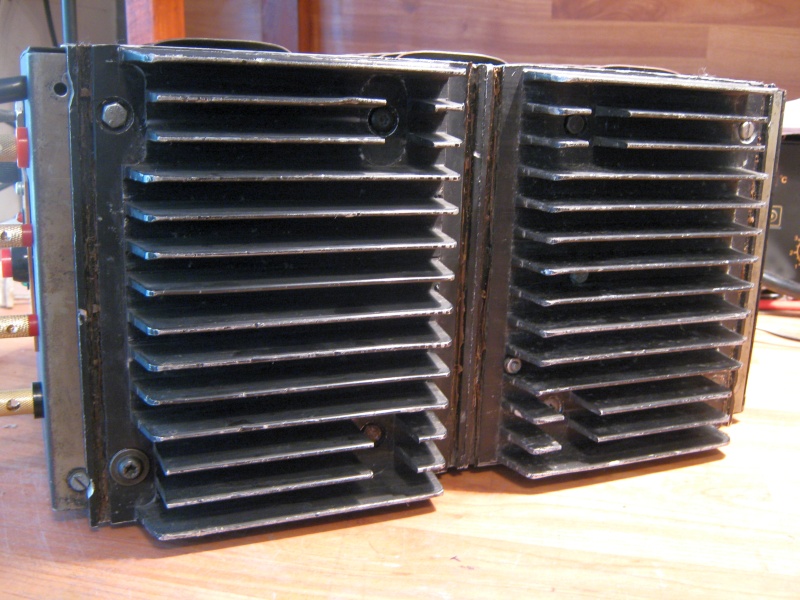

Linear Power Supply 13,8V/20A


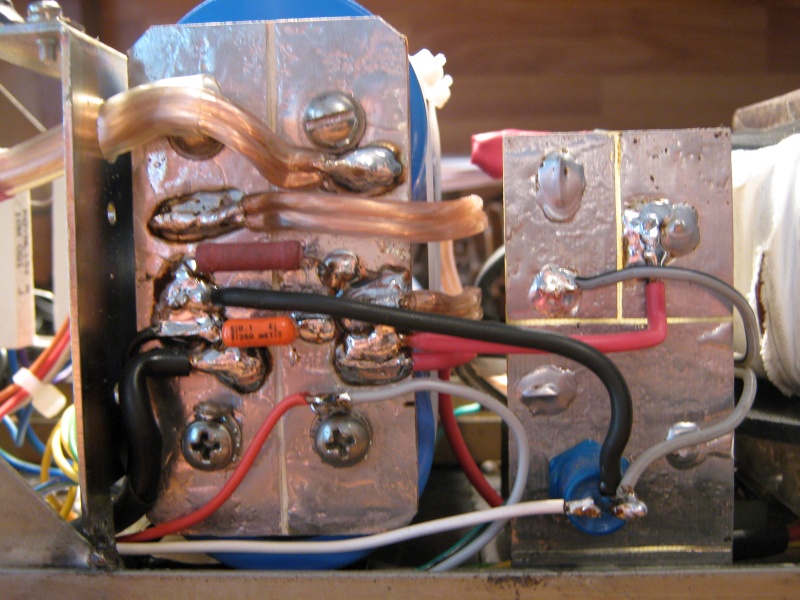

Shortcircuit protection, high voltage output protection(crowbar), soft start.
Output Voltage: 12,5...14,4V
Output Current: 20...25A

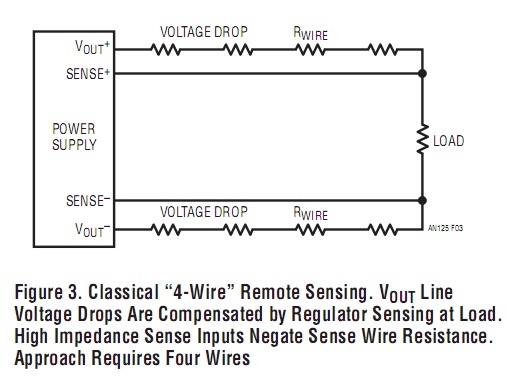

Remonte Sensing Inputs for Voltage Drop Compensation. How to use this (if not use, link: +/+Sense and -/-Sense)



Schematic
PCB-bottom
PCB-components position
