MOTOROLA P200 BATTERY ELIMINATOR












Battery eliminator for Motorola Radius P200 built with LM723. Output voltage is 10V and maximum 2 Amps. TX output transistor is protected against mismatch, parasitic oscillation and overload by Ic current limiting.
Input voltage is between 12-15Vdc, suitable for car use.


Schematic Voltage Regulator LM723 10V/2A

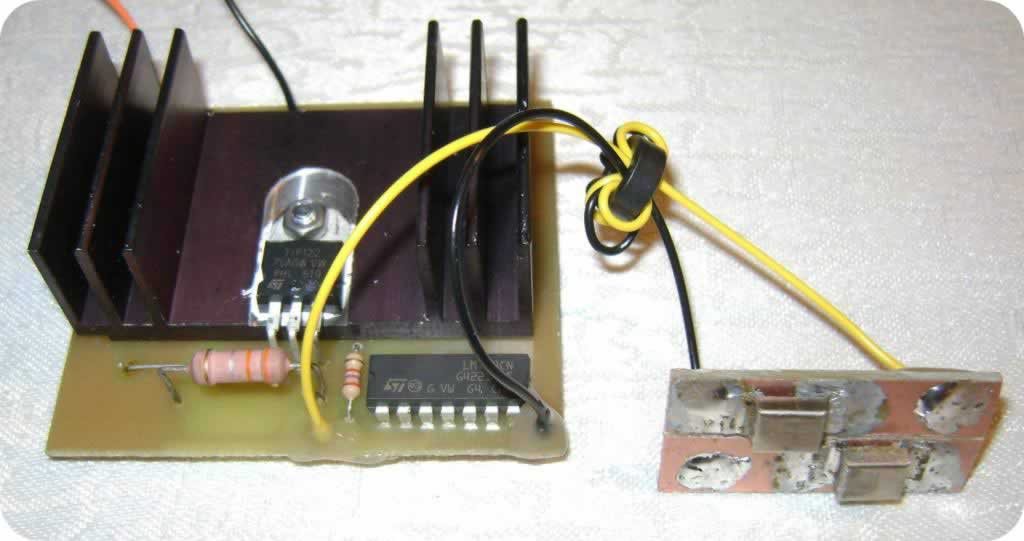

PCB Sprint Layout 6

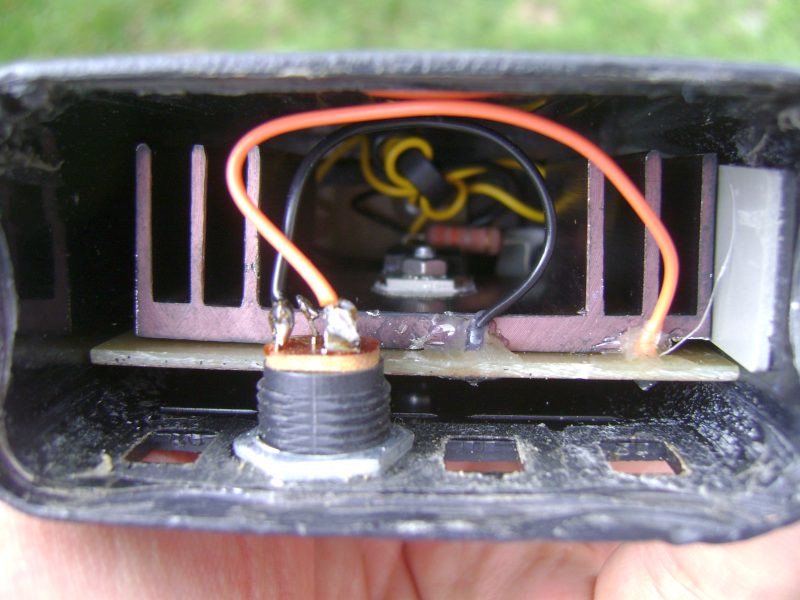

Battery box - inside view

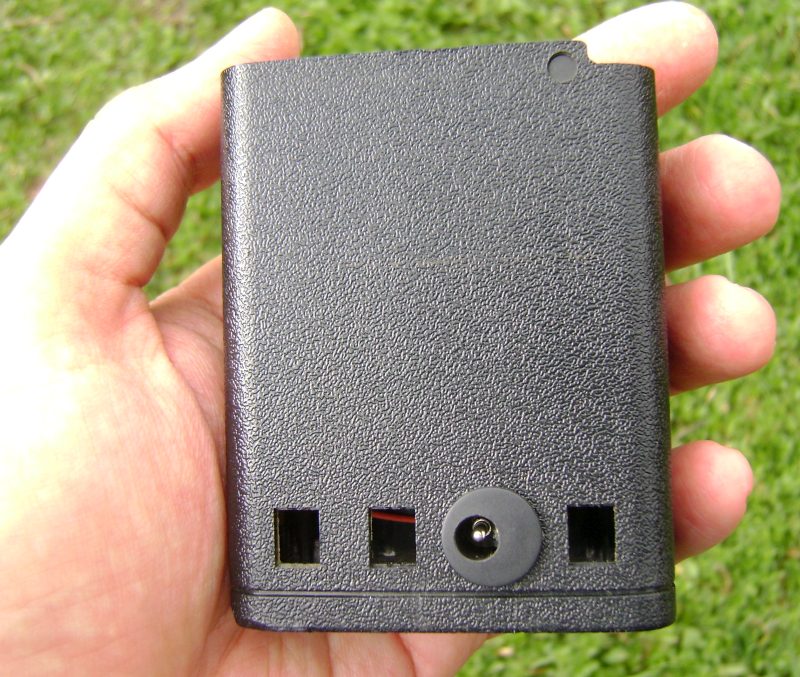

Battery box - outside view
