YO4HFU
GRAPHIC EQUALISER FOR SSB TX

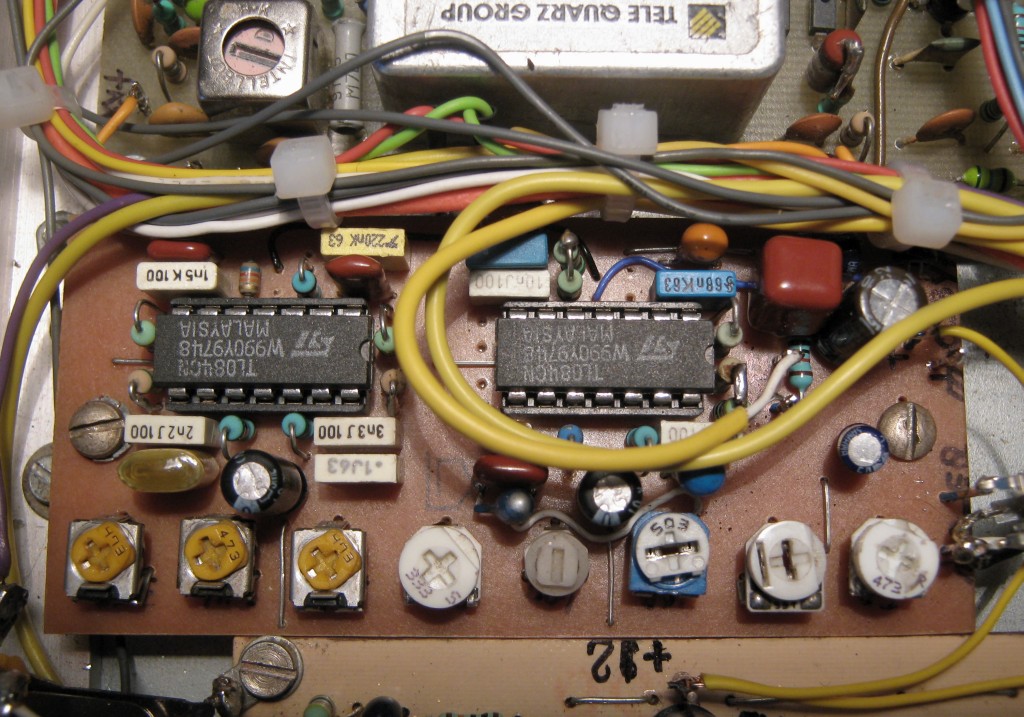

Ajustable Graphic EQ - 8 bands, simple to build, based on O.A. gyrator circuits, good performances.

Audio Graphic Equaliser used to Improve SSB Communications
CLARITY & PRESENCE - 3200, 2400, 1600Hz
WARMTH & NATURALNESS - 800, 400Hz
HEAVINESS & WEIGHT - 200, 100, 50Hz




Schematic
PCB Components Position
PCB 1:1
